9258 Ultra Low Profile Stacker

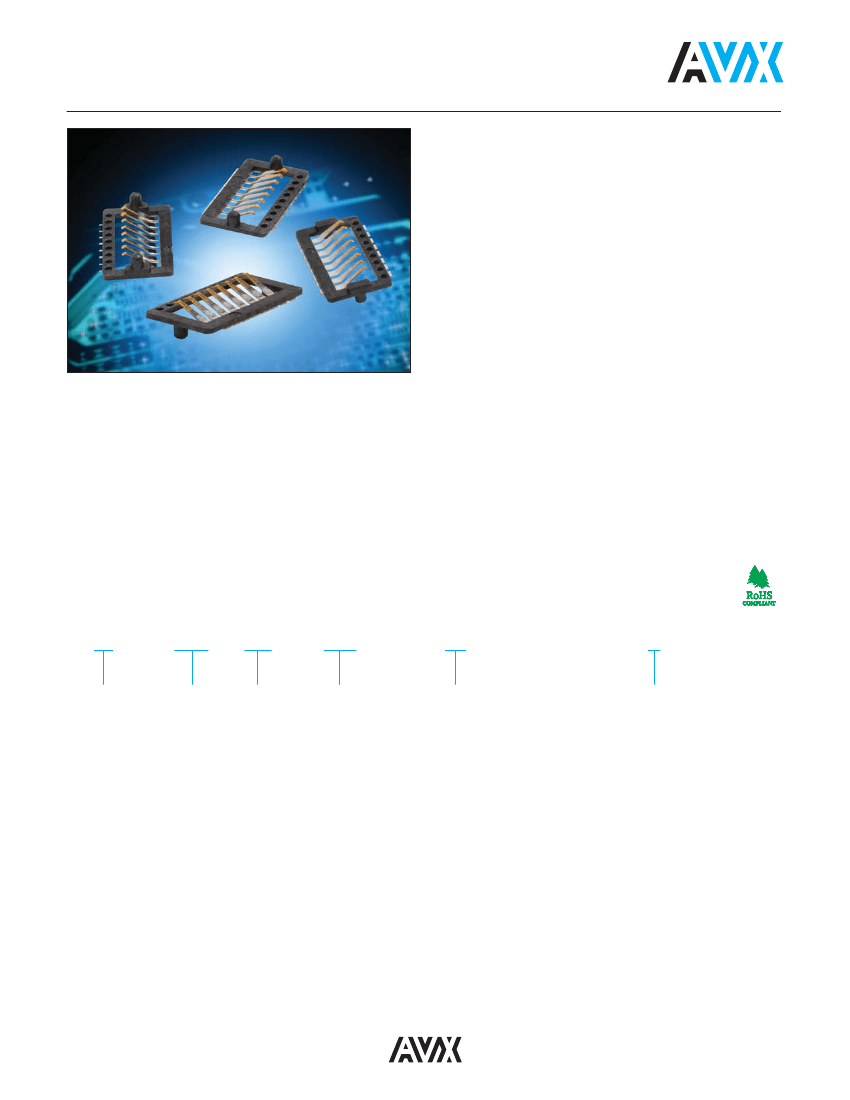

GENERAL DESCRIPTION
The SOLO series 9258 is a one-piece connector used to con-
nect two PCBs in a cost effective manner.
This connector is a 1.0mm pitch available in an 8 position with
stack heights of 0.40mm and 0.80mm. It is available with or
without location bosses.
This connector is designed for PCB surface mounting and is
supplied in tape and reel packaging. Gold plated pads on the
mating PCB or suitable flex circuits provide connection between
the boards.
APPLICATIONS
Suitable applications include:
• Mobile phones
• Handheld scanners
• Portable medical devices
• Display interface
KEY FEATURES AND BENEFITS
Single piece connector – no mating half connector required to
connect two boards together which means:
• Reduced assembly time
• Only one part to purchase and stock
• Due to the unique contact design, the mating device does
not have to be parallel
• Extremely robust when it comes to shock and vibration
HOW TO ORDER
00
9258
008
XXX
06
X
Prefix
00 = Standard
Series
No of
Ways
Stack Height
004 = 0.40mm
008 = 0.80mm
Plating Variation
06 = Selective Gold
0.25µm
Gold Plated
Contact Nose,
Pure Tin Tail
PCB Location Bosses
1 = With Mating PCB Location Bosses (top side)
2 = Without PCB Location Bosses
3 = With SMT PCB Location Bosses (bottom side)
4 = With SMT and Mating PCB Location Bosses
(top and bottom sides)
31

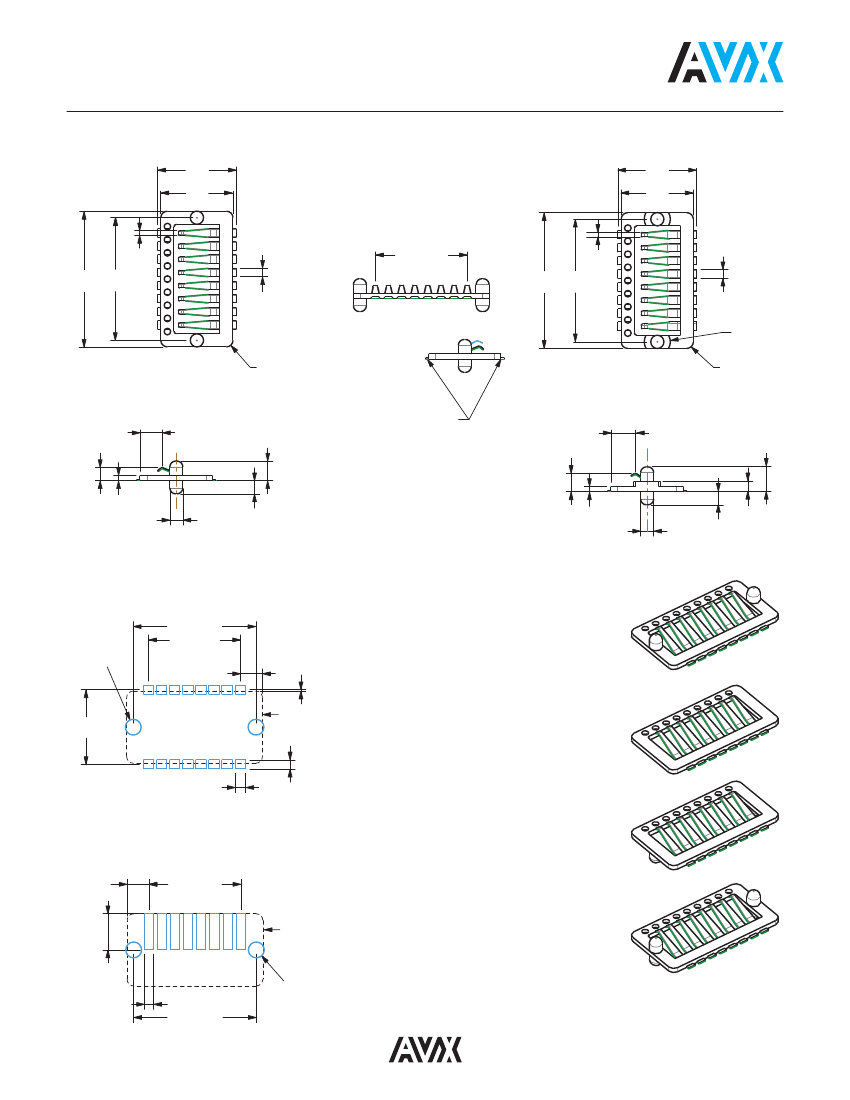

9258 Ultra Low Profile Stacker
0.4mm Ultra Low Profile Stacker
6.00
(0.236)
5.50
(0.217)
0.8mm Ultra Low Profile Stacker
6.00
(0.236)
5.50
(0.217)
0.35
(0.014)
10.35 9.35
(0.407) (0.368)
0.65
(0.026)
7 PITCHES
@ 1.00 = 7.00
(0.039 = 0.276)
0.35
(0.014)
10.35 9.35
(0.407) (0.368)
0.65
(0.026)
Ø2.00
(0.079)
R 0.50 (0.020)
(4 POSITIONS)
R 0.50 (0.020)
(4 POSITIONS)
1.00 - 1.30
(0.039 - 0.051)
1.67 - 0.10
(0.066 - 0.004)
1.50
(0.059)
ALL TAILS TO BE WITHIN
0.10 (0.004) MAXIMUM
COPLANARITY TOLERANCE
1.40 - 1.70
(0.055 - 0.067)
1.85 - 0.10
(0.073 - 0.004)
1.90
(0.075)
0.40
(0.016)
Ø1.00
(0.039)
1.00
(0.039)
0.40
(0.016)
0.80
(0.031)
1.00
Ø1.00 (0.039)
(0.039)
PROPOSED SMT PCB LAYOUT
ALL PADS PURE TIN PLATE
9.35 (0.386)
7 PITCHES
@ 1.00 = 7.00
(0.039 = 0.276)
1.68 (0.066)
Ø1.20
(0.047)
0.10
(0.004)
WITH MATING PCB
LOCATION BOSSES
(TOP SIDE)
5.70
(0.224)
CONNECTOR
OUTLINE
WITHOUT PCB
LOCATION BOSSES
0.80 (0.031)
0.70
(0.028)
PROPOSED MATING PCB LAYOUT
ALL PADS GOLD PLATE
1.68
(0.066)
7 PITCHES
@ 1.00 = 7.00
(0.039 = 0.276)
CONNECTOR
OUTLINE
2.75
(0.108)
0.70 (0.028)
9.35 (0.368)
WITH SMT PCB
LOCATION BOSSES
(BOTTOM SIDE)
