07ZR-8M

Description
Board Connector, 7 Contact(s), 1 Row(s), Female, IDC Terminal, Receptacle,
CategoryThe connector    The connector
File Size217KB,3 Pages
ManufacturerJST
Download Datasheet Parametric View All

07ZR-8M Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, IDC Terminal, Receptacle,

07ZR-8M Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerJST
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN LEAD
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeIDC
Total number of contacts7
UL Flammability Code94V-0
Base Number Matches1

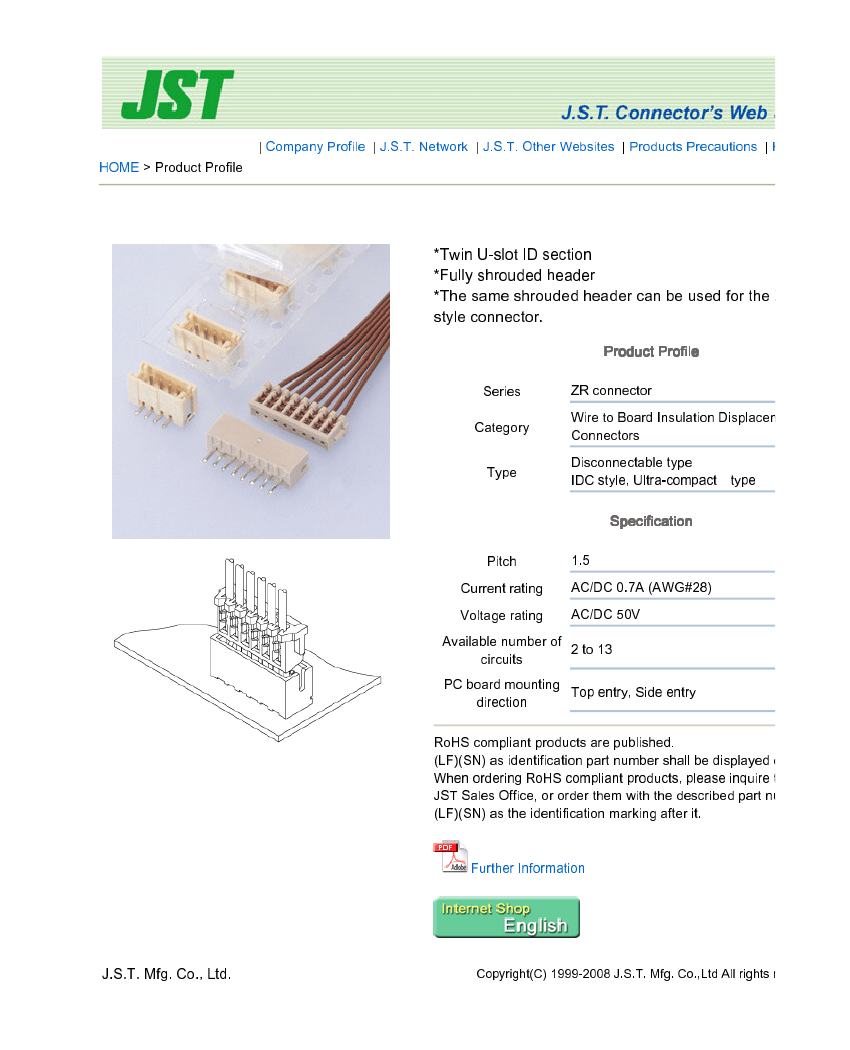

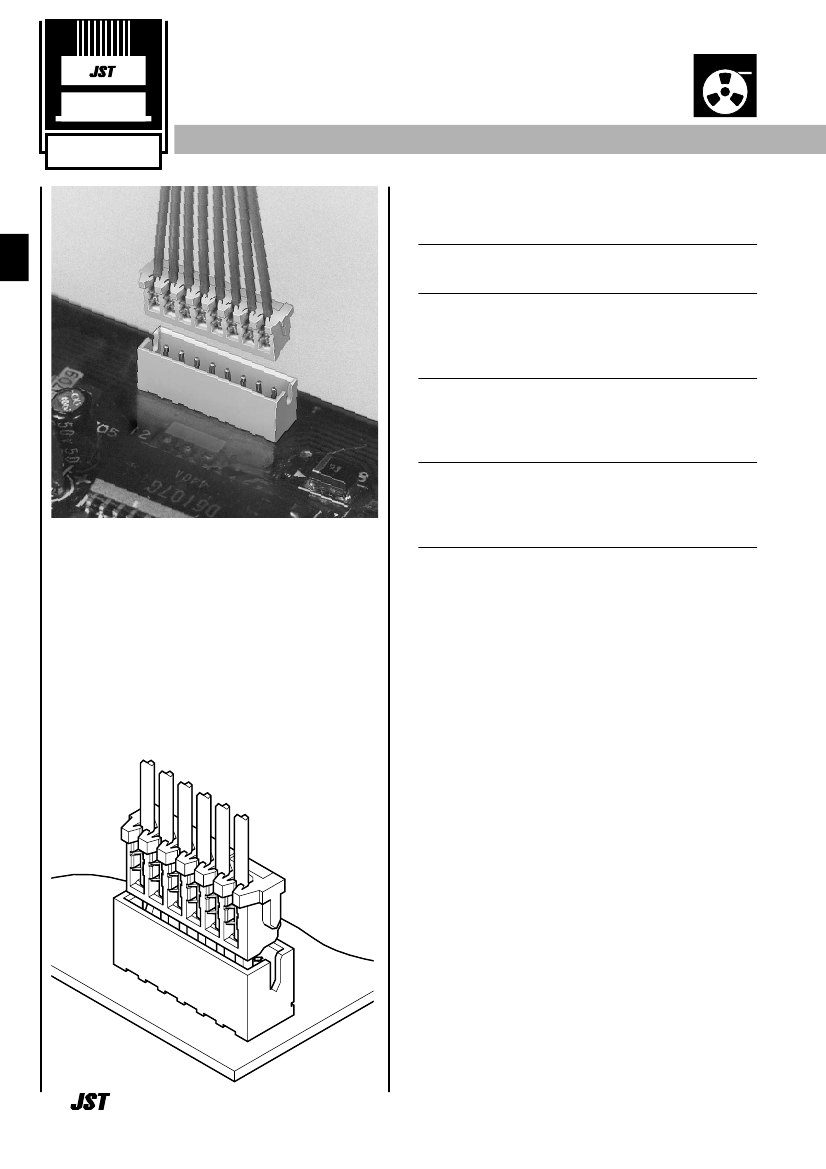

IDC
ZR
CONNECTOR
• Compact
Emboss Tape
1.5mm
(.059") pitch
Disconnectable Insulation displacement connectors
Features ––––––––––––––––––––––––
Only 5.5mm (.217") high and 3.5mm (.138") thick.
• Twin U-slot insulation displacement section
The insulation displacement section connected to each wire
consists of two tin-plated slots (twin U-slots), which ensures
reliable connection.
• 3-point grip construction
The 3-point insulation grip feature and the strain relief ensure a
firm grip on terminated wires and protection of the insulation
displacement connection from possible damage.
• Distortion resistant construction
The header is fully shrouded and thus protects the receptacle
from damage that could be caused by mating the connectors
at an angle or otherwise mismating the connectors.
The twin U-slots (IDC slots), the 3-point
insulation grip, and the distortion resistant
disconnectable construction ensure a reliable
connection even during severe environmental
conditions.
• Compatible with the ZH crimp style connector
The same shrouded header can be used for either the ZR IDC-
type connector or the ZH crimp-style connector. This allows
both types of connector to be used interchangeably without
replacing the header.
Specifications –––––––––––––––––––
• Current rating: 0.7A AC, DC (AWG #28)
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20m
max.
After environmental testing/30m
max.
• Insulation resistance:
500M
min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: UL1571(Contact JST regarding other UL styles.)
AWG #30, #28
Conductor/7 strands, tin-coated
Insulation O.D./0.7 to 0.8mm(.028" to .031")
(Contact JST for diameters greater than
0.8mm(.031").)
• Applicable PC board thickness: 0.6 to 1.2mm(.024" to .047")
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
314
1
2
Certified LR20812
R9351092
