Document 159-1
Chip Inductors – 0805HS Series (2012)
Ceramic body and wire wound construction provide highest
SRFs available in 0805 size. These ultra-compact inductors
provide exceptional Q values, even at high frequencies.
Inductance
2
(nH)
3.3 @ 250 MHz
6.8 @ 250 MHz
8.2 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 250 MHz
39 @ 250 MHz
47 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
120 @ 150 MHz
150 @ 100 MHz
180 @ 100 MHz
220 @ 100 MHz
Free evaluation samples are available by contacting
Coilcraft or ordering them on-line at
www.coilcraft.com.
Part
number
1
Percent
tolerance
3
5
5
5
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2
Q
min
4
SRF min
5
(MHz)
7900
5500
4700
4000
3400
3300
2600
2500
2050
2000
1650
1550
1450
1300
1200
1100
920
870
850
DCR max
6
(Ohms)
0.08
0.11
0.12
0.15
0.17
0.20
0.22
0.25
0.27
0.29
0.31
0.34
0.38
0.42
0.46
0.51
0.56
0.64
0.70
Irms
7
(mA)
600
600
600
600
600
600
500
500
500
500
500
500
500
400
400
400
400
400
400
Color
code
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
0805HS-030T_B_
0805HS-060T_B_
0805HS-080T_B_
0805HS-120T_B_
0805HS-150T_B_
0805HS-180T_B_
0805HS-220T_B_
0805HS-270T_B_
0805HS-330T_B_
0805HS-390T_B_
0805HS-470T_B_
0805HS-560T_B_
0805HS-680T_B_
0805HS-820T_B_
0805HS-101T_B_
0805HS-121T_B_
0805HS-151T_B_
0805HS-181T_B_
0805HS-221T_B_
50 @ 1500 MHz
50 @ 1000 MHz
50 @ 1000 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
55 @ 500 MHz
55 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
60 @ 500 MHz
65 @ 500 MHz
65 @ 500 MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
1. When ordering, please specify
tolerance
and
packaging
codes:
0805HS-221TJBC
= 1%
G
= 2%
J
= 5%
(Table shows stock tolerances in bold.)
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (7500 parts per full reel).
Tolerance: F
Packaging: C
B
D
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP
4286A impedance analyzer with Coilcraft-provided correlation pieces.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
5. SRF measured using an Agilent/HP 8720D network analyzer and a
Coilcraft SMD-D test fixture.
6. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF858 test fixture.
7. Average current for a 15°C rise above 25°C ambient.
8. Operating temperature range
−40°C
to +125°C.
9. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
Specifications subject to change without notice.
Please check our website for latest information.
Document 159-1
Revised 01/03/04
© Coilcraft, Inc. 2005
Document 159-2
0805HS Series (2012)

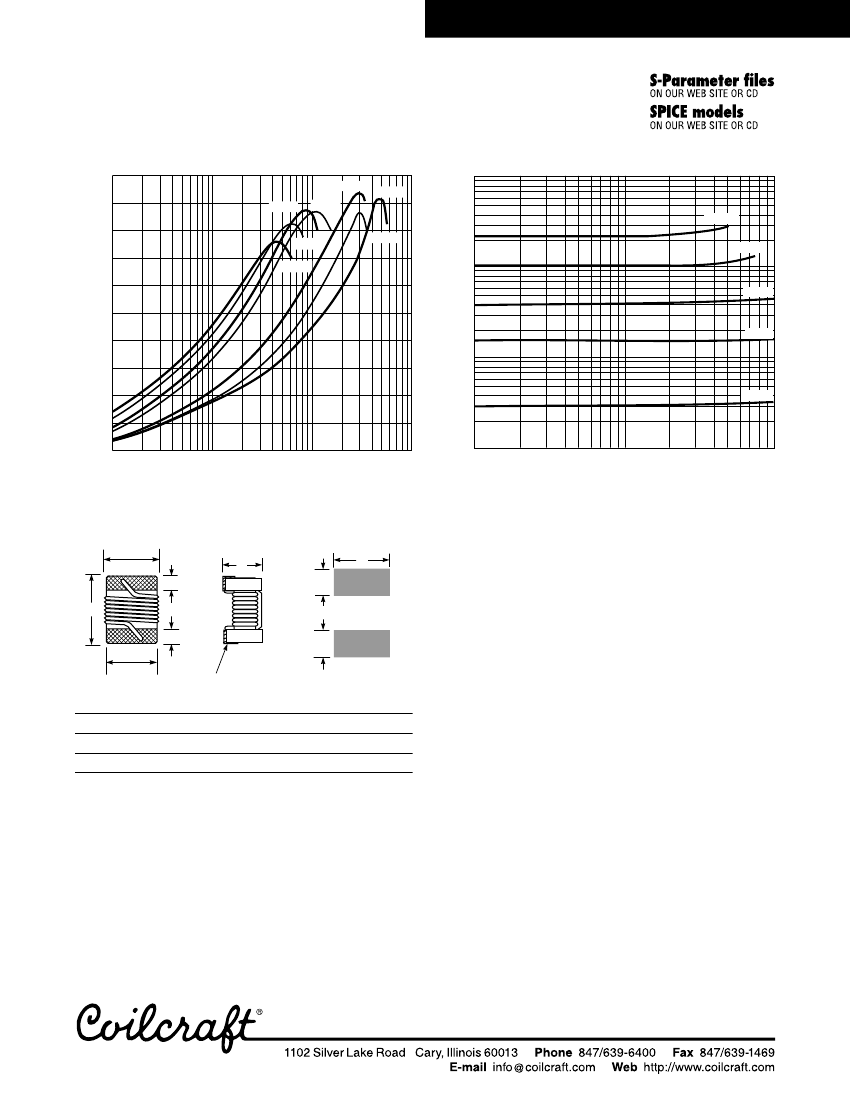

Typical Q vs Frequency
100
90
80
68 nH
70
60
50
40
30
20
10
0
10
100
1000
10000
120 nH
39 nH
12 nH
22 nH
3.3 nH
Typical L vs Frequency
1000
220 nH
6.8 nH
100 nH
Inductance (nH)
100
39 nH
Q Factor
15 nH
10
3.3 nH
1
10
100
1000
Frequency (MHz)
Frequency (MHz)
B
overall
F
A
G
F
E
terminal
C
I
J
I
H
Terminal wraparound:
approx 0.015/0,38 both ends
Recommended
Land Pattern
G
H
0.070
1,78
I
0.040
1,02
J
0.030
0,76
A max
0.085
2,16
B max
0.060
1,52
C max
0.057
1,45
E
0.050
1,27
F
0.020
0,51
0.040
1,02
Weight:
9.8 – 10.9 mg
Terminations:
Silver-palladium-platinum
Tape and reel:
2000/7″ reel; 7500/13″ reel 8 mm tape width
For packaging data see Tape and Reel Specifications section.
Specifications subject to change without notice.
Please check our website for latest information.
Document 159-2
Revised 12/28/04
© Coilcraft, Inc. 2005
