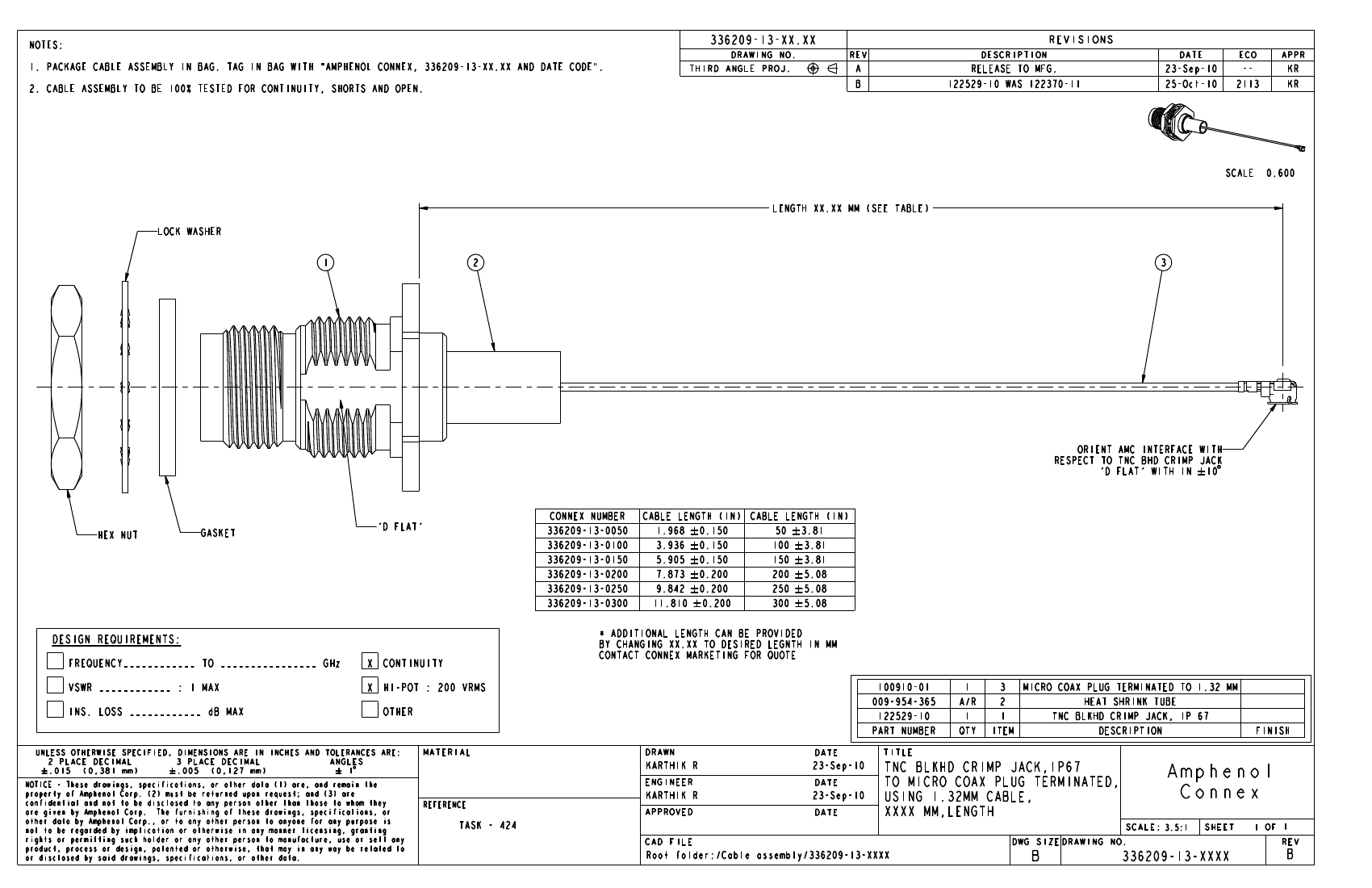

NOTES:
1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,
2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.
336209-13-XX.XX AND DATE CODE".
336209-13-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
B
RELEASE TO MFG.
122529-10 WAS 122370-11
23-Sep-10
25-Oct-10
--
2113
KR
KR
SCALE
0.600
LENGTH XX.XX MM (SEE TABLE)
LOCK WASHER
1
2
3
ORIENT AMC INTERFACE WITH
RESPECT TO TNC BHD CRIMP JACK
'D FLAT' WITH IN #10$
CONNEX NUMBER
HEX NUT
GASKET
'D FLAT'
336209-13-0050
336209-13-0100
336209-13-0150
336209-13-0200
336209-13-0250
336209-13-0300
CABLE LENGTH (IN)
1.968
3.936
5.905
7.873
9.842
11.810
#
0.150
#
0.150
#
0.150
#
0.200
#
0.200
#
0.200
CABLE LENGTH (IN)
50
100
150
200
250
300
#
3.81
#
3.81
#
3.81
#
5.08
#
5.08
#
5.08
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 200 VRMS
OTHER
* ADDITIONAL LENGTH CAN BE PROVIDED
BY CHANGING XX.XX TO DESIRED LEGNTH IN MM
CONTACT CONNEX MARKETING FOR QUOTE
100910-01
009-954-365
122529-10
PART NUMBER
1
A/R
1
QTY
3
2
1
ITEM
MICRO COAX PLUG TERMINATED TO 1.32 MM
HEAT SHRINK TUBE
TNC BLKHD CRIMP JACK, IP 67
DESCRIPTION
FINISH
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#
.015 (0,381 mm)
#
.005 (0,127 mm)
#1 $
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
DATE
TITLE
KARTHIK R
ENGINEER
REFERENCE
23-Sep-10
DATE
KARTHIK R
APPROVED
23-Sep-10
DATE
TNC BLKHD CRIMP JACK,IP67
TO MICRO COAX PLUG TERMINATED,
USING 1.32MM CABLE,
XXXX MM,LENGTH
SCALE:
DWG SIZE
DRAWING NO.
Amphenol
Connex
3.5:1
SHEET
OF
1
1
REV
TASK - 424
CAD FILE
Root folder:/Cable assembly/336209-13-XXXX
B
336209-13-XXXX
B
