503091030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 503091030

503091030: DescriptionSwitch, SPST, Maintained, 0.1A, 50VDC, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size196KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

503091030 Overview

Switch, SPST, Maintained, 0.1A, 50VDC, Through Hole-right Angle

503091030 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
Is Samacsys	N
Actuator angle
Actuator length	0.051 inch
Actuator material	THERMOPLASTIC
Actuator type	SLIDE
body width	9.906 mm
Body color	BLACK
body height	8.8138 mm
Body length or diameter	23.8506 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@50VDC
Contact resistance	0.05 mΩ
contact time	TWO STEP
Maximum contact voltage (DC)	50 V
Dielectric withstand voltage	500VAC V
Electrical life	2000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL
Shell material	THERMOPLASTIC
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	503
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	9
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Solderability	WAVE
surface mount	NO
Switch action	MAINTAINED
switch function	SPST
Terminal length	0.114 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

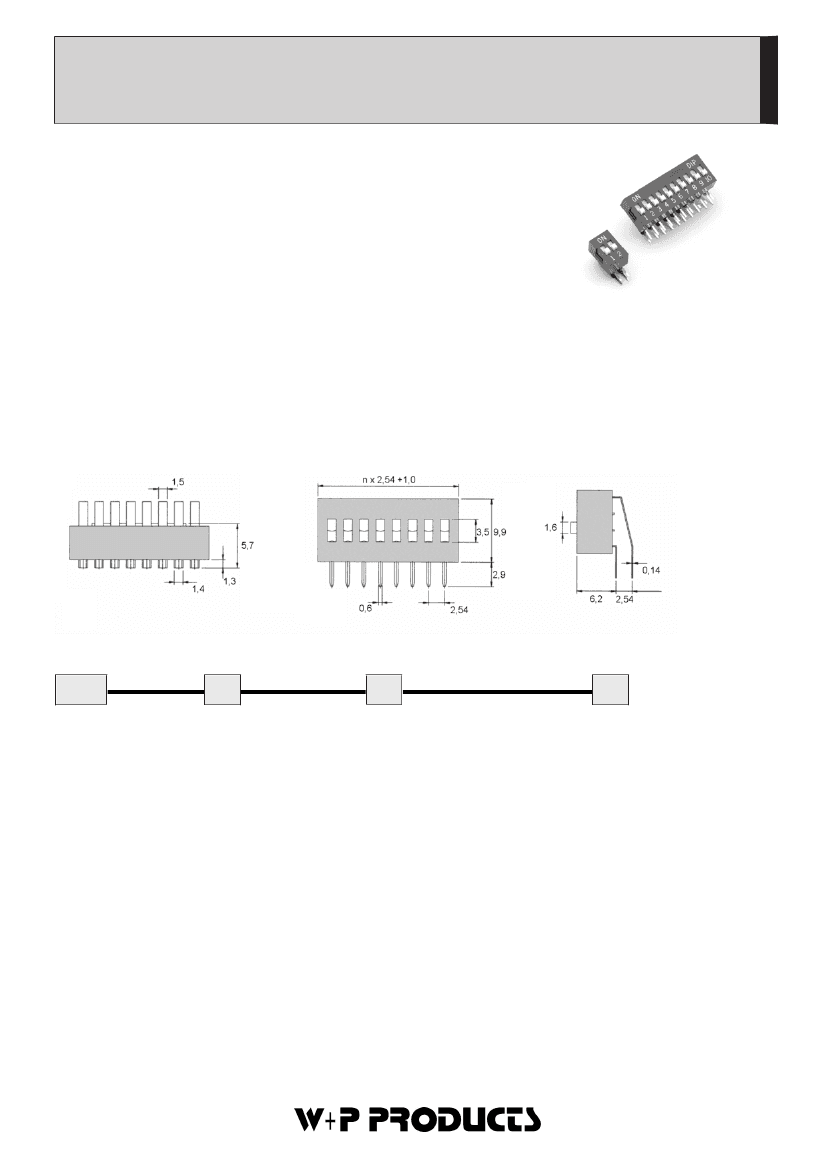

503

DIP-Schalter - gewinkelt

DIP-Switch - Right-Angled

Technische Daten /Technical

Data

Gehäuse/Abdeckung/Hebel

Thermoplastischer Kunststoff, nach UL94 V-0

Case/Cover/Actuator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Phosphorbronze, vergoldet über Nickel

Contact Material

Phosphor bronze, gold plated over nickel

Kontaktbelastbarkeit

50V

, 100mA in Ruhe

24V

, 24mA im Schaltzustand

Contact Rating

50V

, 100mA in steady situation

24V

, 24mA at mate and break

Durchgangswiderstand

< 50mΩ im Auslieferungszustand

Contact Resistance

< 50mΩ at initial state

Isolationswiderstand

> 10

Ω

bei 500V

Insulation Resistance

> 10

Ω

bei 500V

Spannungsfestigkeit

500V

@ 1min

Test Voltage

500V

@ 1min

Temperaturbereich

-20°C ... +70°C

Temperature Range

-20°C ... +70°C

Elektrische Lebensdauer

min. 2000 Schaltungen/Schalter

Electrical Life

min. 2000 operations/switch

Mechanische Lebensdauer

min. 2000 Schaltungen/Schalter

Mechanical Life

min. 2000 operations/switch

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Series

Circuits

Actuator

Colour

503

02/03/04/05/06/

07/08/09/10/12

Hoher Hebel

Raised actuator

Rot

Red

Blau

Blue

Schwarz

Black

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)
