803-1710-0331-504: DescriptionSingle Color LED, Red, T-3 1/4,; CategoryLED optoelectronic/LED photoelectric; File Size50KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

803-1710-0331-504 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	803-1710-0331-504	-	-	View	Buy Now

803-1710-0331-504 Overview

Single Color LED, Red, T-3 1/4,

803-1710-0331-504 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
color	RED
Configuration	SINGLE
JESD-609 code	e0
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	3
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	CYLINDRICAL
surface mount	NO
T code	T-3 1/4
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

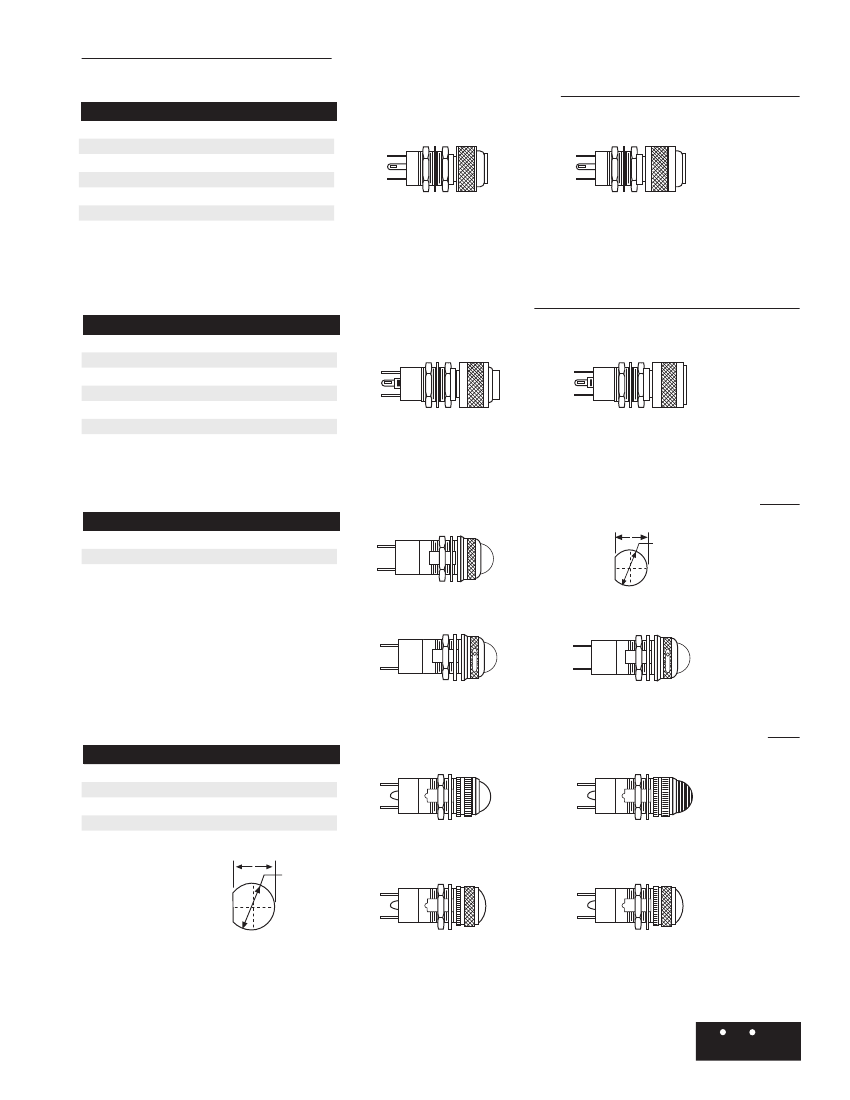

MILITARY PANEL MOUNT INDICATORS

ALL INDICATORS MEET OR EXCEED

MILITARY SPECIFICATION MIL-L-3661B

800 & 801 SERIES FOR 15/32" MOUNTING HOLE

PART NO.

800-1030-0331-504

800-1030-0332-504

800-1030-0333-504

801-1030-0331-504

801-1030-0332-504

801-1030-0333-504

MIL DESIG.

MS25041-6

MS25041-7

MS25041-8

MS25041-2

MS25041-3

MS25041-4

COLOR FIG.

Fig. 1

Fig. 2

Uses:

T-1 3/4 MIDGET

FLANGE BASE

INCANDESCENT LAMP

OR BASED LED LAMP

FLAT PRESS-TO-TEST WITH

NON DIMMING LENS CAP

FLAT PRESS-TO-TEST WITH

DIMMING LENS CAP

803 & 804 SERIES FOR 5/8" MOUNTING HOLE

PART NO.

803-1710-0331-504

803-1710-0332-504

803-1710-0333-504

804-1710-0331-504

804-1710-0332-504

804-1710-0333-504

MIL DESIG.

MS25331-6

MS25331-7

MS25331-8

MS25331-2

MS25331-3

MS25331-4

COLOR FIG.

Fig. 3

Fig. 4

Uses:

T-3 1/4 MINIATURE

BAYONET BASE

INCANDESCENT LAMP

FLAT PRESS-TO-TEST WITH

NON DIMMING LENS CAP

FLAT PRESS-TO-TEST WITH

DIMMING LENS CAP

373, 375 & 376 SERIES FOR 11/16" MOUNTING HOLE • WATERTIGHT

PART NO.*

373-0410-0131-203

375-0410-0131-203

376-0410-0131-203

MIL DESIG.

COLOR FIG.

Fig. 5

LH76/3, LC14RN3

LH76/3, LC17RN3

LH76/3, LC18RN3

CONVEX, TRANSPARENT

LENS CAP

Uses:

T-3 1/4

17.55 [.691]

MINIATURE

DIA

BAYONET

BASE

INCANDESCENT

LAMP OR BASED

RECOMMENDED

LED LAMP

PANEL CUTOUT

DIMMER TYPES

16.76

[.660]

Fig. 6

Fig. 7

CONVEX TRANSPARENT

COMPLETE BLACKOUT LENS CAP

CONVEX TRANSPARENT

SEMI BLACKOUT LENS CAP

378, 379, 380 & 381 SERIES FOR 1" MOUNTING HOLE • WATERTIGHT

PART NO.*

378-3402-0131-203

379-3402-0531-203

380-3402-0131-203

381-3402-0131-203

MIL DESIG.

COLOR FIG.

Fig. 8

Fig. 9

LH80/1, LC21RN3

LH80/1, LC22RN3

LH80/1, LC23RN3

LH80/1, LC24RN3

24.56

[.967]

Uses:

S-6 DOUBLE

CONTACT

BAYONET BASE

INCANDESCENT

LAMP

CONVEX TRANSPARENT

LENS CAP

TORPEDO TRANSPARENT

LENS CAP

DIMMER TYPES

Fig. 10

25.48 [1.003]

DIA

Fig. 11

RECOMMENDED

PANEL CUTOUT

CONVEX TRANSPARENT

COMPLETE BLACKOUT LENS CAP

CONVEX TRANSPARENT

SEMI BLACKOUT LENS CAP

* Cap and bases ordered separately; for complete military

part number listing, please see military index on Pages 32 & 33

Neon and incandescent lamp information on Pages 35 and 36.

Based LED lamp information on Pages 37 through 40.

Dimensions in mm [inches]

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com
