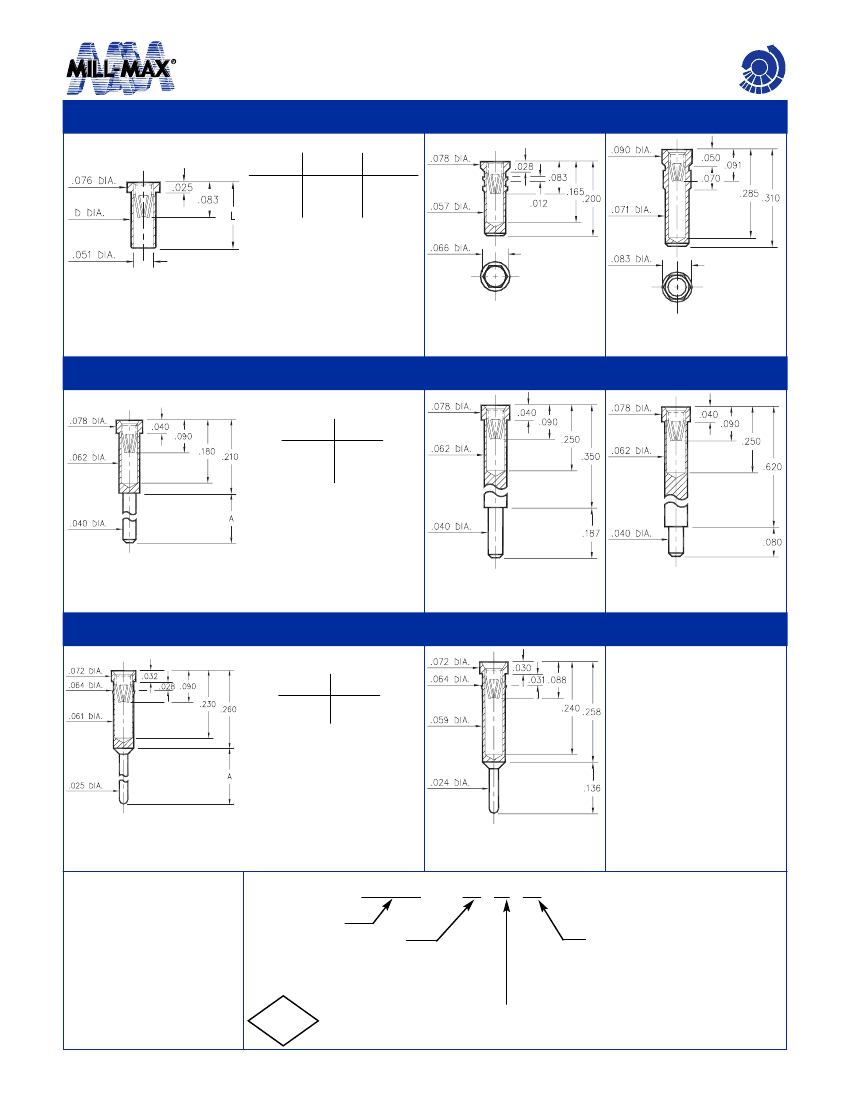

PIN RECEPTACLES
for .025” - .037” diameter pins
and .025” square pins
PR
E
CI
M
ON
S
I
CHI
A
PINS
NE
D
0305
Basic Part
Number
Length
L
Dia.
D
0279
0305-0
0305-1
0305-2
.095
.105
.155
.056
.058
.058
0330
0305-X-15-XX-47-XX-10-0
Solder mount in .059/.061 mounting hole
Also available on 24mm wide carrier
tape: 1,500 parts per 13” reel.
Order as: 0305-2-57-XX-47-XX-10-0
0279-0-15-XX-47-XX-10-0
Hex press-fit in .062
plated thru hole
0330-0-15-XX-47-XX-10-0
Hex press-fit in .079
plated thru hole
0300/8300
Basic Part
Number
Length
A
0301
0300-1
0300-2
8300-0
.110
.187
.140
0309
X300-X-15-XX-47-XX-10-0
Solder mount in .042 min.
mounting hole
0301-1-15-XX-47-XX-10-0
Solder mount in .042 min.
mounting hole
0309-2-15-XX-47-XX-10-0
Solder mount in .042 min.
mounting hole
0399
Basic Part
Number
Length
A
1304
0399-0
0399-1
.230
.180
0399-X-15-XX-47-XX-04-0
Press-fit in .061 mounting hole
1304-0-15-XX-47-XX-04-0
Press-fit in .061 mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 15 - XX - 47 - XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL
15
10μ” GOLD OVER NICKEL
RoHS
SPECIFY CONTACT FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL
27
30μ” GOLD OVER NICKEL
2002/95/EC
CONTACT
#47
CONTACT (DATA ON PAGE 221)
w w w. m i l l - m a x . c o m
148
516-922-6000
