DS1003-16 datasheet, PDF - EEWORLD Datasheet

DS1003-16: DescriptionSilicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, DIE; Categorylogic logic; File Size178KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

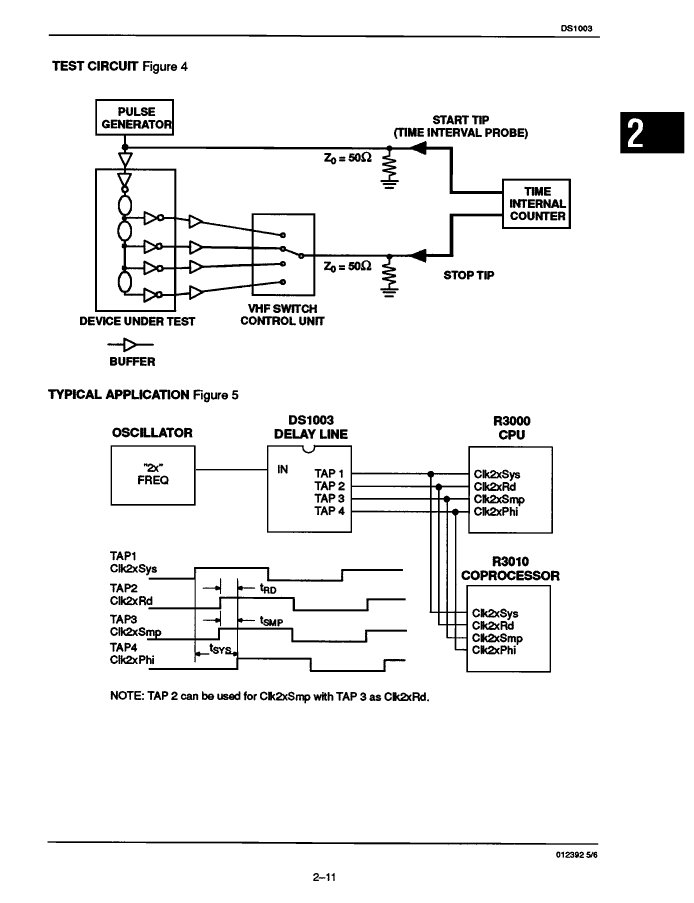

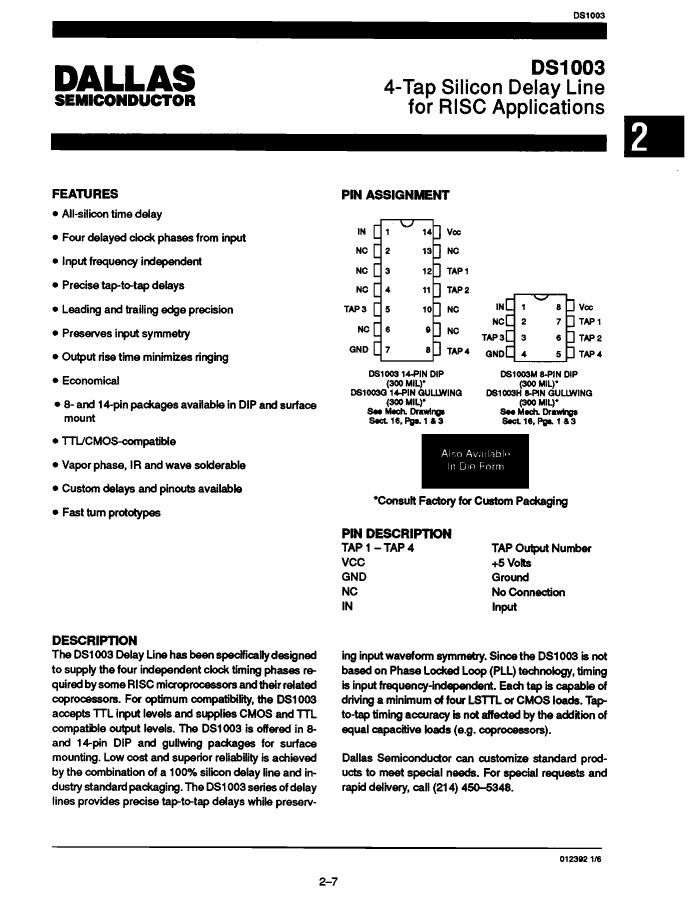

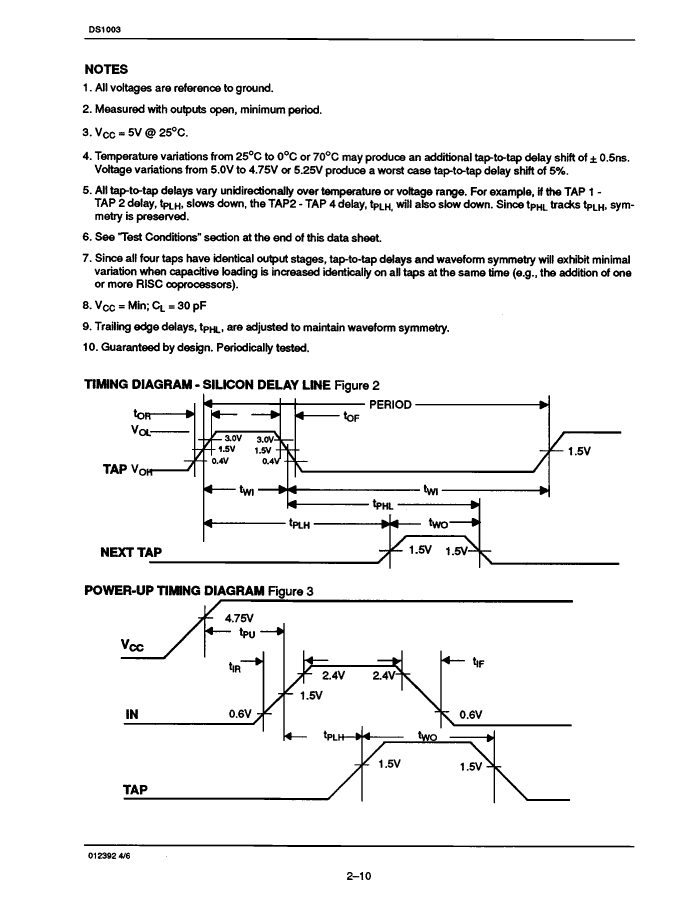

DS1003-16 Overview

Silicon Delay Line, 1-Func, 4-Tap, True Output, CMOS, DIE

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIE
package instruction	DIE
Reach Compliance Code	not_compliant
Is Samacsys	N

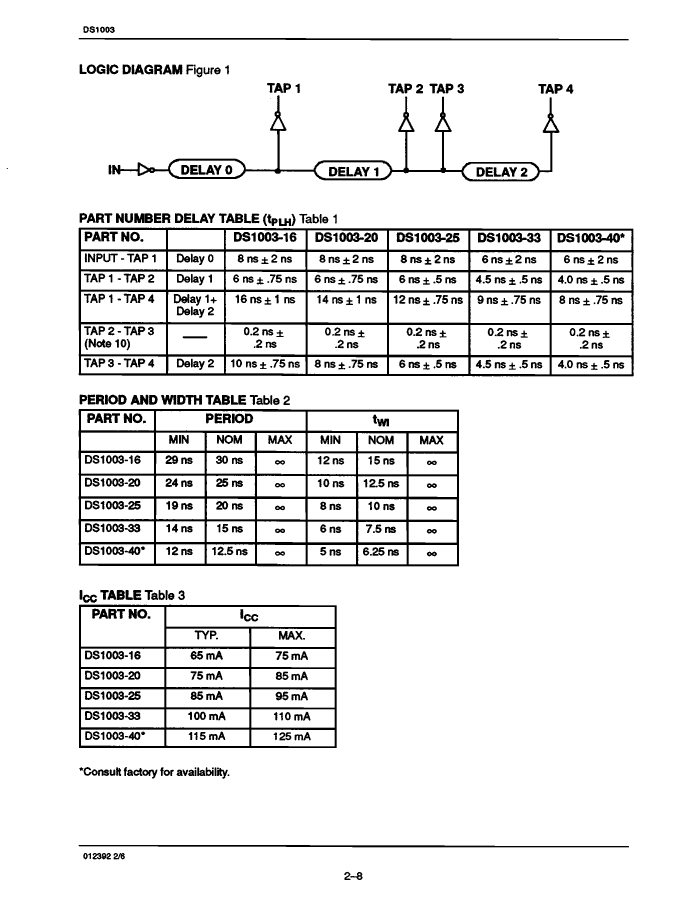

Other features	DELAY FROM INPUT TO 4 TAPS[NS] = 8,14,14.2,24.2; MAX FAN OUT OF 4 LSTTL/CMOS LOAD PER OUTPUT
series	CMOS/TTL
Input frequency maximum value (fmax)	34.48 MHz
JESD-30 code	X-XUUC-N
JESD-609 code	e0
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	1
Number of taps/steps	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIP14,.3
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

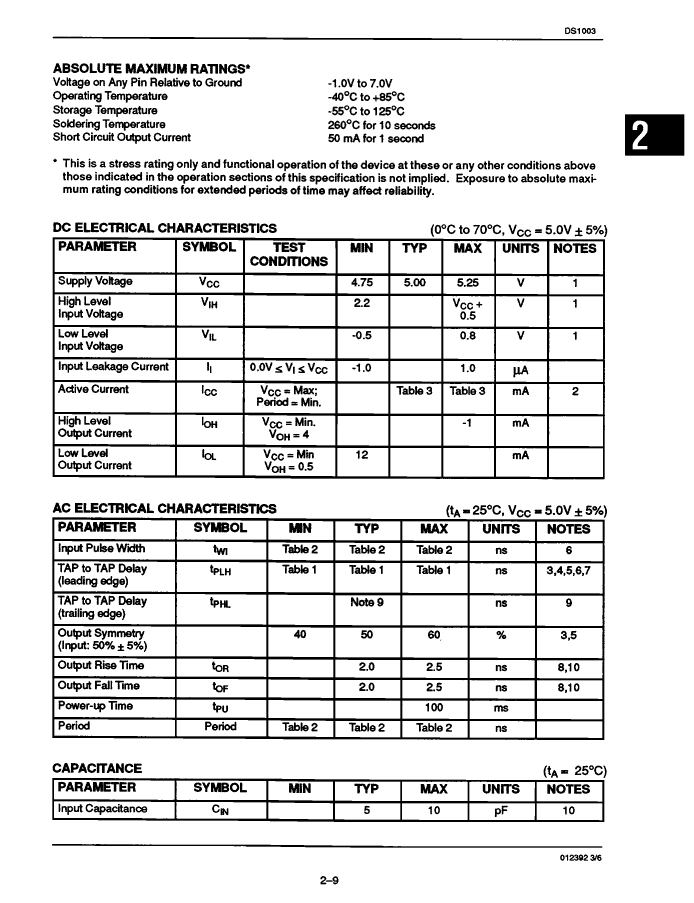

power supply	5 V
Maximum supply current (ICC)	75 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	24 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	2.54 mm
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	24.2 ns
Base Number Matches	1
