DS1543P-70 datasheet, PDF - EEWORLD Datasheet

DS1543P-70: DescriptionReal Time Clock, Non-Volatile, 0 Timer(s), CMOS, POWERCAP-34; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，20 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric View All

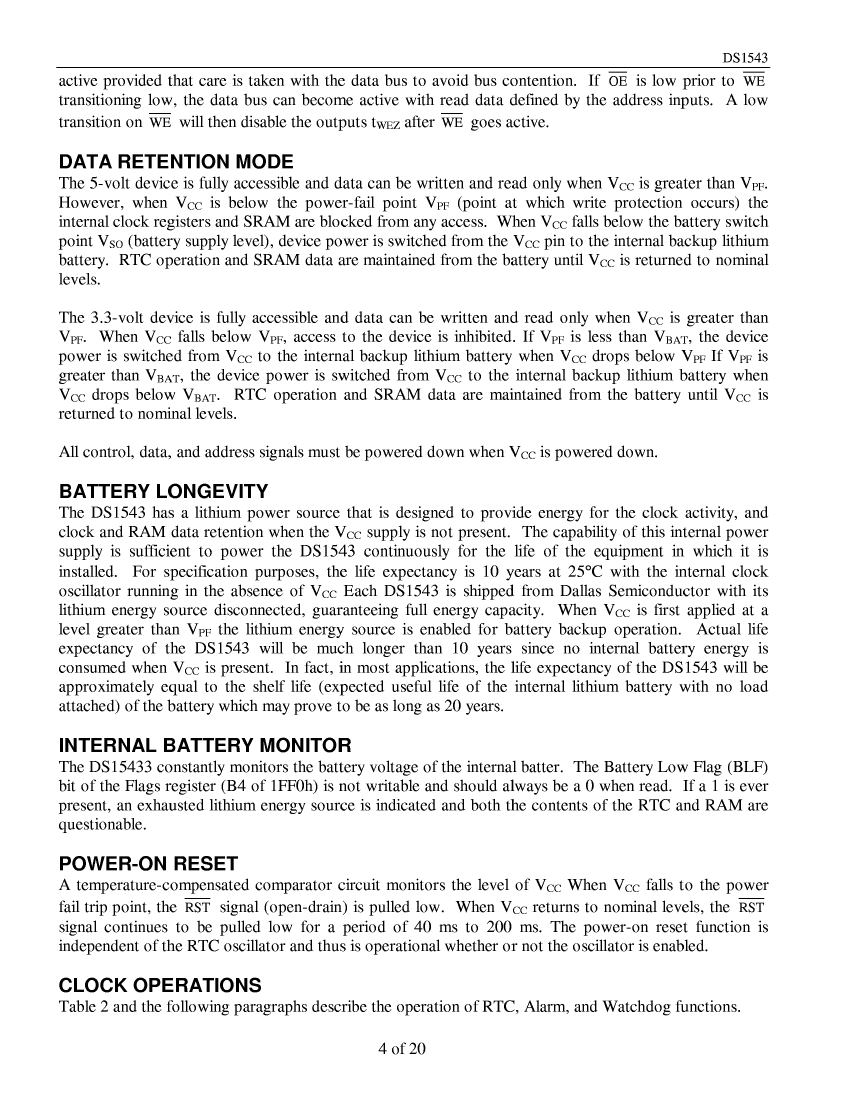

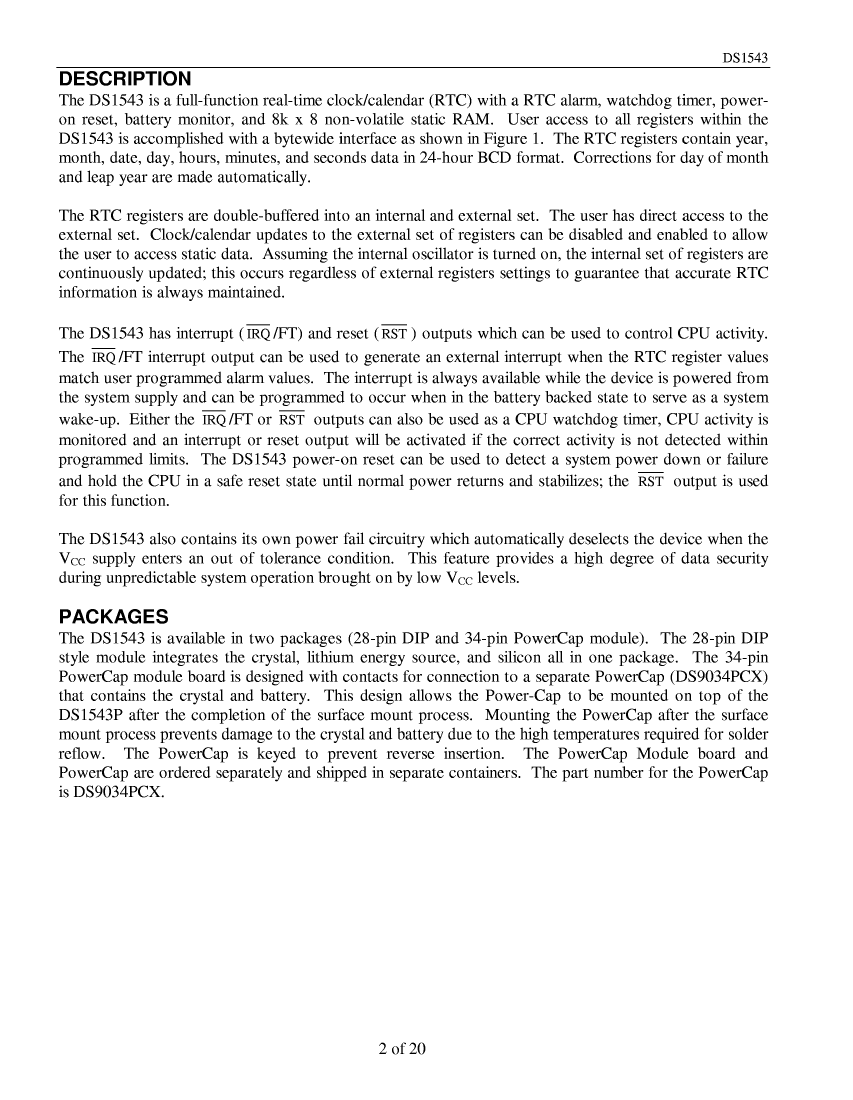

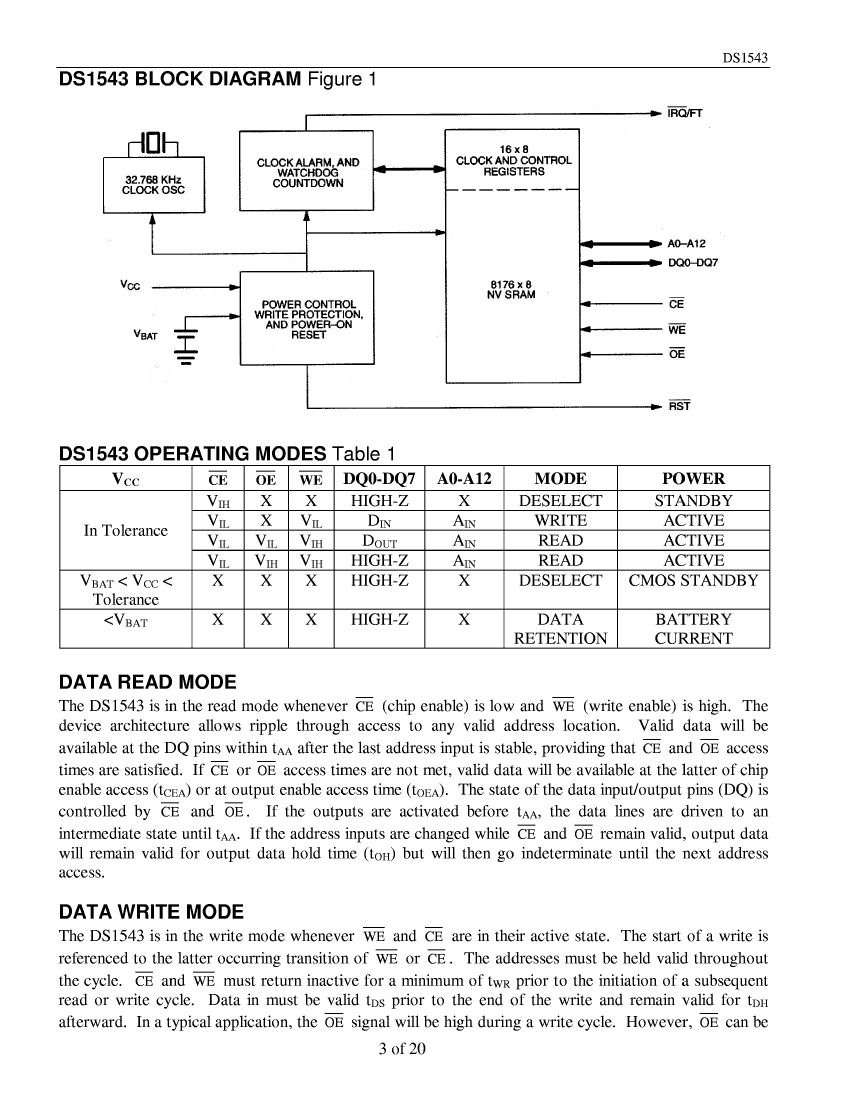

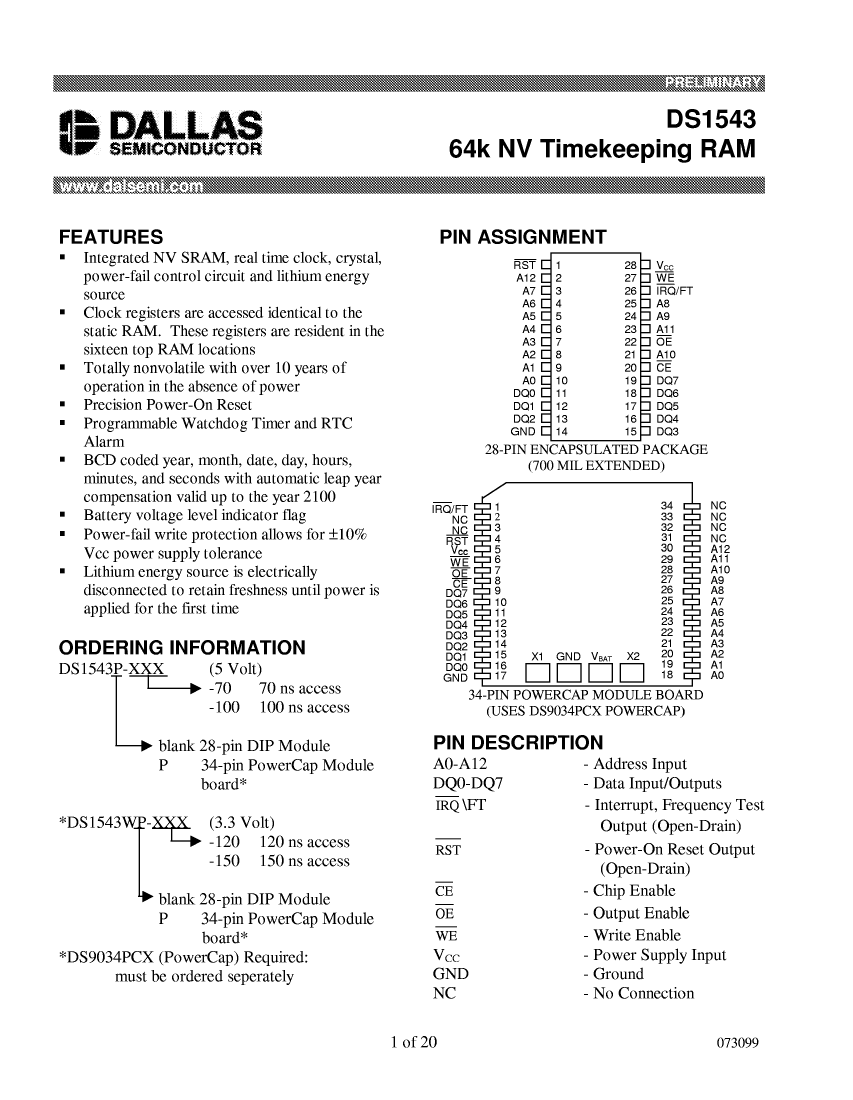

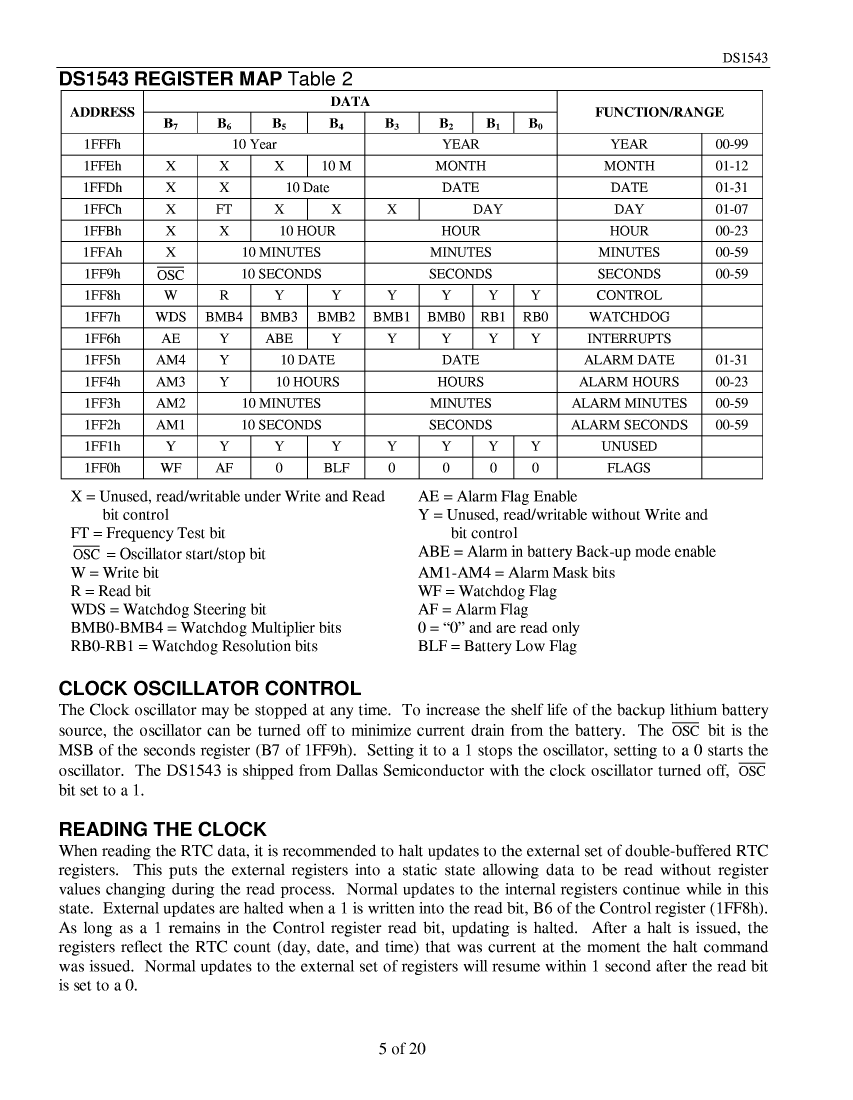

DS1543P-70 Overview

Real Time Clock, Non-Volatile, 0 Timer(s), CMOS, POWERCAP-34

Parameter Name	Attribute value
Maker	DALLAS
package instruction	POWERCAP-34
Reach Compliance Code	unknown
Is Samacsys	N
maximum clock frequency	14.285 MHz
External data bus width	8
Information access methods	PARALLEL, DIRECT ADDRESS
interrupt capability	Y
JESD-30 code	R-XDMA-N34
Number of terminals	34
Number of timers
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,34LEAD,1.0
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL
shortest time	SECONDS
Volatile	NO
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK
Base Number Matches	1
