82-816-1000 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 82-816-1000

Preview

82-816-1000: DescriptionRF connectors / coaxial connectors ST plug RG-108a 50 ohm; CategoryThe connector; File Size53KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

82-816-1000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82-816-1000	-	-	View	Buy Now

82-816-1000 Overview

RF connectors / coaxial connectors ST plug RG-108a 50 ohm

82-816-1000 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	HN
Gende	Plug
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	4 GHz
Body Material	Brass
Body Finish	Silve
Contact Material	Brass
Contact Plating	Silve
Contact Terminati	Solde
Mounting Type	-
Termination Style	Cable - Clam
Coupling Mechanism	Threaded
Orientati	Straigh
Mating Cycles	500
Operating Temperature Range	- 55 C to + 85 C

Preview

Download Datasheet

View All

HN

Plugs & Jacks

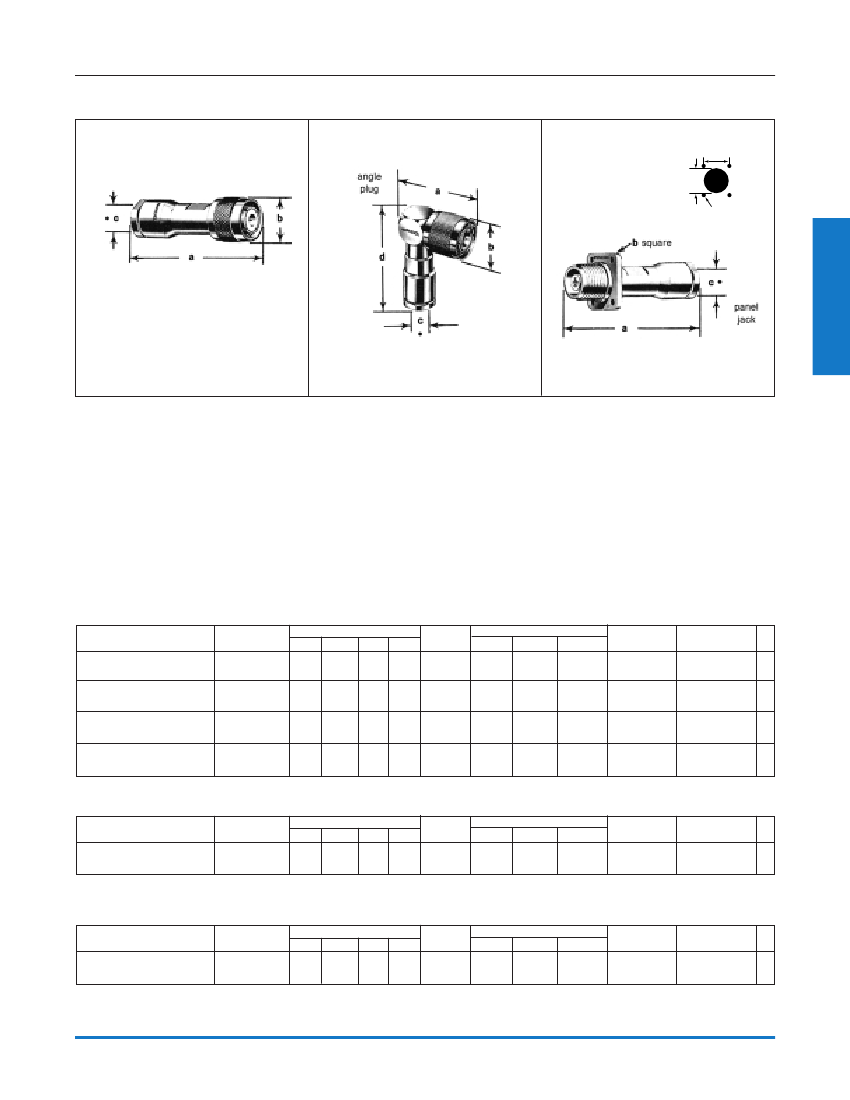

Fig. 1

Fig. 2

Fig. 3

Amphenol

®

U

.906(23.0)

.750(19.1)

.125(3.2)

dia. 4 holes

C, HN, SC

Straight Plug

16750

82-804

82-38

82-816-1000

Angle Plug

82-856

Panel Jack

82-324

STRAIGHT PLUGS

Description

58, 141, 142

8, 9, 213, 214

54A

8, 9, 87A, 213, 214, 225

Cable

Termination

TYP-Clamp

Dimensions, in. (mm)

a

b

c

d

1.81

(46.0)

2.38

(60.3)

1.81

(46.0)

2.38

(60.3)

.844 .214

(21.4) (5.4)

.875 .444

(22.2) (11.3)

.875 .257

(22.2) (6.5)

.875 .444

(22.2) (11.3)

—

MTG

Hole

—

Construction Notes

CAI

Plt.

Ins.

C18

C20

C18

C17

P1

P4

P1

D1

D6

D1

Military

Number

—

UG-59A

—

UG-59B

Amphenol

Number

16750

82-38

82-816-1000

82-804

Fig

1

C

1

ANGLE PLUG

Description

8, 9 87A, 213, 214, 225

Cable

Termination

TYP-Clamp

Dimensions, in. (mm)

a

b

c

d

1.50

(38.1)

.875 .444 2.31

(22.2) (11.3) (58.7)

MTG

Hole

—

Construction Notes

CAI

Plt.

Ins.

C17

P1

D1

Military

Number

—

Amphenol

Number

82-856

Fig

2

PANEL JACKS

Description

8, 9 87A, 213, 214, 225

Cable

Termination

C.C.-Clamp

Dimensions, in. (mm)

a

b

c

d

2.94

(74.6)

1.19 .444

(30.2) (11.3)

—

MTG

Hole

U

Construction Notes

CAI

Plt.

Ins.

C17

P1

D1

Military

Number

UG-1215

Amphenol

Number

82-324

Fig

3

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com
