LCHF0402-3N3G datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> LCHF0402-3N3G

Preview

LCHF0402-3N3G: DescriptionGeneral Purpose Inductor, 0.0033uH, 2%, 1 Element, SMD; CategoryPassive components inductor; File Size14KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric View All

LCHF0402-3N3G Overview

General Purpose Inductor, 0.0033uH, 2%, 1 Element, SMD

LCHF0402-3N3G Parametric

Parameter Name	Attribute value
Maker	Inductor Supply Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
DC Resistance	0.19 Ω
Nominal inductance(L)	0.0033 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LCHF0402
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.3 A
self resonant frequency	8000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	MULTILAYER
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

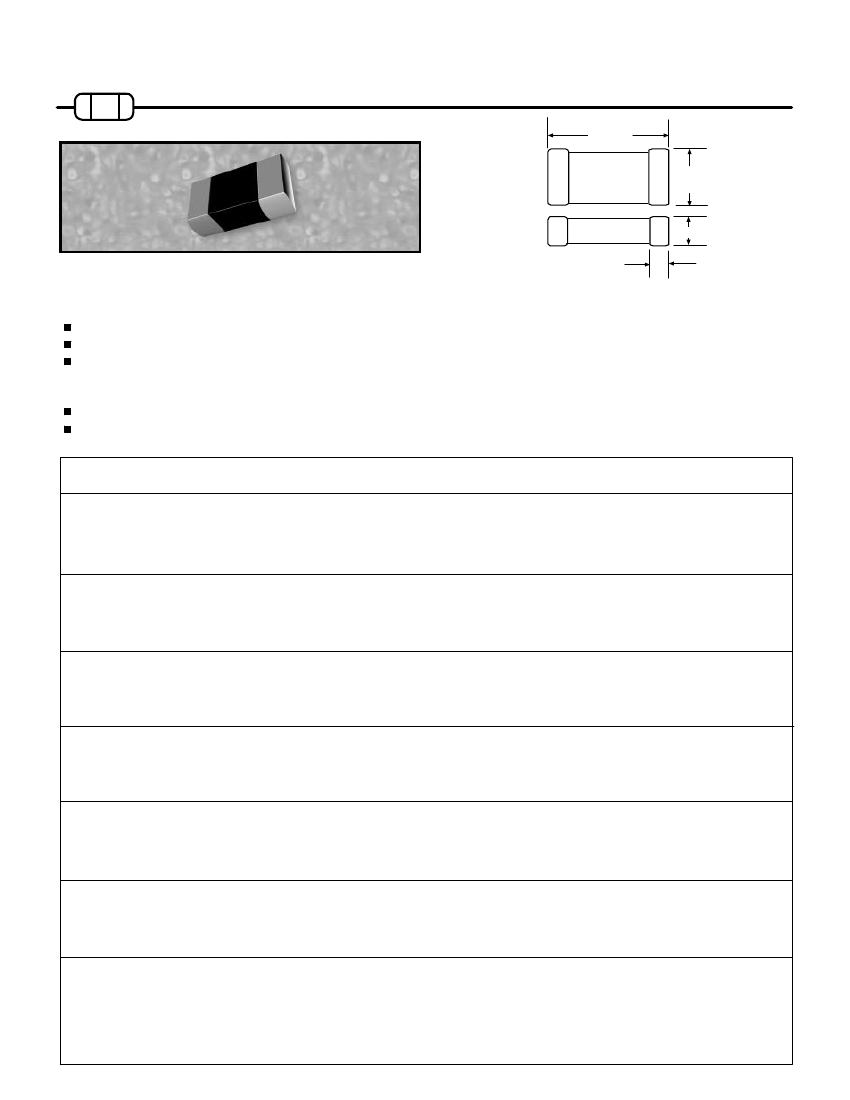

LCHF0402

High Frequency

Multilayer Chip Inductor

Length

.039

Width

.020

Thickness .020

Terminal

.015

FEATURES

High efficiency

SMD

Reflow or flow soldering

APPLICATIONS

High frequency circuits

Hand held electronics

PART

NUMBER

INDUCTANCE

(nhy)

Q (TYPICAL) FREQUENCY

(MHz)

100

500

1000

INDUCTANCES 1.0 nhy to 56 nhy

OPERATING TEMPERATURE RANGE -40°C to +100°C

TOLERANCES 2%, 5 % and 10%

SELF RESONANT

FREQUENCY

TYPICAL (MHz)

DC RESISTANCE

OHMS

MAXIMUM (Ω )

RATED DC

CURRENT MAX

(Amps)

LCHF0402-1N0

LCHF0402-1N2

LCHF0402-1N5

LCHF0402-1N8

LCHF0402-2N2

LCHF0402-2N7

LCHF0402-3N3

LCHF0402-3N9

LCHF0402-4N7

LCHF0402-5N6

LCHF0402-6N8

LCHF0402-8N2

LCHF0402-100

LCHF0402-120

LCHF0402-150

LCHF0402-180

LCHF0402-220

LCHF0402-270

LCHF0402-330

LCHF0402-390

LCHF0402-470

LCHF0402-560

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

33

39

47

56

11

10

11

26

24

23

22

24

23

22

21

20

39

35

34

33

32

34

33

32

31

29

25

23

21

19

>13000

12000

11000

9000

8000

7000

6000

5700

5500

4900

4300

3900

3500

3100

2800

2300

1900

1700

1500

1300

0.12

0.13

0.14

0.16

0.17

0.19

0.22

0.24

0.27

0.32

0.37

0.42

0.50

0.55

0.65

0.80

0.90

1.00

1.20

1.30

1.40

0.300

0.250

0.200

0.150
