LFSPXO053236REEL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO053236REEL

Preview

LFSPXO053236REEL: DescriptionLVDS Output Clock Oscillator, 150MHz Nom; CategoryPassive components oscillator; File Size779KB，2 Pages; ManufacturerIQD Frequency Products

Download Datasheet Parametric View All

LFSPXO053236REEL Overview

LVDS Output Clock Oscillator, 150MHz Nom

LFSPXO053236REEL Parametric

Parameter Name	Attribute value
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Is Samacsys	N
Other features	ENABLE/DISABLE FUNCTION; TR
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	150 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	7.5mm x 5.0mm x 1.4mm
longest rise time	0.7 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

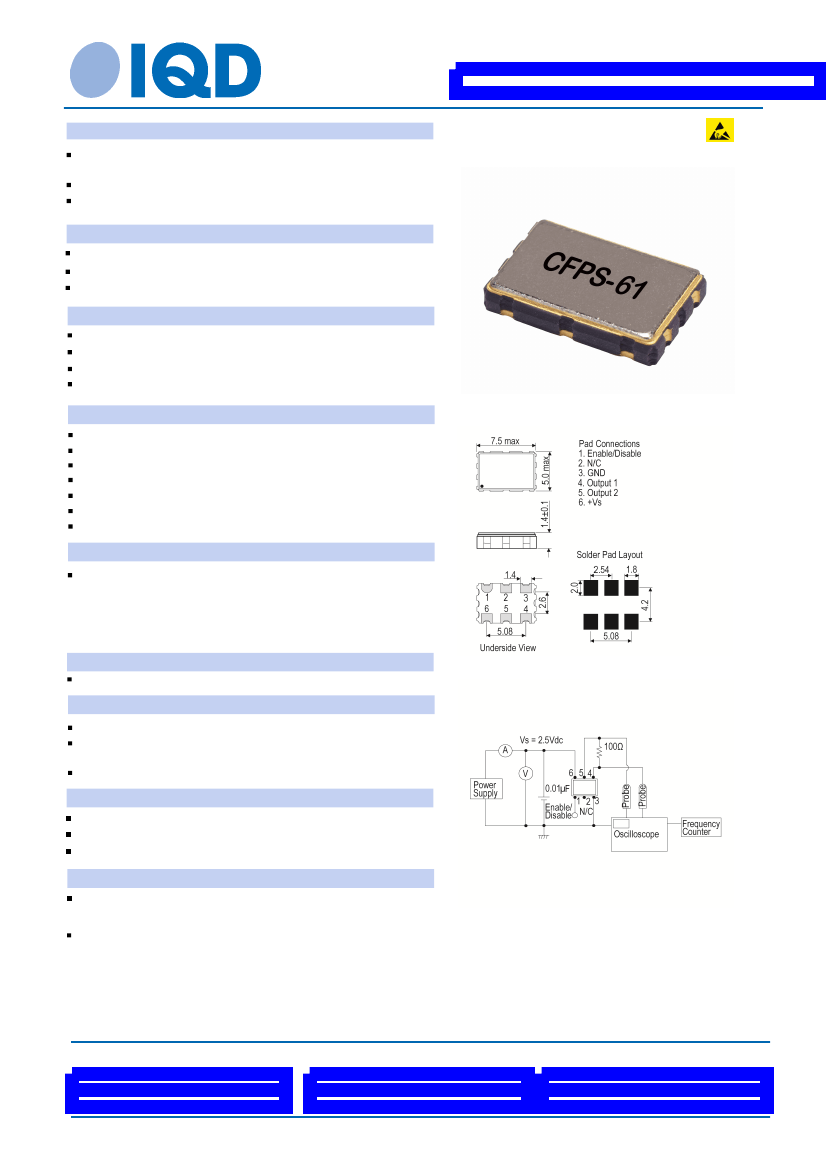

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO053236Reel

Description

Low jitter 2.5V surface mount oscillator in a ceramic package,

with a hermetically sealed metal lid and LVDS outputs

Model

CFPS-61

Model Issue number

4

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

150.0MHz

±100.00ppm

-10.00 to 70.00°C

Supply Voltage

Current Draw

Standby Current: 30µA max

Start-Up Time: 10ms max

Output Details

2.5V ±5%

63.00mA

Outline (mm)

LVDS

Output Compatability

Drive Capability

100Ω

0.7ns max

Rise and Fall Time

45/55%

Duty Cycle

Differential Output Voltage (Vod): 0.33V typ

Differential Output Voltage Swing (Vopp): 0.25Vpk-pk min

Offset Voltage (Vos): 1.125V to 1.375V (1.25V typ)

Output Control

Enable/Disable Operation:

Logic '1' to pad 1 (70%Vs min) enables oscillator output

Logic '0' to pad 1 (30%Vs max) disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Noise Parameters

Test Circuit

Phase Jitter (12kHz to 20MHz): 1ps rms max

Environmental Parameters

Drop: 30cm drop (3 times) onto hard wooden board

Vibration: 20G (10Hz-55Hz), 1.52mm amplitude, 2hrs in 3

mutually perpendicular planes (total 6hrs)

Storage Temperature Range: -55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
