LFXTAL059535REEL datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL059535REEL

LFXTAL059535REEL: DescriptionParallel - Fundamental Quartz Crystal; CategoryPassive components Crystal/resonator; File Size277KB，1 Pages; ManufacturerIQD Frequency Products

Download Datasheet Parametric View All

LFXTAL059535REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL059535REEL	-	-	View	Buy Now

LFXTAL059535REEL Overview

Parallel - Fundamental Quartz Crystal

LFXTAL059535REEL Parametric

Parameter Name	Attribute value
Maker	IQD Frequency Products
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Is Samacsys	N
Other features	TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	20 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	32 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	30 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

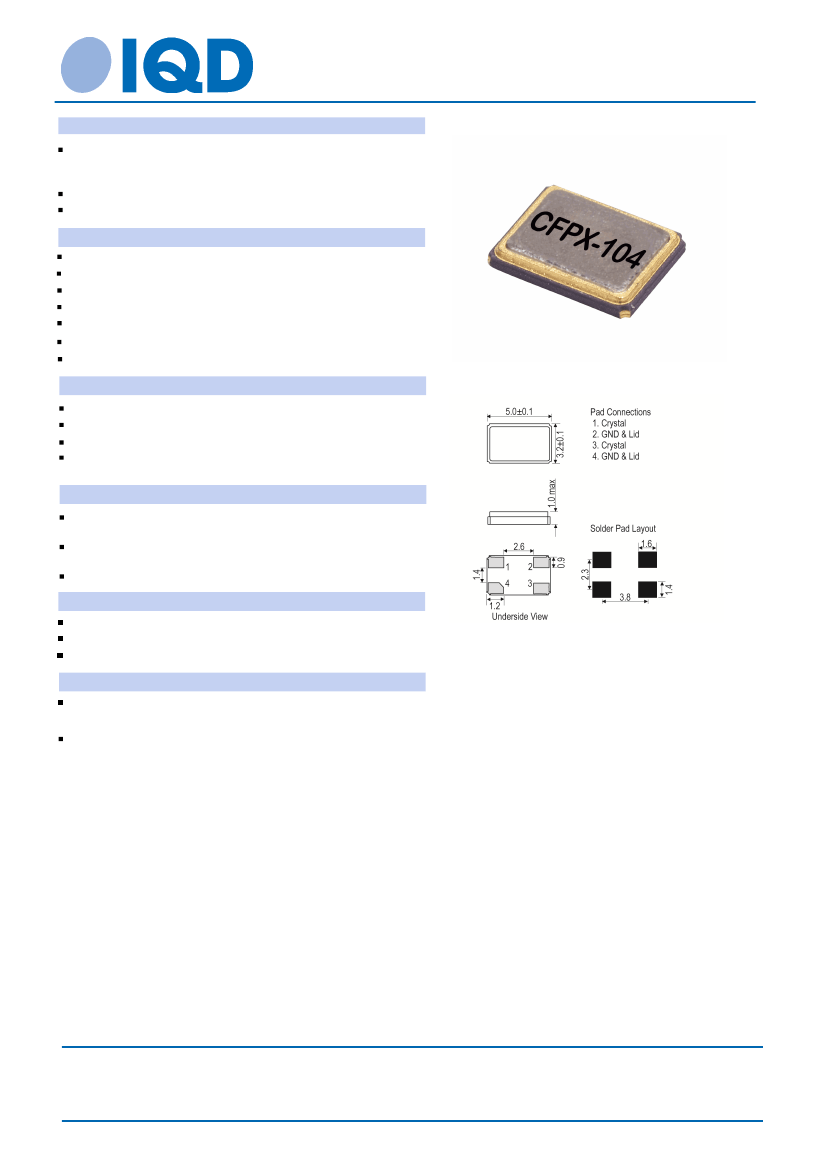

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL059535Reel

Description

Standard 5x3.2mm SMD crystal with four pads.

Ceramic package with a seam sealed metal lid, hermetically

sealed.

Model

CFPX-104

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

32.0MHz

±20.00ppm

@ 25°C

30.00ppm

-40.00 to 85.00°C

Fundamental

±3ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

18.00pF

7pF max

100µW max

30.00Ω max

Shock: 1500G, 0.5ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 20G (20Hz-2000Hz), 1.52mm amplitude, 20mins in

3 mutually perpendicular planes, 4 cycles

Storage Temperature Range: -55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 10 Feb 17 9:17 using Part Data Sheet V1.00014
