39530-5513

Description
pluggable terminal blocks 5.08mm euro plug RA plug RA grn AU 13ckt
CategoryThe connector
File Size36KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39530-5513 Online Shopping

Suppliers Part Number Price MOQ In stock
39530-5513 - - View Buy Now

39530-5513 Overview

pluggable terminal blocks 5.08mm euro plug RA plug RA grn AU 13ckt

39530-5513 Parametric

Parameter NameAttribute value
ManufactureMolex
Product CategoryPluggable Terminal Blocks
RoHSYes
ProducPlugs
Pitch5.08 mm
Connection MethodScrew
Termination Style-
Wire Gauge Range26-12
Current Rating18 A
Voltage Rating300 V
Mounting Method-
Mounting AngleHorizontal
Contact PlatingTi
Housing MaterialNyl
Contact MaterialCopper Alloy
PackagingBulk
Factory Pack Quantity160
Wire Gauge Max12
Wire Gauge Mi26

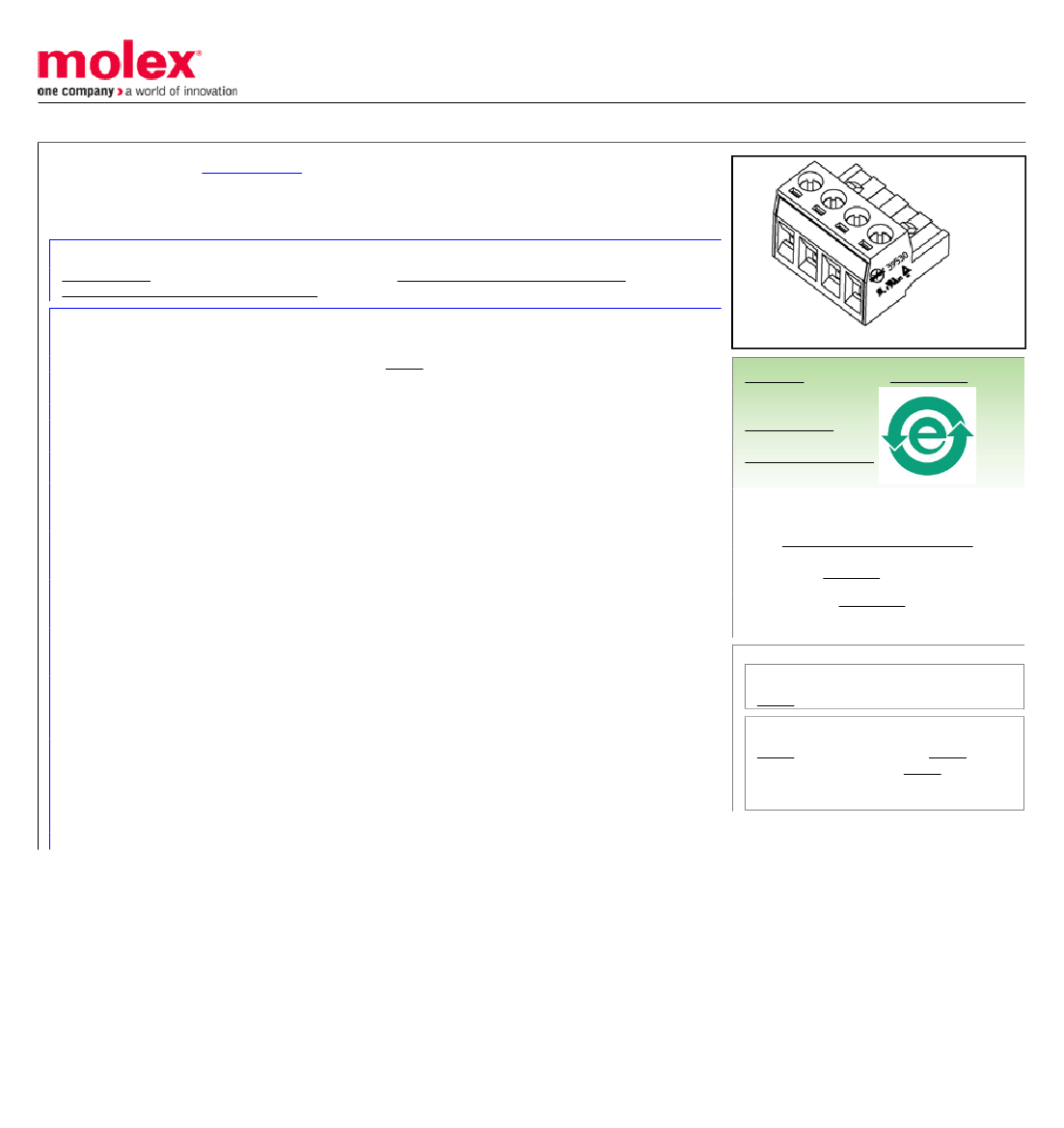

This document was generated on 09/02/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
39530-5513
Active
5.08mm Pitch Eurostyle™ Horizontal Plug, Green Housing, Gold (Au) Plated, 13
Circuits
Documents:
Drawing (PDF)
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
UPC
Terminal Blocks
39530
N/A
Plug
ESE, Eurostyle™Pluggable
Euro Block
822350538367
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
13
Vertical
Yes
1
Horizontal
No
5.08mm
5.08mm
Yes
No
-40°C to +105°C
12, 14, 16, 18, 20, 22, 24, 26
0.13 - 3.31
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
Voltage - Maximum
18A
300V
Search Parts in this Series
39530Series
Mates With
39531 Vertical PCB Header, 39532
Horizontal PCB Header, 39538 Dual Level
PCB Header, Open Ends, Most 5.08mm
Pitch Industry Standard PCB Headers
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001, RPS-39500-001
SD-39530-001
This document was generated on 09/02/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
