PRC25125.1M10%A datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PRC25125.1M10%A

PRC25125.1M10%A: DescriptionRESISTOR, 1 W, 10 %, 200 ppm, 5100000 ohm, SURFACE MOUNT, 2512, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size390KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

PRC25125.1M10%A Overview

RESISTOR, 1 W, 10 %, 200 ppm, 5100000 ohm, SURFACE MOUNT, 2512, CHIP, ROHS COMPLIANT

PRC25125.1M10%A Parametric

Parameter Name	Attribute value
Maker	SEI(Stackpole Electronics Inc.)
package instruction	, 2512
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
JESD-609 code	e3
Manufacturer's serial number	RPC
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE, EMBOSSED
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	5100000 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	10%
Operating Voltage	200 V
Base Number Matches	1

Preview

Download Datasheet

View All

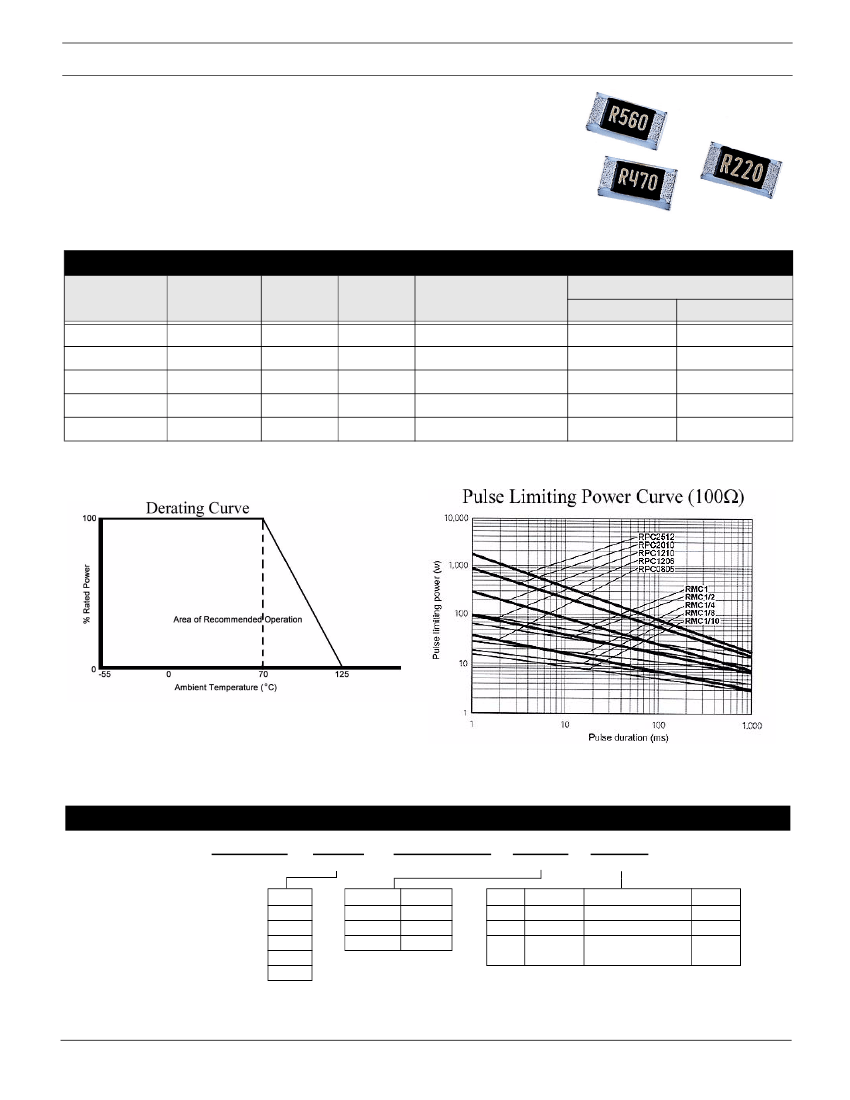

RPC Series — Resistor Pulse Chip

Features

• Excellent pulse withstanding performance

• Improved working voltage

• Higher anti-surge performance compared

with RMC series

• Stability class: 5%

• Broad resistance range

• RoHS compliant/ lead-free available

Electrical Specifications

Type

Power Rating

(Watts)

@ 70°C

0.100

0.125

0.250

0.500

1.000

Maximum

Working

Voltage

150V

200V

Isolation

Voltage

500V

Resistance Temperature

Coefficient

±200 ppm/°C

Ohmic Range and Tolerance

0.27Ω – 22M

10%

0.27Ω – 22M

RPC 0805

RPC 1206

RPC 1210

RPC 2010

RPC 2512

How to Order

RPC

SEI Type

Code

0805

1206

1210

2010

2512

0805

Code

Tolerance

10%

20%

10M

Nominal Resistance

Values

E24

Code

Tolerance

Description

Bulk

Paper

Emboss

Packaging

SEI Types

All

RPC 0805, RPC 1206

RPC 1210, RPC 2010,

RPC 2512

Pkg Qty

1,000

5,000

4,000

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com
