TC07-11PBWA: DescriptionSmart/Normal 5 X 7 Dot Matrix LED Display, Blue, 17.24mm, ROHS COMPLIANT PACKAGE-12; CategoryLED optoelectronic/LED photoelectric; File Size150KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

TC07-11PBWA Overview

Smart/Normal 5 X 7 Dot Matrix LED Display, Blue, 17.24mm, ROHS COMPLIANT PACKAGE-12

TC07-11PBWA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CML Innovative Technologies
package instruction	ROHS COMPLIANT PACKAGE-12
Reach Compliance Code	unknown
Is Samacsys	N
color	BLUE
Configuration	COMMON CATHODE, 1 DIGIT
Display height	17.24 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

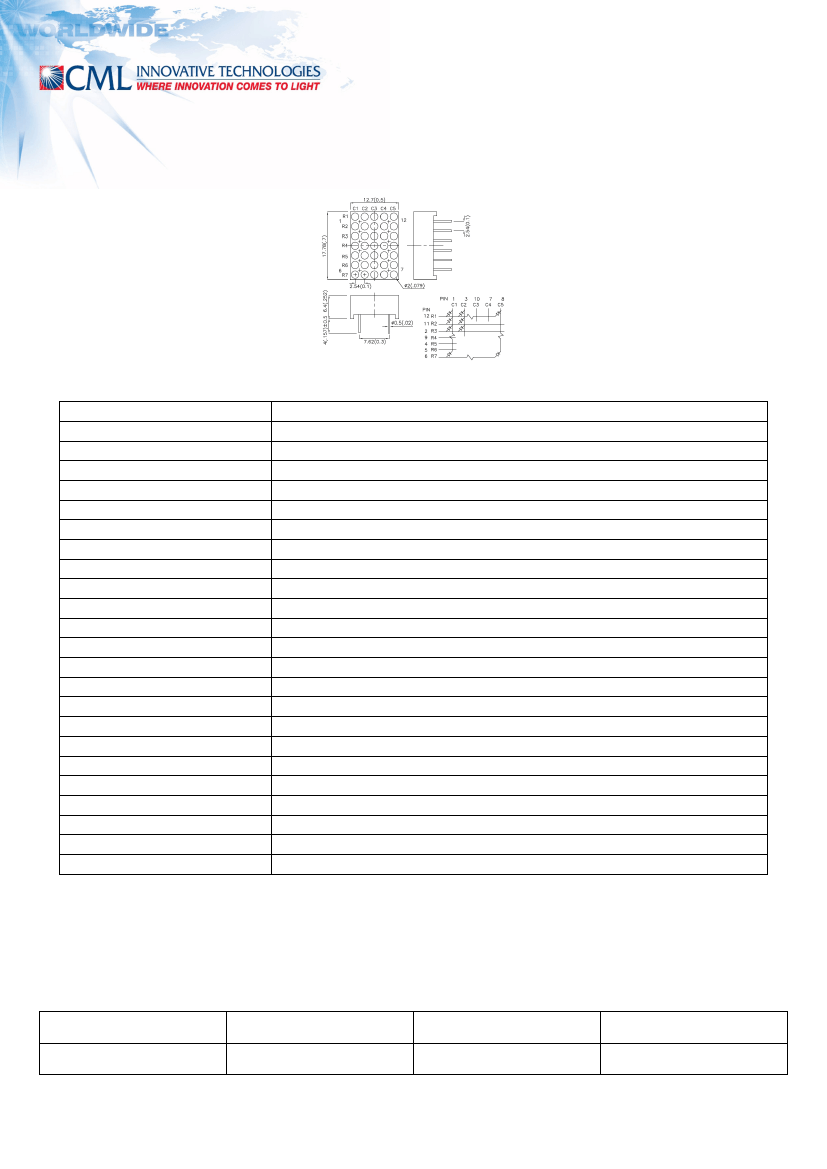

Part Number : TC07-11PBWA

Serial Number : TC0711

Displays

Anode Cathode

Chip Type

LED Type

Display housing

Display Kind

Display Size

Emitted color

Lens color

Surface color

Lum in min (mcd)

Lum in type (mcd)

Reverse voltage

Forward current

Peak forward current

Power Dissipation

Op. temperature (°C)

Storage temperature (°C)

Forward volt typ.

Forward volt max.

Dom wave length

Peak Wave Lenght (mA)

Spectral half width

Comments

ROHS Status

common cathode

PB

17,78mm x 12,70mm

Dot Matrix

2,00mm

Blue

White

Gray

4.700mcd

13.200mcd

5V

30mA

160mA*

102mW

-40°C to +85°C

3,65V

4,2V

470nm

468nm

25nm

* 1/10 Duty Circle, 0,1ms Pulse Width

Yes

Drawn : DIL

Revision :

Ch'd : DIL

Revision date : 2006-03-02

Datasheet : TC0711

Name : DIL

Print date : 02/10/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
