USB3106-30-0230-A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> USB3106-30-0230-A

Preview

USB3106-30-0230-A: DescriptionTelecom and Datacom Connector, 5 Contact(s), Female, Straight, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size222KB，2 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

USB3106-30-0230-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	USB3106-30-0230-A	-	-	View	Buy Now

USB3106-30-0230-A Overview

Telecom and Datacom Connector, 5 Contact(s), Female, Straight, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT

USB3106-30-0230-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Board mount options	LOCATING POSTS
body width	0.093 inch
subject depth	0.22 inch
body length	0.313 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	USB, SER AB
DIN compliance	NO
Dielectric withstand voltage	100VAC V
Durability	10000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	.9906 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	MATTE TIN
Shell material	STAINLESS STEEL
Terminal length	0.091 inch
Terminal pitch	1.2954 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

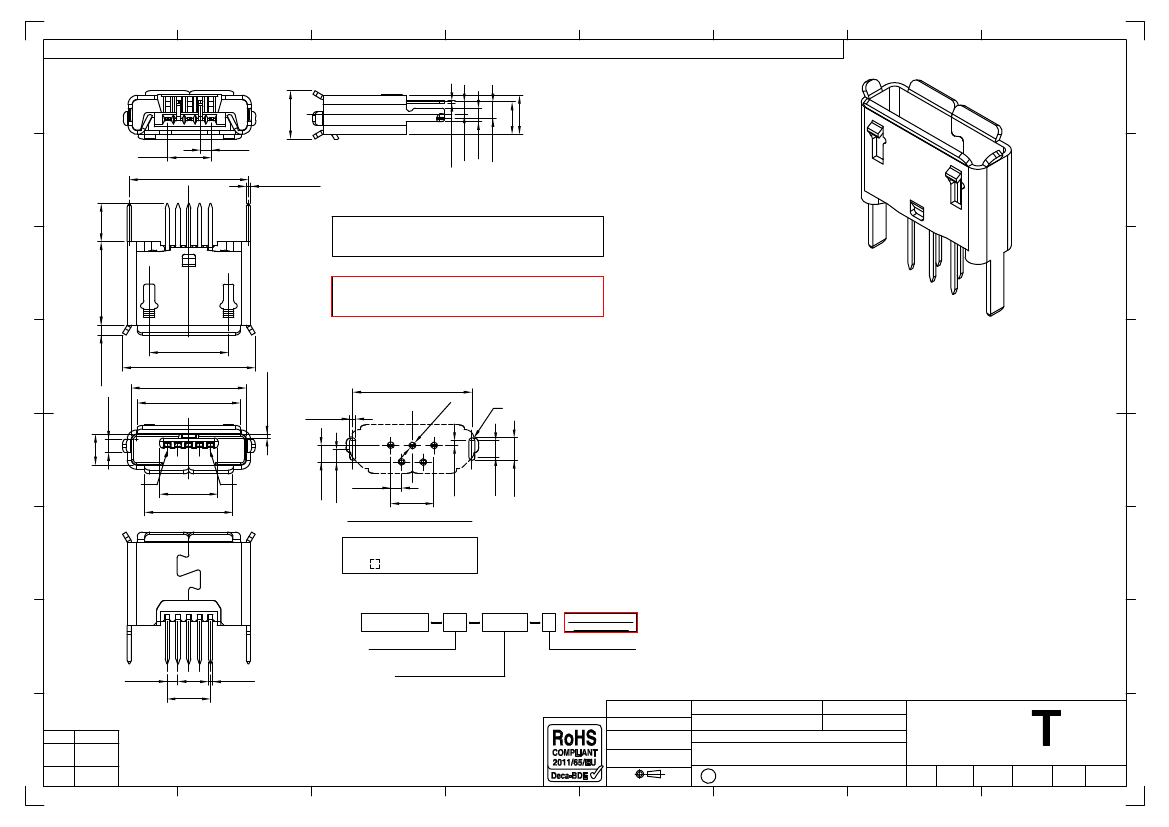

Global Connector Technology Ltd. - USB3106:

μUSB

Receptacle, Type A/B, Vertical, Through Hole with 2.30mm (Standard) Shell Stakes

A

2.90

1.95

C

L

2.35

A

0.78

0.80

B

7.15

0.15

2.60

1.00

0.65

0.25±0.05

B

C

L

Designed to comply with physical, electrical and environmental

requirements of Micro USB Standard (USB2.0)

A/B types support USB On-The-GO (OTG) interface.

S

C

5.00

C

If you seek shorter shell stakes for use with

PCB thickness 1.00mm (.039”), see USB3105.

4.75

Specifications

规格

:

Materials

材料

:

Plastic Housing

胶芯

: LCP, UL94V-0, Black,

黑色

Contact Terminal

端子

: Copper Alloy

铜合金

.

Metallic Shell

金属外壳

: Stainless Steel

不锈钢

SUS304-1/2H T=0.25mm

Finish

表面处理

:

Underplating

底层电镀

: Nickel

镍

50µ" min.

Plating

电镀

:

Contact Area

接触区

: 30µ" Gold plating, 30µ"

镀金

Solder Tails

焊接区

: Gold Flash

闪金

Metallic Shell

金属外壳

: Matte Tin

雾锡

50-100µ"

Electrical

电气规格

:

Voltage Rating

电压额定值

: 30V

Current Rating

电

流

额

定

值

: Signal (Pins 2,3,4)

信号

:1.0 A.

Power (Pins 1,5)

电

源

:1.8A.

Operating Temperature

工½温度

: -55°C to +85°C.

Contact Resistance

接触电阻值

: 30 mΩ Max.

Insulating Resistance

绝缘电阻值

: 1000 MΩ Min.

Dielectric Withstand Voltage

耐电压

: 100V AC for 1 minute

D

0.60 Ref.

7.96

6.90

6.20

0.22.MIN

7.15

Ø

0.

40

D

0.80

C

L

0.35

C

L

R0.175

1

3

2

4

5

E

1.85

E

0.28

1.00

0.78

3.50

5.30

1.00

Pin 1

Pin 5

2.60

RECOMMENDED P.C.B LAYOUT

GENERAL TOLERANCE: ±0.05

AS VIEWED FROM COMPONENT SIDE

F

1.35

0.65

F

Component Outline

Ordering Grid

USB3106

G

0.65

2.60

0.25

30

0230

A

REQUEST SAMPLES

AND QUOTATION

Contact Plating

30 = 30µ" Gold

Shell Stake Length "S"

0230 = 2.30mm

(recommended for 1.6mm PCB thickness)

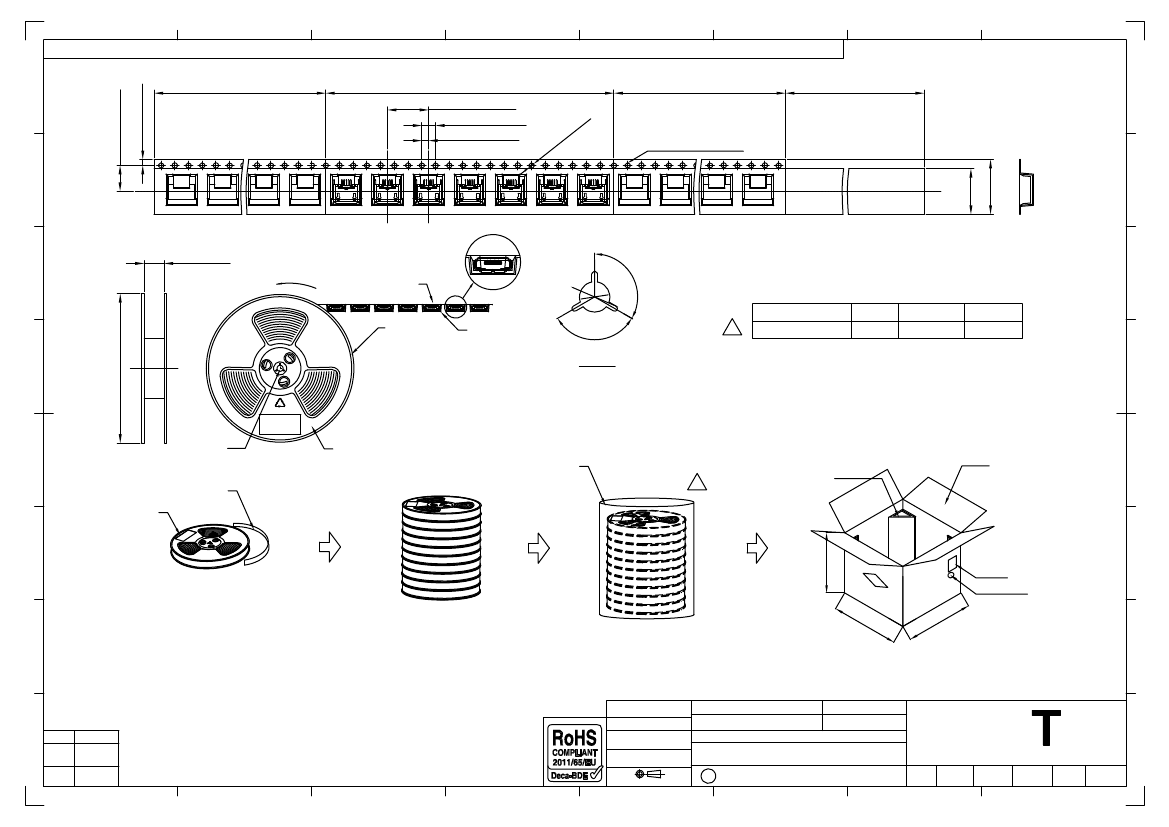

Packing Options

A = Tape & Reel

(1,500 Pieces per Reel)

Mechanical

机械性规格

:

Mating Force

插入力

: 35N Max.

Unmating Force

拨出力

: Initial 10N Min.,

初始

10N,

Final 8N Min.,

最后

8N

Durability

耐久性

: 10,000 Cycles

次插拨

Part Number:-

Date:-

G

Tolerances

(Except as noted)

Dimensions in mm

USB3106

Description:-

28 OCT 13

H

By

DETAIL

REV

DATE

AJO

DRAWING

RELEASE

A

28/10/13

X.X ± 0.35

X.XX ± 0.25

Third Angle Projection

µUSB Receptacle, Type A/B, Vertical,

Through-Hole with Shell Stakes

GC

Scale

NTS

H

Sheet No.

E & OE

1/2

www.gct.co

Drawn by

AJO

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

A

Material

See Note

1

2

3

4

5

6

7

8
