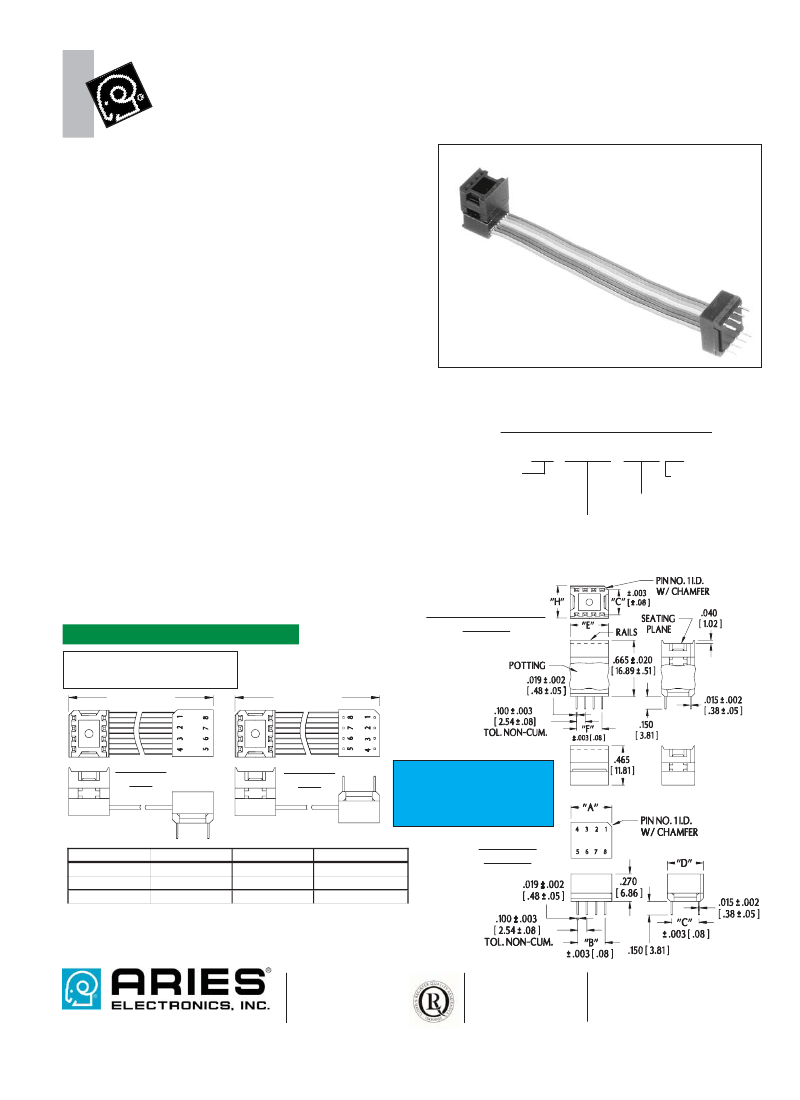

Series 200 thru 216
Male/Female DIP Jumpers
Features:
• Aries offers a wide array of DIP jumper configurations for all
your programming needs.
• Reliable, electronically tested solder connections.
• Protective covers are ultrasonically welded on and
provide strain relief for cables.
• 10-color cable allows for easy identification and tracing.
• Consult factory for jumper lengths under 2.000 [50.80].
Specifications:
• All body material is red UL 94-HB Glass-filled Nylon.
Consult factory for UL 94V-0 rated material.
• Solder tail pins are Brass, 1/2 hard.
• Socket contacts Grade A spring-tempered Phosphor Bronze
per QQ-B-750.
• Pin and contact plating is 10µ [.25µm] min. Gold per MIL-G-
45204 over 50µ [1.27µm] min. Nickel per
Note: Aries specializes in custom design and production. In addition to
QQ-N-290.
the standard products shown on this page, special materials, platings,
• Cable insulation is UL Style 2697 Polyvinyl Chloride (PVC).
sizes, and configurations can be furnished, depending on quantities.
Aries reserves the right to change product specifications without notice.
• Laminate is clear PVC, self-extinguishing.
• Conductors are 28 AWG, 7/36 strand, Tinned Copper per
ORDERING INFORMATION
ASTM B 33.
XX-XXXX-XXXXX
• Cable current rating=1 Amp @ 10°C [50°F] above
ambient.
No. of
Optional suffix:
• Cable voltage rating=300 Volts.
conductors
ST=stripped and
• Cable temperature rating=176°F [80°C].
(see table)
Jumper Tinned ends
• Cable capacitance=13.0 pf/ft. [42.7pf/meter] nominal
series
(Series 206, 210)
Cable length in inches
@1 MHz.
Ex: 2” = -002-
• Crosstalk: 10’ sample, 5 ns rise time with 2 lines
2.5” = -002.5-
driven. Near end=4.7%; Far end=4.3% nominal.
min. cable length = 2” [50.80mm]
•Propagation delay=1.5 ns/ft. [4.9 ns/meter] nominal.
•Insulation resistance=1010 Ohms (10 ft. [3 meters] min.).
Mounting Considerations:
HEADER/SOCKET
•Suggested PCB hole size=.033 ± .002 [.86 ± .05].
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“L” ± .125
Note: 18, 20 and
28 position headers
do not have
numbers on covers.
“L” ± .125
DETAIL
SERIES
200
SERIES
214
See Data Sheet No.
11013 for other
configurations and
additional information.
HEADER
DETAIL
Centers “C ”
.300 [7.62]
.400 [10.16]
.600 [15.24]
Dim. “D”
.395 [10.03]
.495 [12.57]
.695 [17.65]
Dim. “H”
.390 [9.90]
.490 [12.45]
.690 [17.54]
Available Sizes
8, 14 thru 20
22
24, 28, 40
“A”=(NO. OF CONDUCTORS X .050 [1.27]) + .095 [2.41]
“B”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
“E”=(NO. OF CONDUCTORS + 1) X .050 [1.27]
“F”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
REV.C
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
UK/IRELAND/GB
TEL: +44 870 240 0249
FAX: +44 1653 690980
uking@arieselec.com
EUROPE/MAINLAND/HOLLAND
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
11012
