EURO
QUARTZ
14 pin Dual-in-Line SMD Ocillators
FEATURES
14 pin DIL package with 'Gull-Wing' formed leads for SMD
Wide frequency range 20kHz to 160MHz
Choice of supply voltage 3.3 Volts or 5.0 Volts DC
Hermetically sealed package for reliability and low ageing
Optional Tristate function (Enable/Disable)
Custom frequencies readily available
EQXO-1000GW Oscillators
20kHz to 160MHz

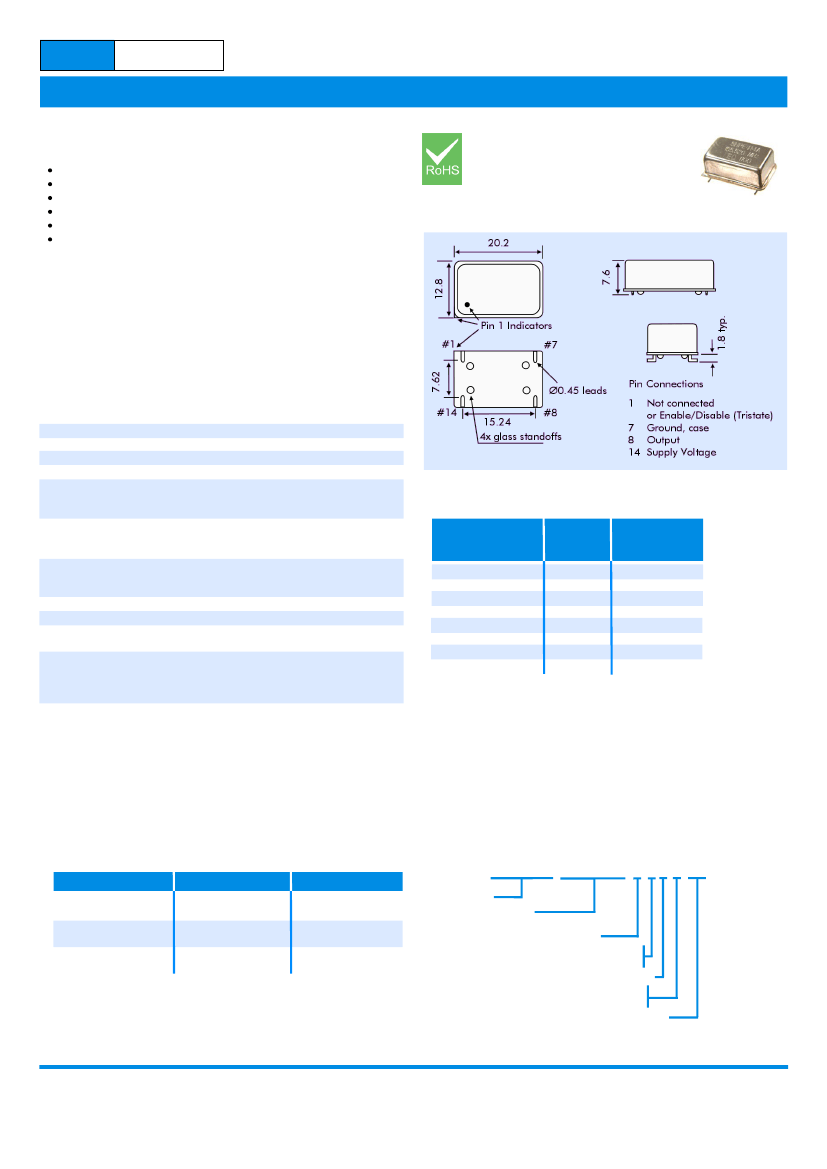

OUTLINE & DIMENSIONS
DESCRIPTION
The Euroquartz EQXO-1000GW series of 14 pin dual-in-line
oscillators consist of a Universal, TTL and CMOS compatible hybrid
substrate and quartz crystal in a hermetically-sealed package. For use
in surface-mount printed circuit boards the leads are formed in 'Gull-
Wing' outline.
SPECIFICATION
Series Model Number:
Frequency Range:
Frequency Stability*:
Supply Voltage:
Output Load
HCMOS:
TTL:
Symmetry
HCMOS:
TTL:
Operating Temperature Range
Commercial:
Industrial:
Storage Temperature Range:
Start-up Time:
Current Consumption:
EQXO-1000GW
20kHz to 160MHz
See table
+5.0VDC±10% or 3.3VDC±5%
15pF standard, 50pF available
2 to 10TTL gates
40/60% measured at 50%Vdd
40/60% measured at 1.4 Volts
MODEL NUMBERS
Model Number
Stability
over O.T.R.
(ppm)
Operating
Temperature
Range
0° to +70°C
-40° to +85°C
-55° to +105°C
5ms typical, 10ms max.
15mA ~ 45mA
(frequency dependant)
Tristate Option: Output is high impedance when
'0' (<0.8 Volts) is applied to Pin 1,
(internal pull-up).
Disable time = 150ns max.
*
The frequency stability parameter is inclusive of frequency adjustment
at 25°C and any variations due to load change, ageing, supply voltage
change (±10%) and variations attributable to shock and vibration.
EQXO-1010UC-GW ±10ppm
EQXO-1015UC-GW ±15ppm
EQXO-1025UC-GW ±25ppm
EQXO-1050UC-GW ±50ppm
EQXO-1100UC-GW ±100ppm
EQXO-1025UI-GW
±25ppm
EQXO-1050UI-GW
±50ppm
EQXO-1100UI-GW ±100ppm
0° ~ +50°C
0° ~ +70°C
0° ~ +70°C
0° ~ +70°C
0° ~ +70°C
-40° ~ +85°C
-40° ~ +85°C
-40° ~ +85°C
PART NUMBER GENERATION
EQXO-1000GW series oscillator part numbers are derived as
follows:
Example: 10.000MHz EQXO-1050UIT3-GW:
HCMOS/TTL Voltage Levels
10.000MHz EQXO-1050 U I T 3 GW
Input Voltage:
+3.3 VDC
+5.0 VDC
Frequency Range:
Output Voltage
TTL HIGH '1':
HCMOS HIGH '1':
TTL LOW '0:
HCMOS LOW '0':
20kHz ~ 125MHz
2.4 V min.
2.97 V min.
0.4V max.
0.33V max.
20kHz ~ 160MHz
2.4V min.
Vcc - 0.5V min.
0.4V max.
0.5V max
Frequency
Model number
(see table above)
U - Output CMOS/TTL
C - Commercial temperature
I - Industrial temperature
T - Tristate function (option)
Blank: 5.0 Volts supply
3: 3.3 Volts supply
GW - Gull-wing leads
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
