0035.9313.5: DescriptionSingle Color LED, Green, Clear, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size59KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

0035.9313.5 Overview

Single Color LED, Green, Clear, T-1 3/4, 5mm,

0035.9313.5 Parametric

Parameter Name	Attribute value
Maker	SCHURTER
Reach Compliance Code	compliant
Is Samacsys	N
color	GREEN
Configuration	SINGLE
Maximum forward current	0.045 A
Lens type	CLEAR
Nominal luminous intensity	5.25 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	55 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	13.4 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	140 deg
Base Number Matches	1

Preview

Download Datasheet

View All

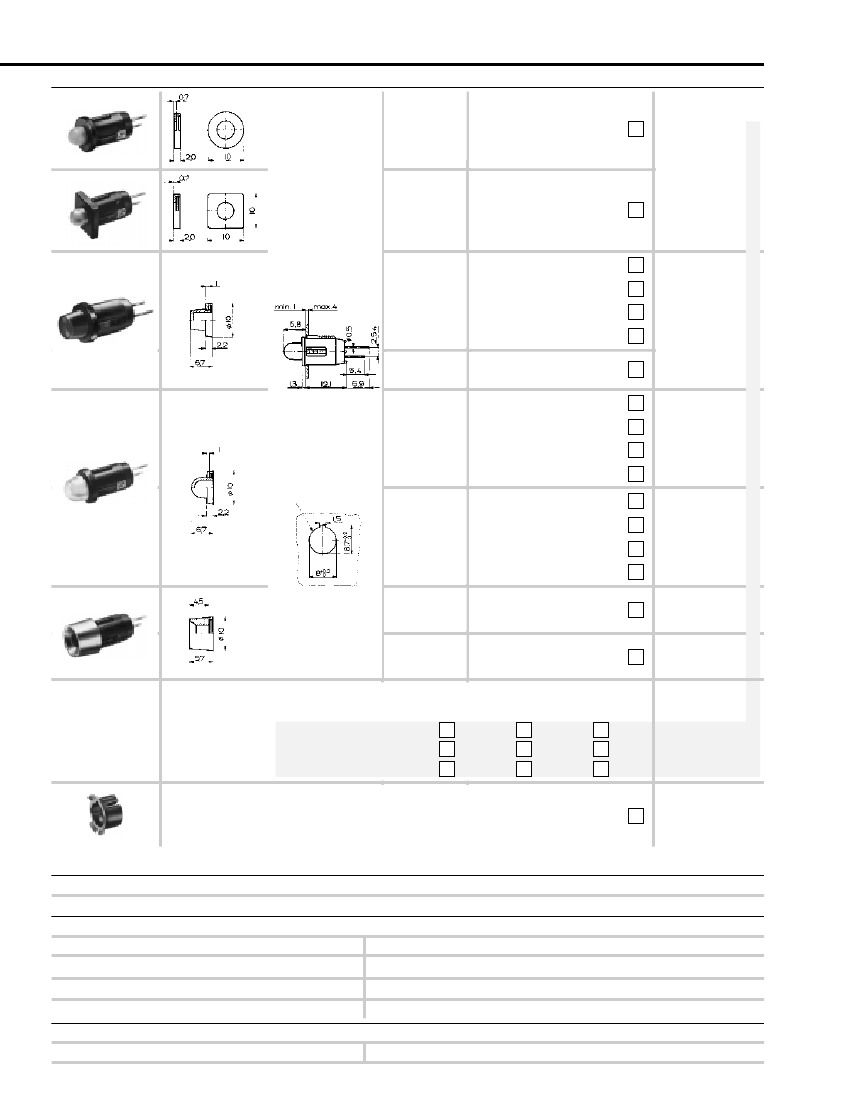

LED-Holder LDR (for 5mm T1-3/4 LED) with built-in resistor

Models

Dimensions

Anode (+Pole) is

underneath

antirotation lance

Reflector Lenses

without

Part Number

0035.9437.X

without

0035.9447.X

clear glass

black

clear red

clear green

clear yellow

chrome plated

clear green

clear glass

black

clear red

clear green

clear yellow

<0.2 x 45û

0035.9465 .X

0035.9466 .X

0035.9467 .X

0035.9468 .X

0035.9477 .X

0035.9311 .X

0035.9312 .X

0035.9313 .X

0035.9314 .X

0035.9391 .X

0035.9392 .X

0035.9393 .X

0035.9394 .X

0035.9318 .X

chrome plated

clear glass

clear red

clear green

clear yellow

black

without

chrome plated

LED«s

Color of LED

red

green

yellow

5 - 7V

1

2

3

without

Voltage range (DC)

12 - 16V

4

5

6

24 - 30V

7

8

9

0035.9315 .X

Securing clip necessary for panel mounting

0850.9242. X

Technical data

1. Mechanical data

Technical data LED 0925.0059/60/61 see page 87

2. Others

Solderability

Soldering heat resistance

Ambient temperature

Storage temperature

3. Materials

Socket

76

max. 2s < 235¡C

max. 5 s < 260¡C

( IEC 68 2-20 Test Ta Method 1 )

( IEC 68 2-20 Test Tb Method 1A )

-25¡C - + 55¡C

-55¡C - +100¡C

Thermoplast
