006022022552002 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 006022022552002

006022022552002: DescriptionCard Edge Connector, 22 Contact(s), 1 Row(s), Straight, Solder Terminal,; CategoryThe connector The connector; File Size25KB，1 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

006022022552002 Overview

Card Edge Connector, 22 Contact(s), 1 Row(s), Straight, Solder Terminal,

006022022552002 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	6022
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

.156" x .200"

Features

Extended card guides

Ribbon-type contacts with bifurcated

nose

Choice of terminations: solder (wire

hole and P.C. tab), or low-cost

solderless wrap contacts

For 1/16" P card

.C.

Contact plating:*

Overall:

50-100 microinches nickel and 10

microinches min. gold overall

Insertion/withdrawal force:

2 to 16

ounces per contact pair, nominal P.C.

card

Insulator material:

Polyester per UL 94VO

Insulation resistance:

5000 megohms,

minimum

Dielectric withstanding voltage:

1800

VAC between adjacent contacts, RMS,

at sea level

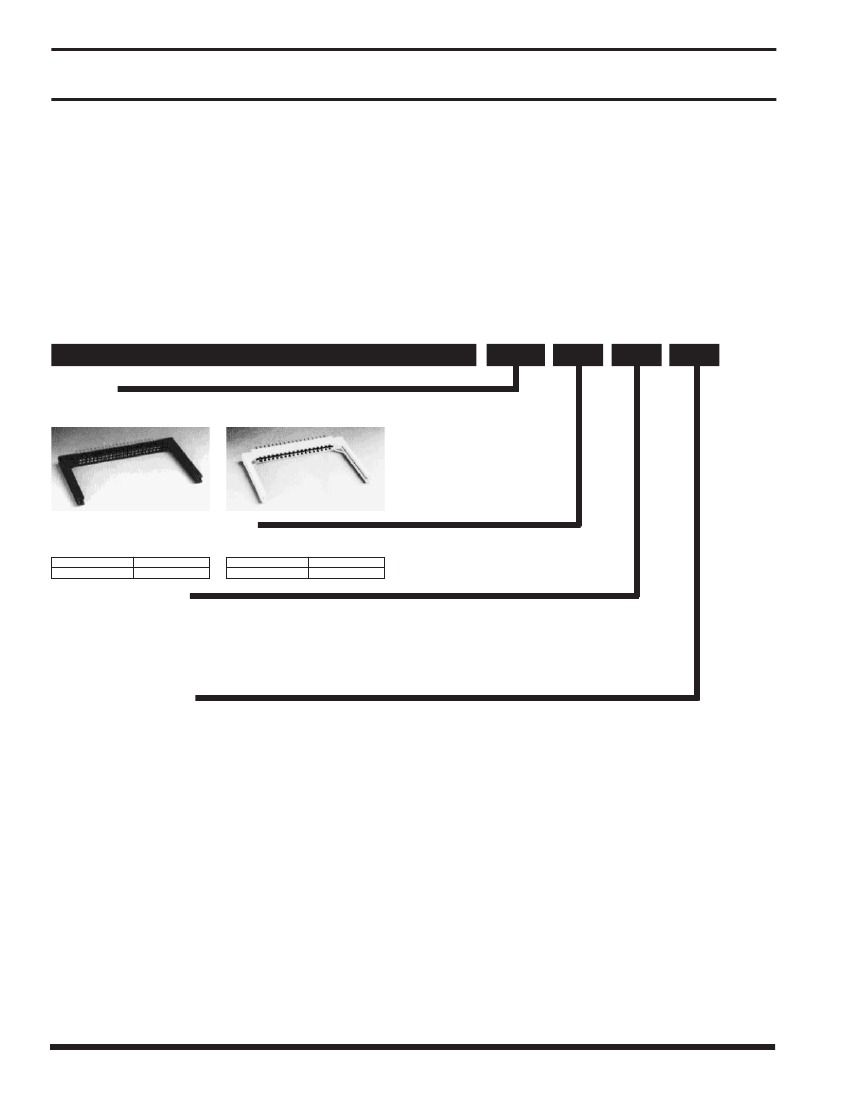

SERIES 6022/6024

Rectangular Tails

Series 6007 Contacts

Specifications

Current rating:

5 amperes

Contact resistance:

6 milliohms,

maximum

Contact material:

Phosphor bronze

* For other type platings and thicknesses please

consult factory.

Ordering Code

Typical Example

6024

6022

044

450

001

SERIES

6022

NUMBER OF CONTACTS

6022

6024

Single Readout

Dual Readout

Single Readout

Dual Readout

CONTACT CODE

Single Read-Out

552

60-6007-16-33 P.C. tab (single sided): .202" lg.

936

60-6007-06-43 Wrap (.016" x .047") special: .497" lg.

938

60-6007-06-33 P.C. tab special: .215" lg.

940

60-6007-06-23 Wire hole special: .227" lg.

Dual Read-Out

450

60-6007-19-23 Wire hole: .277" lg.

451

60-6007-19-33 P.C. tab: .202" lg.

452

60-6007-18-13 Solderless wrap (.016" x .044"): .697" lg.

453

60-6007-18-23 P.C. tab: .347" lg.

454

60-6007-18-33 Solderless wrap (.016" x .044"): .517" lg.

498

60-6007-05-33 Switching (used in pairs): .202" lg. P.C. tab

941

60-6007-05-13 Switching (used in pairs): .229" lg. wire hole

VARIATION CODE

6022

Plating

Overall

001

44 Dual read-out contacts

installed in all positions

002

22 Single read-out contacts

installed on numbered side

only (551, 552, 936, 938, 940)

003

22 Single read-out contacts

installed on lettered side only

(551, 552, 936, 938, 940)

004

22 Single read-out contacts

installed staggered starting with

position 1, B, 3, D, etc. (936,

938, 940 only)

005

22 Single read-out contacts

installed staggered starting with

position A, 2, C, 4, etc. (936,

938, 940 only)

6024

Plating

Overall

001

Dual read-out contacts

002

Single read-out contacts with

tails in position “1” to “18”

(551, 552, 936, 938, 940)

003

Single read-out contacts with

tails in positions “A” to “V”

(551, 552, 936, 938, 940)

004

Single read-out contacts with

tails in positions 1-B-3, etc.

(936, 938, 940 only)

005

Single read-out contacts with

tails in positions A-2-C, etc.

(936, 938, 940 only)
