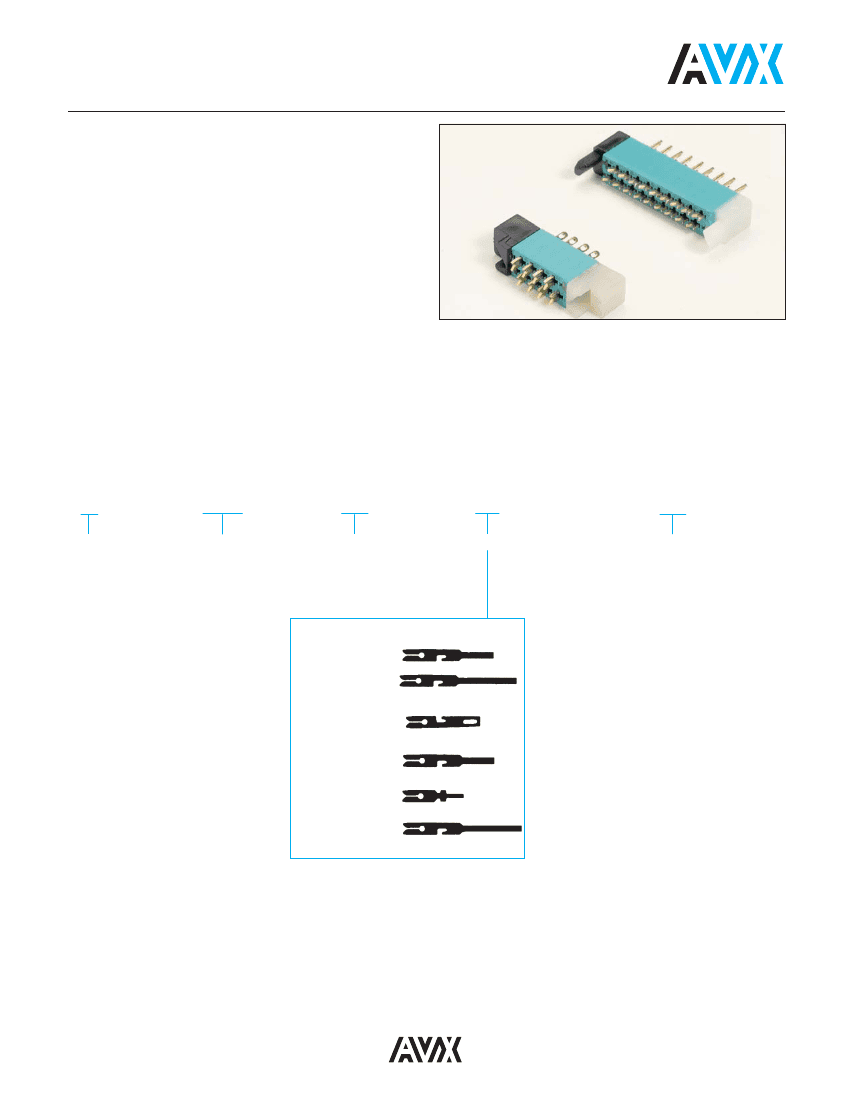

Series 8218 – 0.050" Staggered Dual Row
FEATURES
•
•
•
•
•
•
High contact density
For parallel or perpendicular p.c. card mounting
High mounting density (.050" centers, minimum)
Nylon end sections for mounting and card guidance
Mounting hardware supplied with connector
Mates with 8219 Series
TECHNICAL SPECIFICATIONS
Current Rating:
5 amperes, maximum
Contact Resistance:
0.005 ohm, maximum
Contact Material and Plating:
Phosphor Bronze
nickel plate, 30 to 50 microinches followed by
gold plate, 10 to 20 microinches
Insulator Material:
Diallyl phthalate, glass-filled, flame resistant,
end guides: nylon
Insulation Resistance:
5,000 megohms, minimum
Dielectric Withstanding Voltage:
Sea Level: 1000 Volts rms
3.4" Hg:
500 Volts rms
Insertion/Withdrawal Force:
2 to 16 ounces per contact
ORDERING CODE
00
8218
076
Number of Contacts
002 to 076 for connectors
without center guide
000
Contact Code
001
Variation Code
001 = Receptacle
002 = Plug-Card
005 = Plug-Board
with keying pins
with keying holes
011 = Receptacle
021 = Receptacle
012 = Plug-Card/pin
022 = Plug-Card/pin
inserted in
inserted in
odd position
odd position
013 = Plug-Card/pin
023 = Plug-Card/pin
inserted in even
inserted in even
position
position
017 = Plug-Board
027 = Plug-Board
Variant 002 right angled contacts
000 = 60 8200 16 33
P.C. Tail
000 = 60 8200 16 63
P.C. Tail
Variants 001 and 005
722 = 60 8200 16 13
Wire Hole Tail
736 = 60 8200 16 33
P.C. Tail (X = 9/32", Y = 1/4")
753 = 60 8200 16 53
P.C. Tail (X = 1/8", Y = 3/32")
771 = 60 8200 16 63
P.C. Tail (X = 31/64", Y = 29/64")
32
Varicon
®
Series 8218 – 0.050" Staggered Dual Row

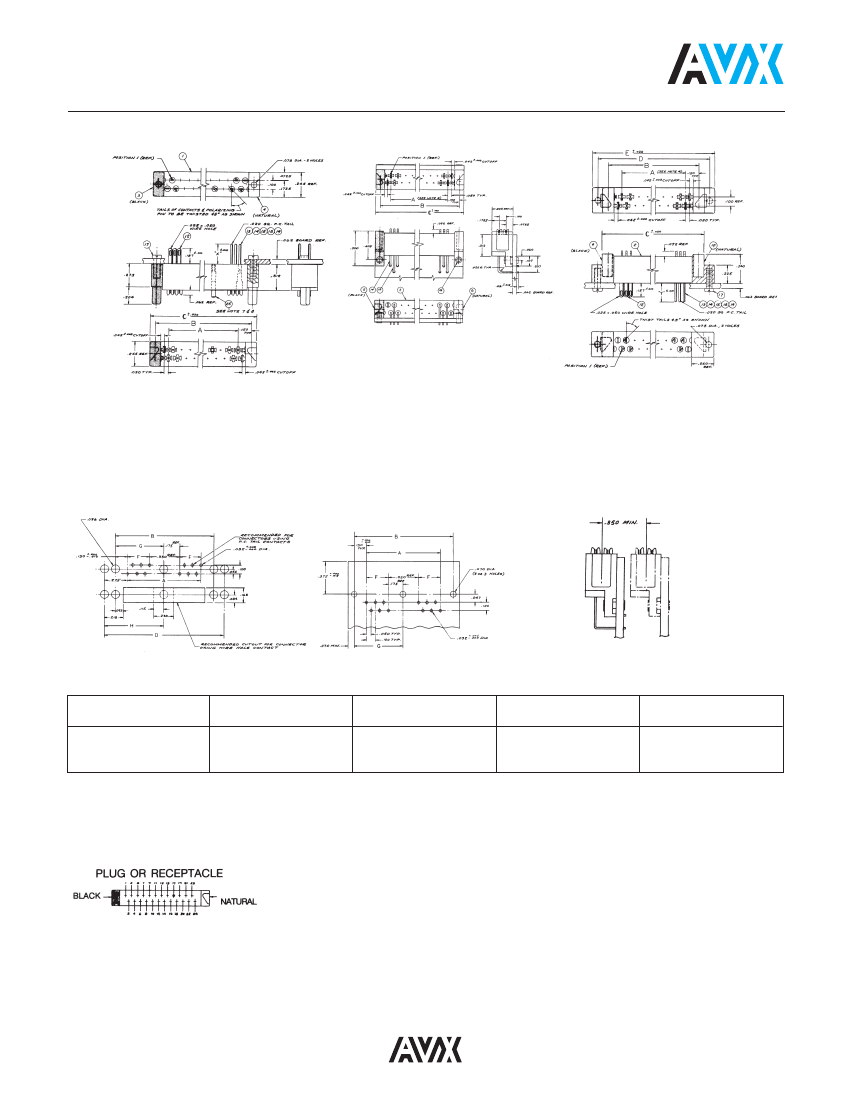

Receptacle Variation 001
Plug Variation 002
Plug Variation 005
RECEPTACLE 001 – MATES WITH PLUGS 002 AND 005
MOUNTING LAYOUT
Variation 001 and 005
Variation 002
Minimum Center to Center
Spacing for Adjustment Plugs
DIMENSIONS
A
(No. of contacts x
0.050") - 0.050"
B
“A” dimension
+ 0.300"
C
“A” dimension
+ 0.440"
D
“A” dimension
+ 0.550"
E
(inches)
“A” dimension
+ 0.690"
POLARIZATION
Keying Ordering No.
60-8218-4715-00-152
Determine polarization pin location from views.
P = Specify location by contact # where polarizing pin must be inserted.
H = Specify location by contact # where contact must be omitted for mating.
Typical Example:
00-8218-024-721-001-P17
(polarizing pin mtd. in position 17)
00-8218-024-721-005-H17
(polarizing hole is in position 17)
33
