0345-E00-C7101N datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 0345-E00-C7101N

Preview

0345-E00-C7101N: DescriptionRF 1.0/2.3 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size579KB，2 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

0345-E00-C7101N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0345-E00-C7101N	-	-	View	Buy Now

0345-E00-C7101N Overview

RF 1.0/2.3 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug

0345-E00-C7101N Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF 1.0/2.3 DIN CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	SLIDE ON
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	0345
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

0345 Series

DIN 1.0/2.3 75 Ohm Cable Plugs

Product Description

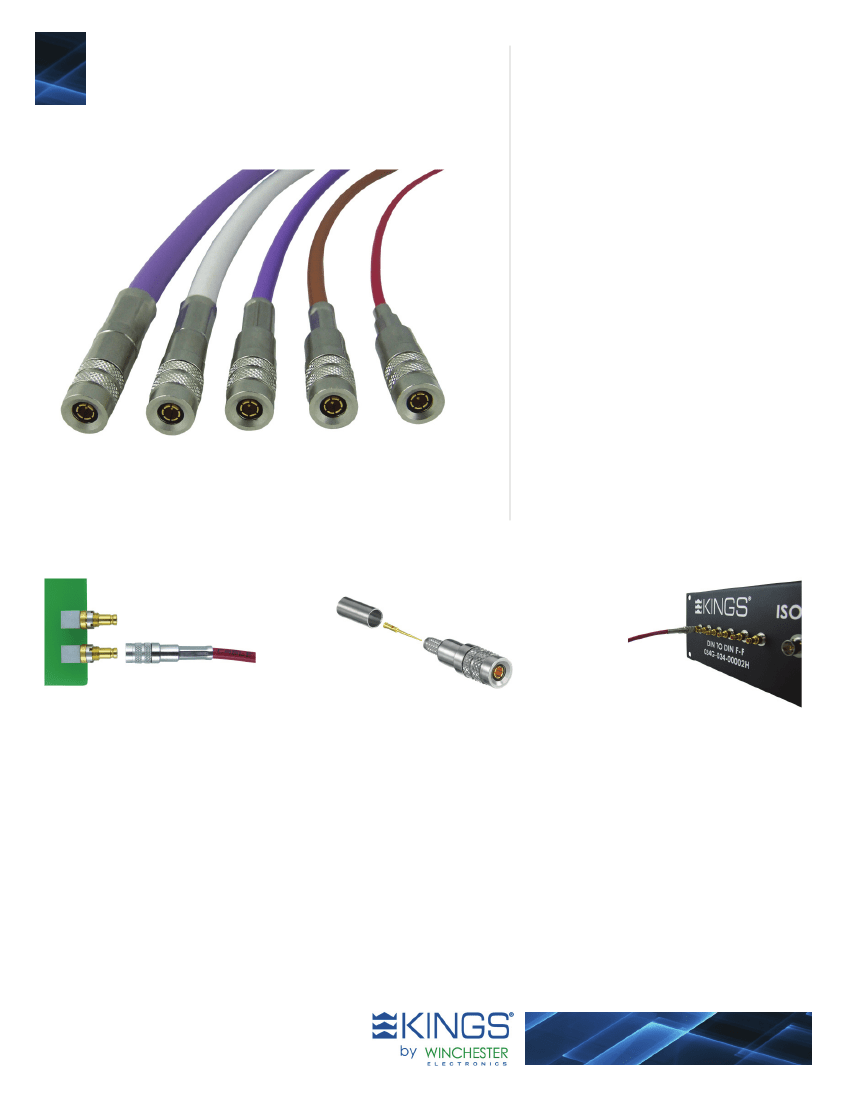

New 0345 Series DIN 1.0/2.3 Cable Plugs

feature a self-locking push/pull interface

that provides an audible snap and solid

tactile engagement when mated.

Cable Plugs are available for all popular

Broadcast Cables including Belden

1855A, 1505A, 1694A, 179DT, and

Argosy Image 360.

• DIN 1.0/2.3 Cable Plugs feature

precision machined components

designed to provide long-term

durability, reliability, and

performance.

• Crimp center contact features a

retention barb which snaps into the

insulator to prevent the pin contact

from backing out of the connector.

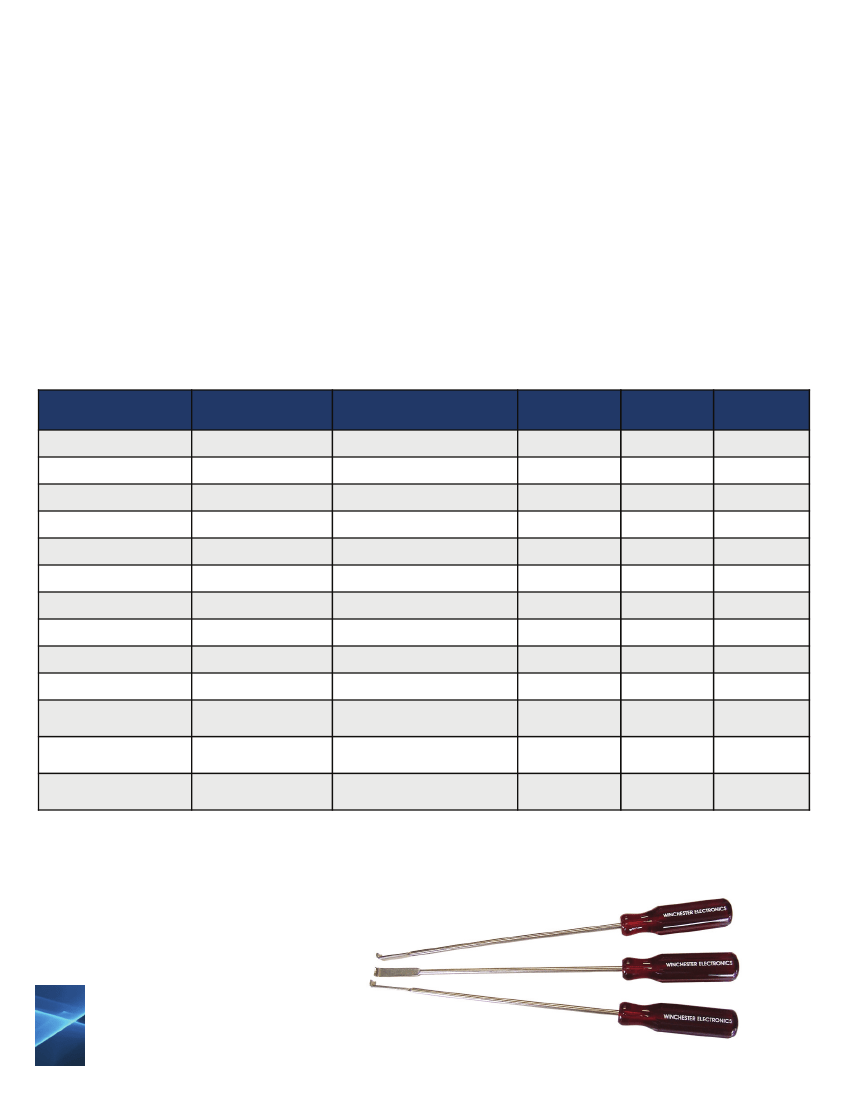

• DIN 1.0/2.3 Cable Plugs use the

same KTH-1000 Crimp Tool and Die

Sets as KINGS

®

popular 75 Ohm

Broadcast BNC Connectors.

• DIN 1.0/2.3 interface offers twice

the density of BNC Connectors

and is increasingly being used as

the interface of choice on today’s

high-end Broadcast equipment.

CONNECTING INNOVATION TO APPLICATION

®
