0402-40NKG: DescriptionGeneral Purpose Inductor, 0.04uH, 10%, 1 Element, Ceramic-Core, SMD; CategoryPassive components inductor; File Size24KB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

0402-40NKG Overview

General Purpose Inductor, 0.04uH, 10%, 1 Element, Ceramic-Core, SMD

0402-40NKG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	API Delevan
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
core material	CERAMIC
DC Resistance	0.43 Ω
Nominal inductance(L)	0.04 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Manufacturer's serial number	0402
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	24
Maximum rated current	0.32 A
self resonant frequency	2240 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Gold (Au)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	250 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

PA

RT

SERIES 0402 CERAMIC CORE

0402-1N0K

0402-2N0K

0402-2N2K

0402-3N3K

0402-3N6K

0402-3N9K

0402-5N1K

0402-5N6K

0402-6N2K

0402-7N5K

0402-8N2K

0402-9N0K

0402-10NK

0402-11NK

0402-12NK

0402-15NK

0402-19NK

0402-23NK

0402-27NK

0402-36NK

0402-40NK

1.0

2.0

2.2

3.3

3.6

3.9

5.1

5.6

6.2

7.5

8.2

9.0

10

11

12

15

19

23

27

36

40

16

18

19

20

22

24

250

6000

5800

4400

4160

3900

3680

3600

3280

3040

2720

2480

2320

2240

0.049

0.065

0.070

0.082

0.095

0.100

0.120

0.150

0.160

0.200

0.214

0.290

0.400

0.430

1360

1040

960

840

800

760

680

640

560

480

400

320

Q

Wirewound Surface Mount Inductors

IN

D

(n UCT

H) A

±1 NC

0% E

NU

MB

ER

Series 0402

Open Construction

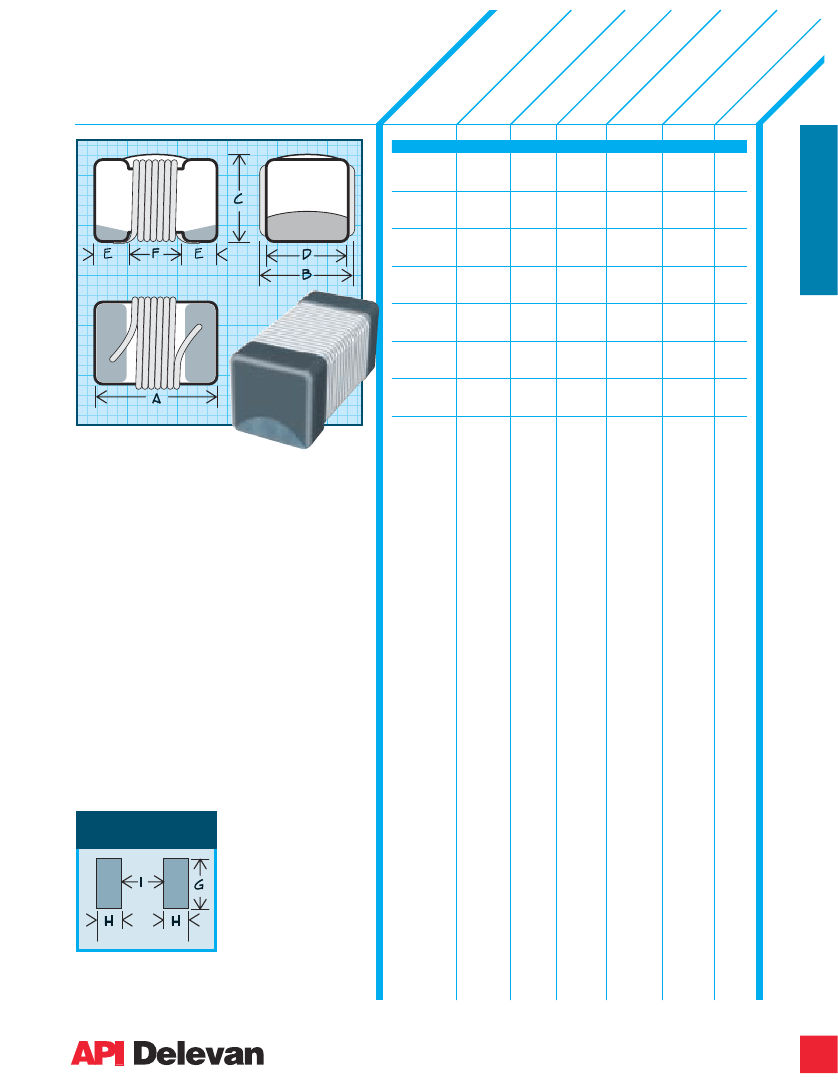

Physical Parameters

Inches

A

0.042 Max.

B

0.024 Max.

C

0.027 Max.

D

0.020 (Ref. Only)

E

0.009 (Ref. Only)

0.022 (Ref. Only)

F

G

0.026

H

0.014

I

0.018

Milimeters

1.08 Max.

0.60 Max.

0.68 Max.

0.51 (Ref. Only)

0.23 (Ref. Only)

0.56 (Ref. Only)

0.66

0.36

0.46

Operating Temperature Range

–40°C to +125°C

Standard Termination

90/10 Solder;

optional Gold Termination is available specify by

suffixing the part number with the letter G

Inductance and Q

tested on HP4291A using

HP16193A test ﬁxture

Packaging

Tape & reel (8mm): 7" reel,

4000 pieces max. Custom reel available.

LAND PATTERN

DIMENSIONS

www

.

delevan

.

com

E-mail: apisales@delevan.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814

2/ 2002

MI

NI

MU

M

IN

DU

FR CT

EQ AN

UE CE

NC &

Y QT

(M E

SR

Hz ST

F

)

MI

NI

MU

M

DC

(M

Hz

MA RES

)

XI IST

MU A

N

CU M ( CE

O

R

MA RE HM

S)

XI NT

MU R

M ATI

(m NG

A)

RF INDUCTORS
