Chip Inductors – 0402PA (1005)
With current ratings as high as 1.8 A, Coilcraft’s 0402PA
wirewound chip inductors are ideal for power amplifiers
in TDMA, CDMA, GSM and other wireless applications.
Compared to our standard 0402CS Series, they can
handle up to 65% more current and have half the DC
resistance. These inductors are perfect for use as an RF
choke for the power supply, the LC tank between ampli-
Part number
1
0402PA-0N8XJL_
0402PA-1N9X_L_
0402PA-3N4X_L_
0402PA-3N5X_L_
0402PA-5N8X_L_
0402PA-6N2X_L_
0402PA-8N2X_L_
Inductance
2
(nH)
0.78
1.9
3.4
3.5
5.8
6.2
8.2
Percent
tolerance
3
5
5,2
5,2
5,2
5,2
5,2
5,2
fier and antenna and in the amplifier bias circuit. Like our
other ceramic chip inductors, they feature outstanding self-
resonant frequencies and excellent Q values. Most values
are available in 2% inductance tolerance.
Coilcraft
Designer’s Kit C373
contains samples of all 5%
inductance tolerance parts. To order, contact Coilcraft or
visit
http://order.coilcraft.com.
1.7 GHz
L typ
Q typ
4
0.76
55
1.81
73
3.33
93
3.55
82
5.70
83
6.28
81
8.19
82
SRF typ
5
(MHz)
15200
12500
7200
8750
5450
4950
4650
DCR typ
6
(Ohms)
0.018
0.022
0.030
0.040
0.045
0.055
0.060
Irms
7
(mA)
1860
1700
1500
1400
1300
1150
1100
900 MHz
L typ
Q typ
4
0.79
35
1.83
50
3.36
51
3.51
58
5.76
56
6.17
57
8.15
58
1. When ordering, specify
tolerance, termination
and
packaging
codes:
0402PA-8N2XJLW
Tolerance: G
= 2%
J
= 5%
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit
E
= Halogen free component. RoHS compliant silver-
palladium-platinum-glass frit terminations.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37)
Packaging: W
= 7″ machine-ready reel. EIA-481 punched paper
tape (2000 parts per full reel).
U
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter W instead.
2. Inductance measured at 250 MHz using a Coilcraft SMD-F test fixture
and Coilcraft-provided correlation pieces with an Agilent/HP 4286 imped-
ance analyzer.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
5. For SRF >6 GHz, measured using an Agilent/HP 8722ES network
analyzer and a Coilcraft SMD-D test fixture. For SRF £6 GHz, measured
using anAgilent/HP 8753D network analyzer and a Coilcraft SMD-D test
fixture.
6. DCR measured on a micro-ohmmeter.
7. Current that causes a 15°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material
Ceramic
Environmental
RoHS compliant, halogen free optional
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
0.9 – 1.1 mg
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000 per 7″ reel. Paper tape: 8 mm wide, 0.68 mm thick,
2 mm pocket spacing
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 347-1
Revised 10/03/08
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 347-2

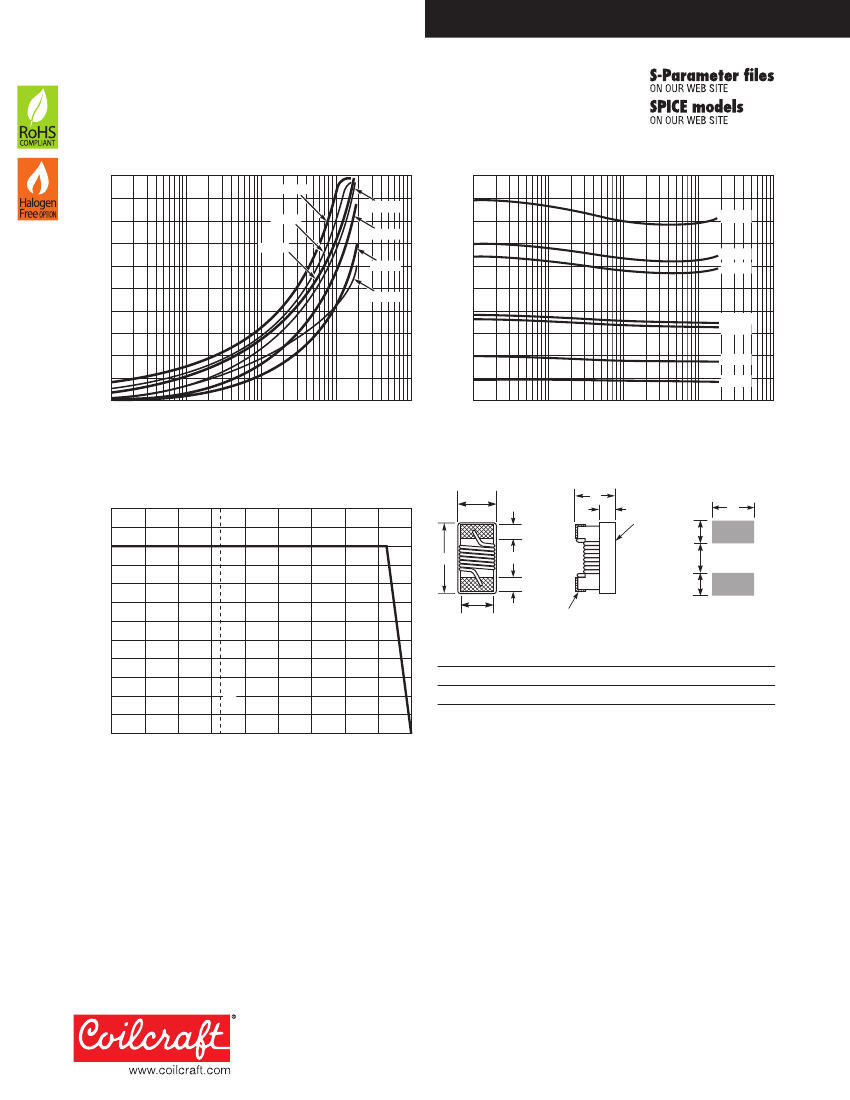

0402PA Series (1005)
Typical Q vs Frequency
100
90
80
70
3.4 nH
1.9 nH
5.8 nH
6.2 nH
Typical L vs Frequency
10
9
8
8.2 nH
Inductance (nH)
8.2 nH
3.5 nH
0.8 nH
7
6
5
4
3
2
1
3.5 nH
3.4 nH
1.9 nH
0.8 nH
1
10
100
1000
10000
6.2 nH
5.8 nH
Q Factor
60
50
40
30
20
10
0
1
10
100
1000
10000
0
Frequency (MHz)
Frequency (MHz)
Irms Derating
120
110
100
B
overall
F
C
D
Pick and
place
material
H
I
J
Percent of rated
I
rms
90
80
70
60
50
40
30
A
G
F
I
Terminal wraparound:
approx 0.007/0,18 both ends
E
terminal
Recommended
Land Pattern
A
max
25°C
B
max
0,64
C
max
0,66
D
ref
0,25
E
0,51
F
0,23
G
0,56
H
0,66
I
0,36
J
0,46 mm
0.047 0.025 0.026 0.010 0.020 0.009 0.022 0.026 0.014 0.018 inches
1,19
Note:
Height dimension (C) is before optional solder application. For maximum
height dimension including solder, add 0.006 in / 0,152 mm.
-40
-20
0
20
40
60
80
100
120 140
20
10
0
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 347-2
Revised 10/03/08
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
