040977001000: DescriptionPOWER/SIGNAL RELAY, SPST, LATCHED, 0.102A (COIL), 12VDC (COIL), 1224mW (COIL), 16A (CONTACT), 250VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size176KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

040977001000 Overview

POWER/SIGNAL RELAY, SPST, LATCHED, 0.102A (COIL), 12VDC (COIL), 1224mW (COIL), 16A (CONTACT), 250VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

040977001000 Parametric

Parameter Name	Attribute value
Objectid	1734442671
Reach Compliance Code	unknown
ECCN code	EAR99
body width	12.2 mm
body height	25.3 mm
Body length or diameter	28.5 mm
Maximum coil current (DC)	0.102 A
Coil operating voltage (DC)	8.9 V
Coil power	1224 mW
Coil release voltage (DC)	2.5 V
Coil resistance	118 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@440VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Contact (DC) maximum rated R load	16A@250VDC
Maximum contact voltage (AC)	440 V
Maximum contact voltage (DC)	250 V
Contact/Output Power Type	AC/DC
Electrical life	150000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	13 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	28.5mm x 12.2mm x 25.3mm
Relay action	LATCHED
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	6 ms
seal	RT2
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

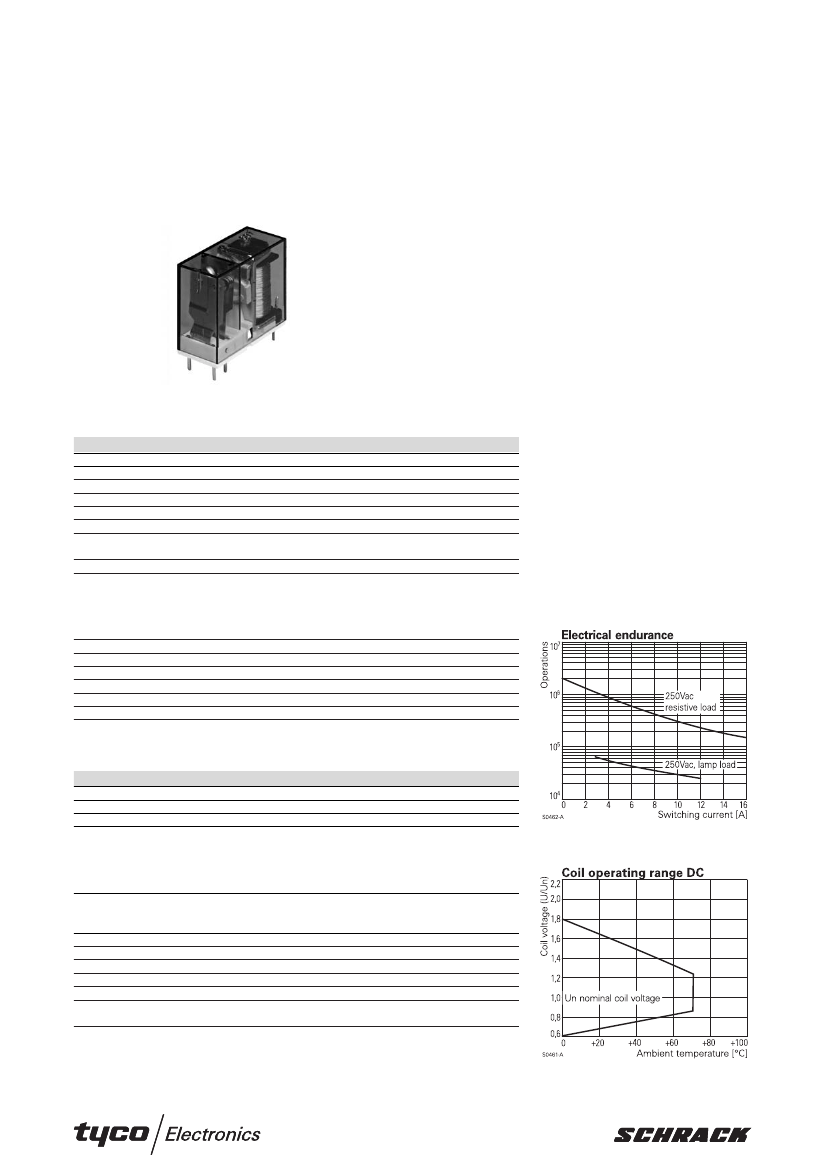

Special Load PCB Relay 409 57, 409 77

1 pole 16 A, for high inrush currents,

mono- or bistable

Features

•

Specifically designed to handle high inrush currents

1 N/O contact

DC- or bistable version

4 kV / 8 mm coil-contact

Applications

Lighting controls, filament loads, motors and electrovalves

F0249-A

Technical data of approved types on request

Z

(409 57 only)

Contact data

Configuration

Type of contact

Rated current

Rated voltage / max.breaking voltage AC

Rated voltage / max.breaking voltage DC

Maximum breaking capacity AC

Make current (max. 4 s at duty cycle 10%)

Peak inrush current

Contact material

1 N/O contact

single contact

16 A

250 Vac / 440 Vac

250 Vdc / 250 Vdc

4000 VA

25 A

120 A

AgSnO

2

Contact ratings

Type

Load

409 57 / 77

16 A, 250 Vac, cosϕ=1

409 57 / 77

1200 W, fluorescent lamps, 100 µF

409 57 / 77

2500 W, Filament lamps

409 57 / 77

800 W, Dulux lamps, 100 µF

409 57 / 77

capacitive load 10 A, 140 µF

Operations

1.5x10

5

3x10

4

3x10

4

2x10

4

3x10

4

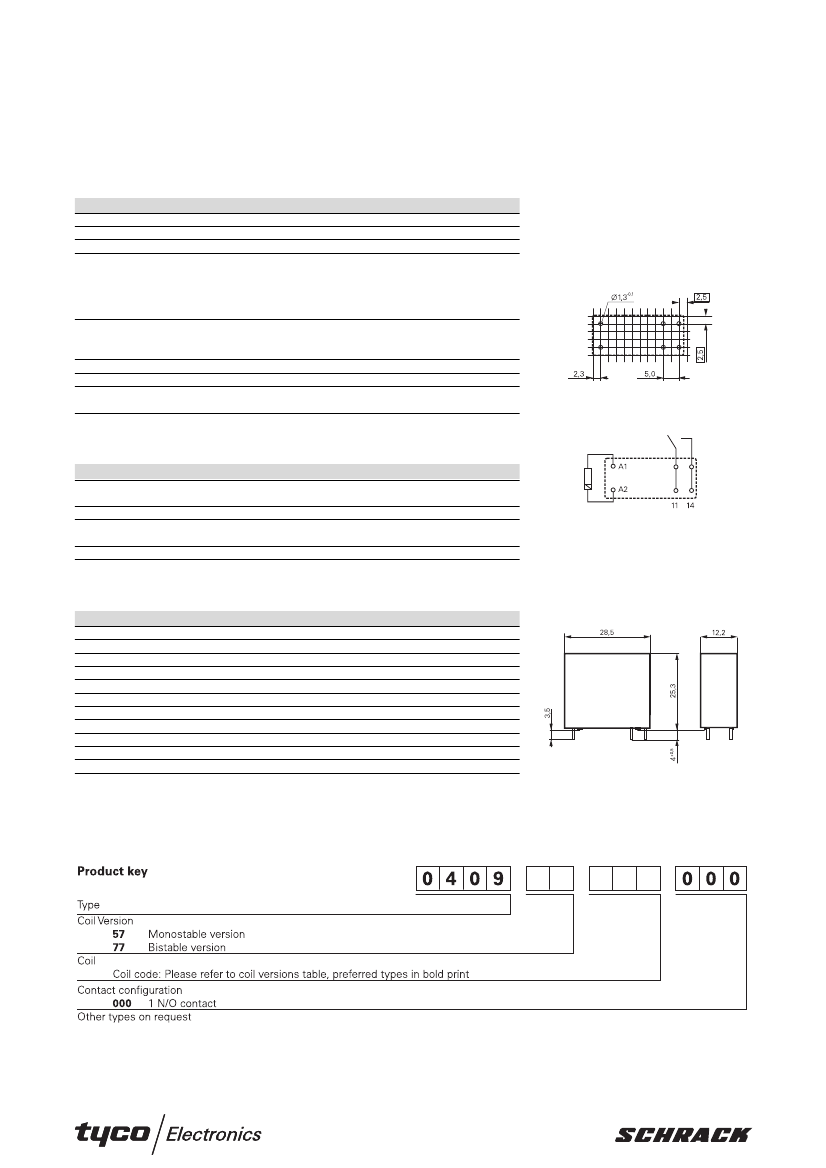

Standard

EN 61058-1

Coil data

Nominal voltage

Nominal coil power

Operate category

monostable DC coil

5...110 Vdc

530 mW

2/b

bistable, 1 coil

Edition: 01/2004

Coil versions monostable

Coil

Nominal

Pull-in

Release

Maximum

Coil

code

voltage

resistance

current

Vdc

c

mA

002

12

8.6

0.9

16.0

285+10%

42.1

001

24

17.3

1.8

31.0

1040+10%

22.0

007

48

34.5

3.6

62.0

4580+10%

10.5

003

60

43.2

4.5

78.0

6300+10%

9.5

005

110

79.3

7.5

142.0

20000+10%

5.5

All figures are given for coil without preenergization, at ambient temperature +20°C

Other coil voltages on request
