0440680266: DescriptionRectangular Power Connector, 4 Contact(s), Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0440680266 Overview

Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal, ROHS COMPLIANT

0440680266 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS AND REACH COMPIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

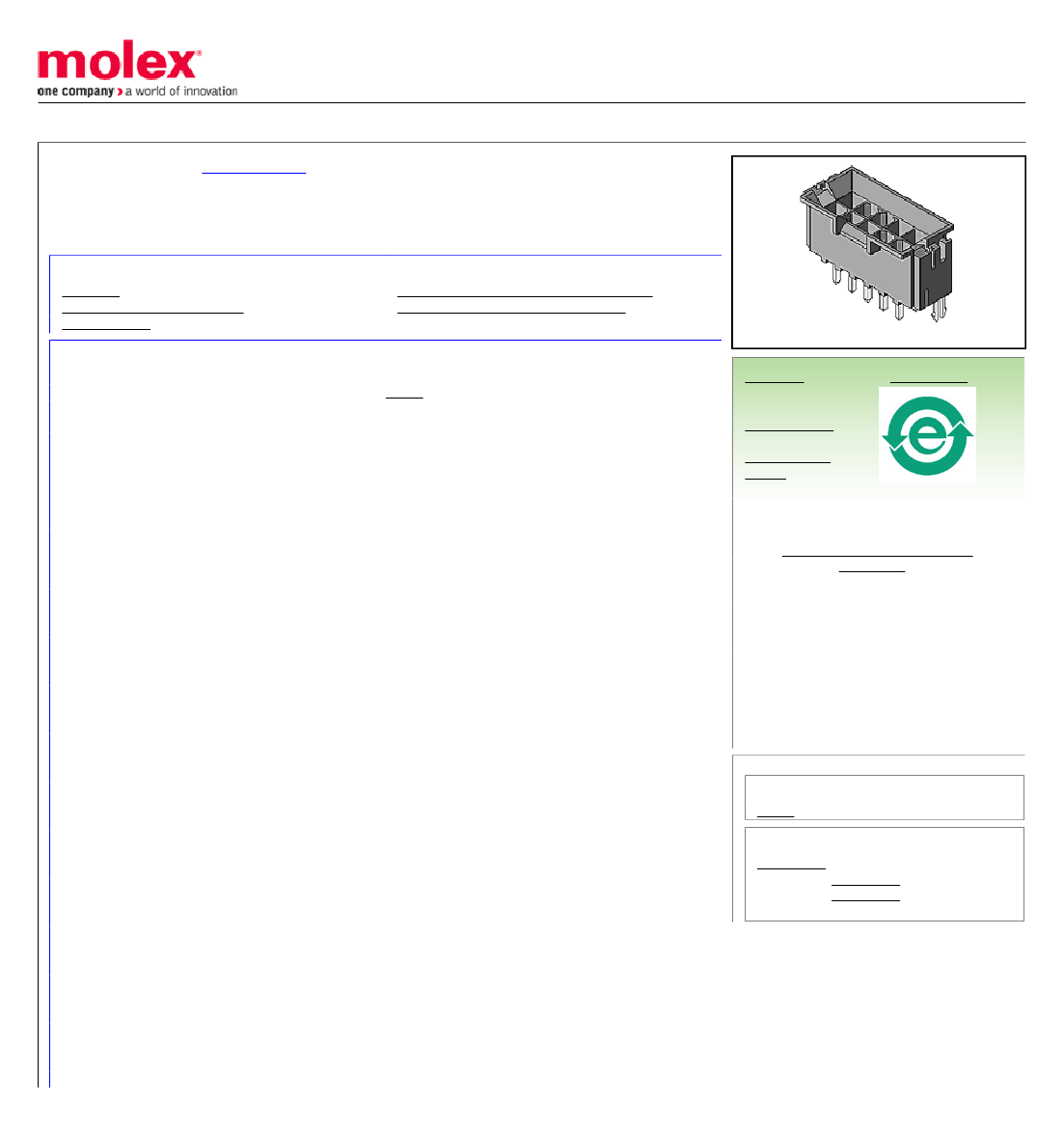

Preview

Download Datasheet

View All

This document was generated on 11/05/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0440680266

Active

4.20mm (.165") Pitch Mini-Fit BMI™ Surface Mount Compatible Header, Dual Row,

Vertical, 4 Circuits, 6.35mm (.250") PCB Thickness, with Snap-In Metal Pins, PA

Polyamide Nylon 4/6, UL 94V-0, with Tin (Sn) Over Nickel (Ni) Plating

Documents:

3D Model

Packaging Specification (PDF)

Drawing (PDF)

General

Product Family

Series

Application

Comments

Product Specification PS-43810-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

44068

Board-to-Board

Wire-to-Board

Current = 12A max. per circuit when header is

mated to a receptacle loaded with 45750 series

terminals crimped to 16 AWG wire.. See Molex product

specification PS-45750-001 for additional current de-

rating information.

Mini-Fit BMI™

Black

Yes

None

Yes

Brass

Tin

High Temperature Thermoplastic

Vertical

0.335 In

8.50 mm

Yes

0.250 In

6.30 mm

Tray

0.165 In

4.20 mm

101.6

2.54

101.6

2.54

Yes

Fully

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

Duration at Max.

Process Temperature

(seconds)

Lead-free Process

Capability

Max. Cycles at Max.

Process Temperature

max. C

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

SMC & Wave Capable

(TH only)

235

Search Parts in this Series

44068 Series

Mates With

15-06-0041 Mini-Fit BMI™ Panel Mount

Receptacle, 39-01-2045 Mini-Fit Jr.™

Receptacle, 15-24-7041 Mini-Fit BMI™

Receptacle Header
