046270015000829+ datasheet, PDF

046270015000829+: DescriptionCONNECTOR, 15 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT; CategoryThe connector The connector; File Size269KB，2 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

046270015000829+ Overview

CONNECTOR, 15 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	15
Base Number Matches	1

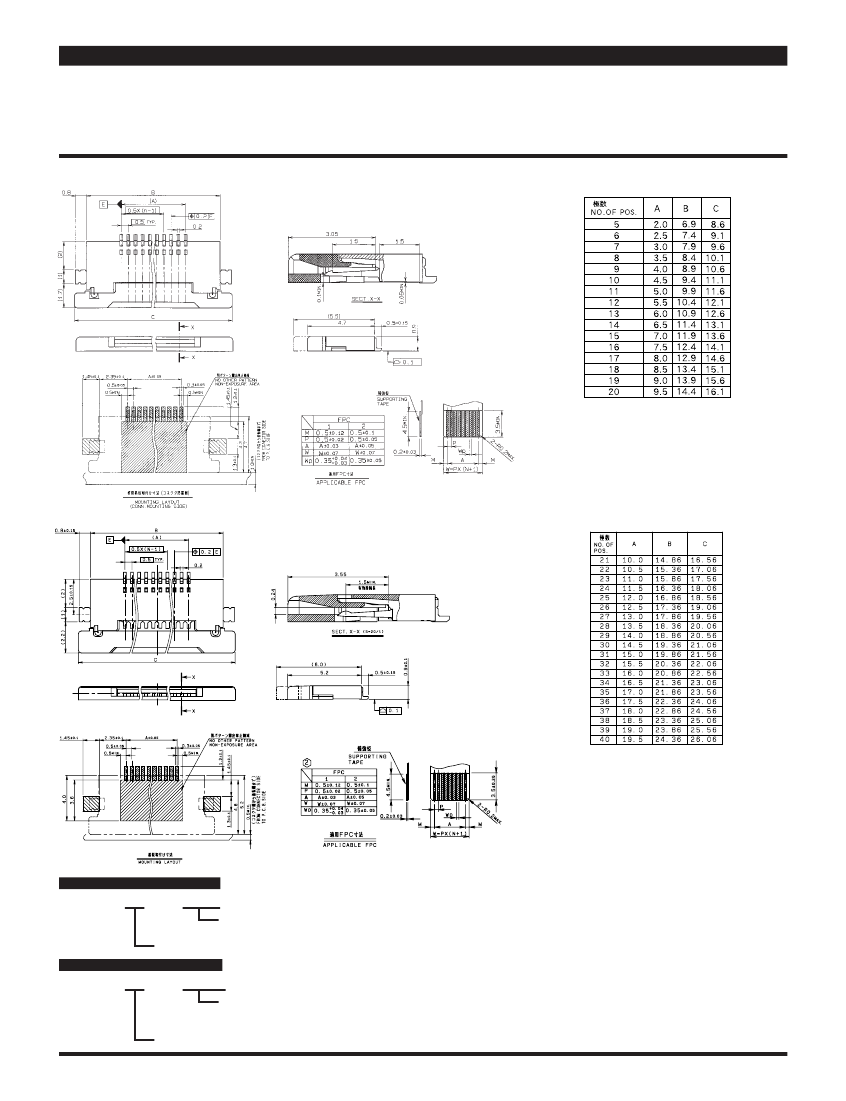

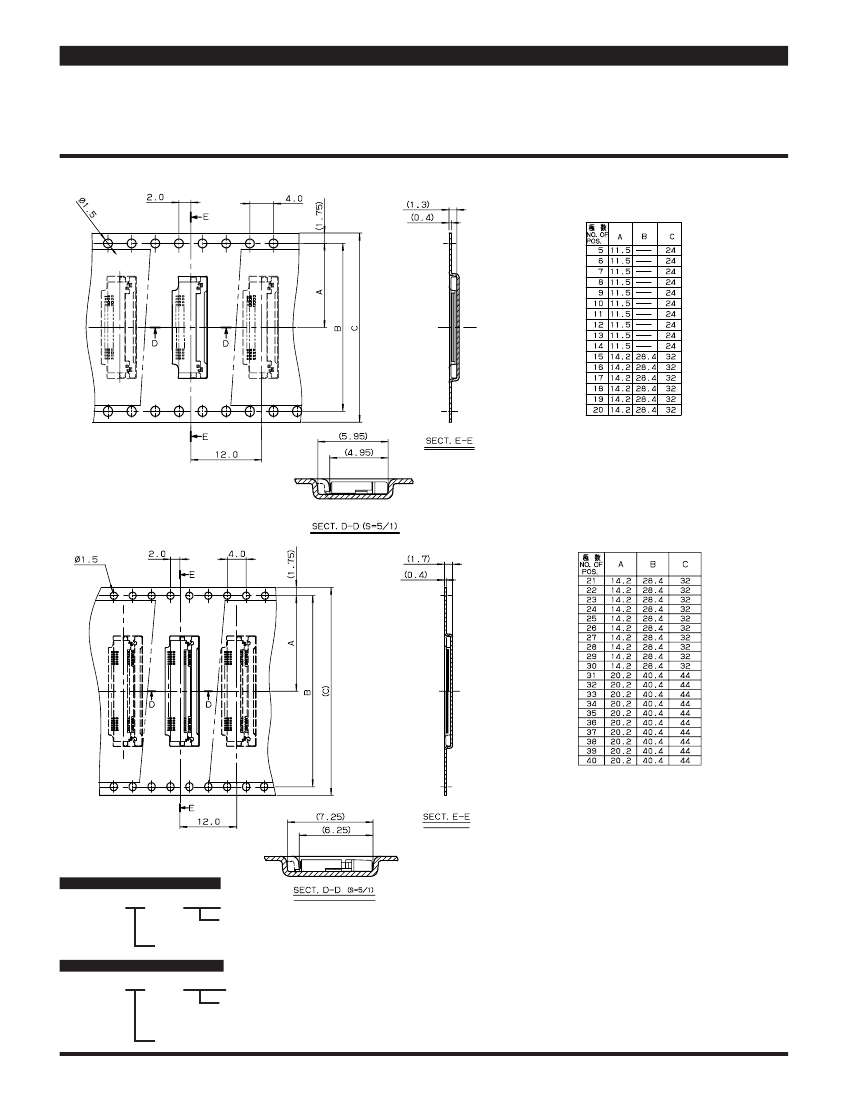

0.5mm Pitch

SERIES

6250/6270

0.5mmピッチ RA SMT

下接点スライドロック

0.5mmPitch RA SMT Bottom contact Slide lock

生産対応可½極数については、営業部にご確認願います。

Feel free to contact our sales department for

available numbers of positions.

注文コード

ORDERING CODE

04 6250 0XX 000 800 X

800+：スズ銅めっき Sn-Cu Plated（RoHS対応品 RoHS Compliant Product）

800：スズ鉛めっき Sn-Pb Plated

極数

NUMBER OF POSITIONS

注文コード

ORDERING CODE

04 6270 0XX 000 XXX X

829+：金めっき Au Plated（RoHS対応品 RoHS Compliant Product）

829：金めっき Au Plated

800：スズ鉛めっき Sn-Pb Plated

カーボンフレキ対応

C/Ag type

極数

NUMBER OF POSITIONS
