04629611211800 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 04629611211800

Preview

04629611211800: DescriptionCard Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

04629611211800 Overview

Card Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

04629611211800 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN COPPER
Contact completed and terminated	TIN COPPER
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e2
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

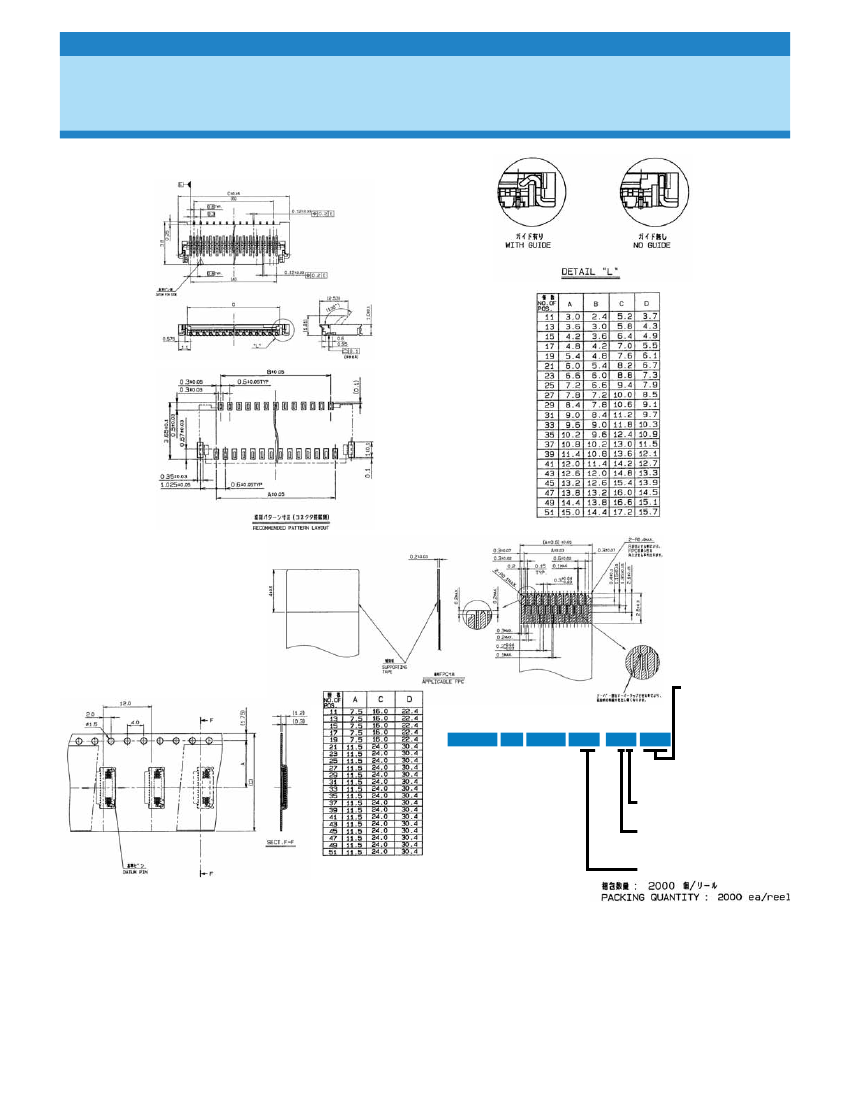

0.3mm Pitch

SERIES

6296

●CONNECTOR

0.3mmピッチ RA SMT

ワンタッチロックタイプ

Type of 0.3mm-pitch, RA, SMT, One-touch locking operation

●エンボス梱包品

Tape and Reel Package

The corner R improves

the easiness of FPC insertion

With the tapered area overlapped. the FPC is

prevented from damage when flipped.

注文コード/Ordering

Code

Part No.

04 6296 0xx X

2xx X

xxx

メッキコード Plating code

800＋：錫銅めっき Tin-copper plating

（鉛フリー：Lead-free）

883＋：金めっき Au plating

（鉛フリー：Lead-free）

800 ：錫銅めっき Tin-copper plating

883 ：金めっき Au plating

FPCガイド FPC guide

0：ガイド有り 0：With guide

1：ガイド無し 1：No guide

FPC仮保持強度 Strength of FPC temporary retainer

0：TYPE-A

1：TYPE-B

（強度：TYPE-A＞TYPE-B）（Strength：TYPE-A＞TYPE-B）

注）生産対応可½極数については、営業部にご確認願います

Note）Feel free to contact our sales department for the

number of positions we can offer now.

極数
