052-615-9072990 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 052-615-9072990

Preview

052-615-9072990: DescriptionRF Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

052-615-9072990 Overview

RF Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack

052-615-9072990 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	BMB
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TFE FLUOROCARBON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMS
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

RF Coaxial Connectors

Jacks

SMS (BMB

TM

)

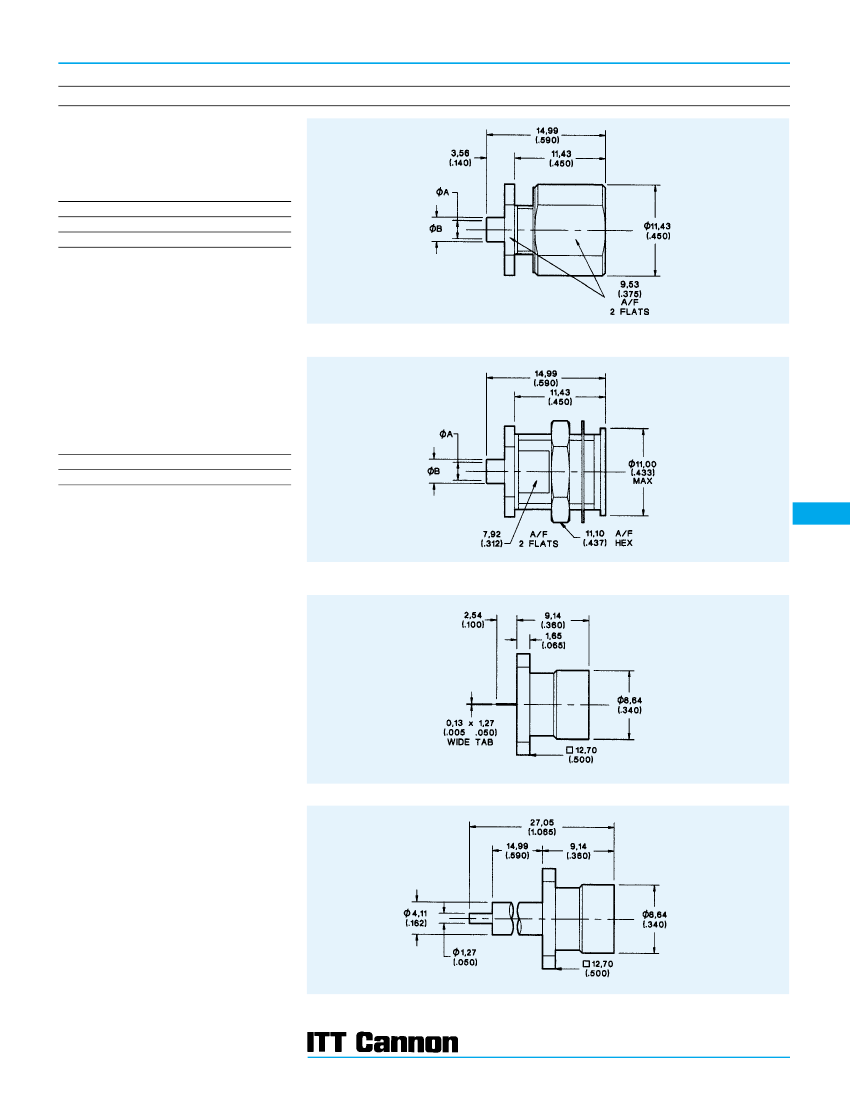

Straight Jack, Bulkhead Mount, Direct Solder

Part Number

052-610-9137990

052-610-9237990

Cable Size

2,16 (.085)

3,59 (.141)

A

2,29 (.090)

3,69 (.145)

B

3,05 (.120)

4,58 (.180)

Mounting Plan L (Page 108). Assembly Instruction AI-436 (Page 119)

Straight Jack, Recessed Bulkhead Mount,

Direct Solder

Part Number

052-615-9072990

Cable Size

2,16 (.085)

A

2,29 (.090)

B

3,05 (.120)

SMS

Mounting Plan DD (Page 109). Assembly Instruction AI-436 (Page 119)

Jack Receptacle, Square Flange Mount *,

Tab Contact

Part Number

052-645-4575990

Jack Receptacle, Square Flange Mount *,

Stub Contact

Part Number

052-645-4520990

* Flange dimensions are shown in the SMA section

(Page 13).

Dimensions are shown in mm (inch)

Dimensions subject to change

79
