355-072-500-201 datasheet, PDF

Datasheet> All Categories > The connector> 355-072-500-201

355-072-500-201: Descriptionstandard card edge connectors 72p .156" x .140" black; CategoryThe connector; File Size235KB，3 Pages; ManufacturerEDAC; Environmental Compliance

Download Datasheet Parametric Compare View All

355-072-500-201 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	355-072-500-201	-	-	View	Buy Now

355-072-500-201 Overview

standard card edge connectors 72p .156" x .140" black

355-072-500-201 Parametric

Parameter Name	Attribute value
Manufacture	EDAC
Product Category	Standard Card Edge Connectors
RoHS	Yes
Factory Pack Quantity	25

Preview

Download Datasheet

View All

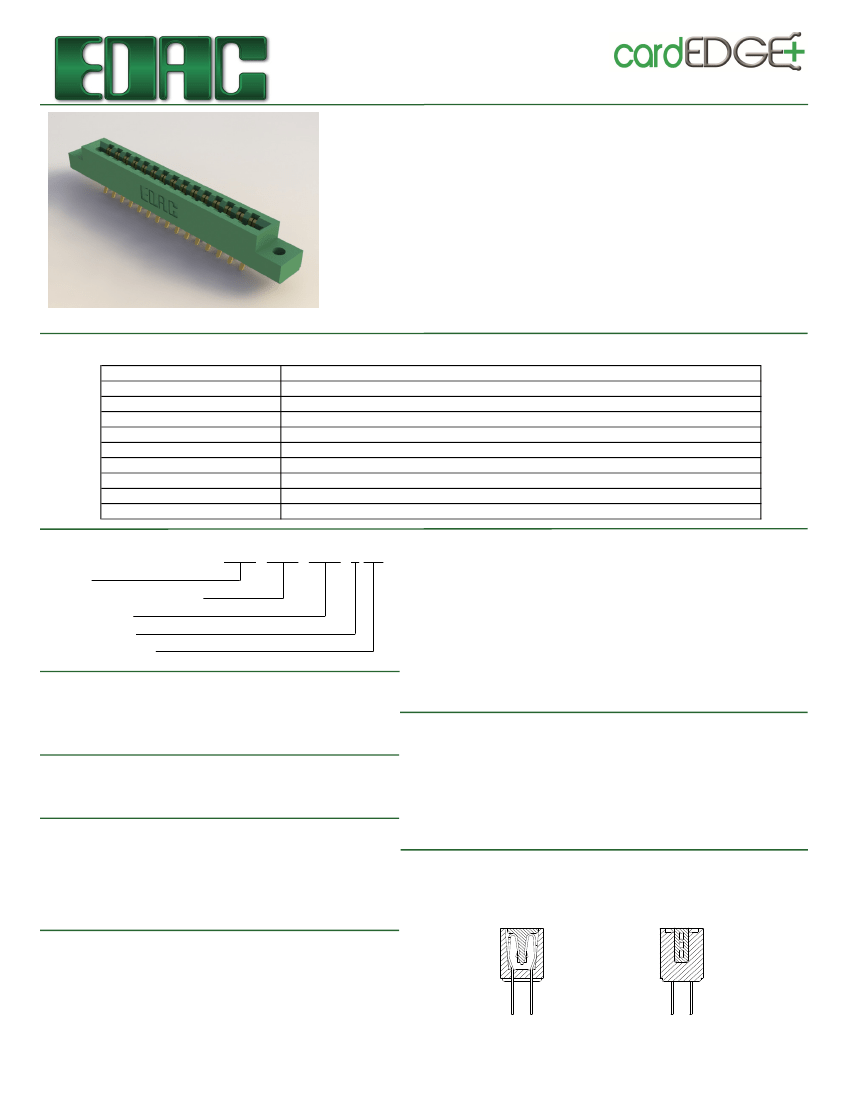

305/315/355 SERIES

Card Edge Connector 0.156" (3.96mm) Pitch

FEATURES:

•

.156" (3.96mm) Contact Spacing x .140" (3.56mm) Row Spacing

Accepts .062" (1.57mm) Nominal Thickness P.C. Board

Low Profile Insulator Body, .470" (11.94mm)

Contact Termination Options include P.C. Tail, Wire Hole,

Extender Board Bends

Single or Dual Row Configurations

Large Variety of Mounting Options

Accepts between Contact and In-Contact Polarizing Keys

Pre-assembled Card Guides are available

•

Specifications:

Insulator Material

Contact Material

Contact Plating

Current Rating

Contact Resistance

Dielectric Withstand Voltage

Insulation Resistance

Operating Temperature

Insertion Force

Withdrawal Force

RoHS Compliant & UL Recognize

UL 94V-0 Thermoplastic Polyester

Copper Alloy

Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over

5 Amperes

10 milliohms maximum

1800 VAC rms at sea level between adjacent contacts

5000 Megohms minimum

-40°C to +105°C

16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge

1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge

Example Part Number:

Series

Total Number of Contacts

Contact Code

Insulator Style

Mounting Options

305-056-521-202

Mounting Options:

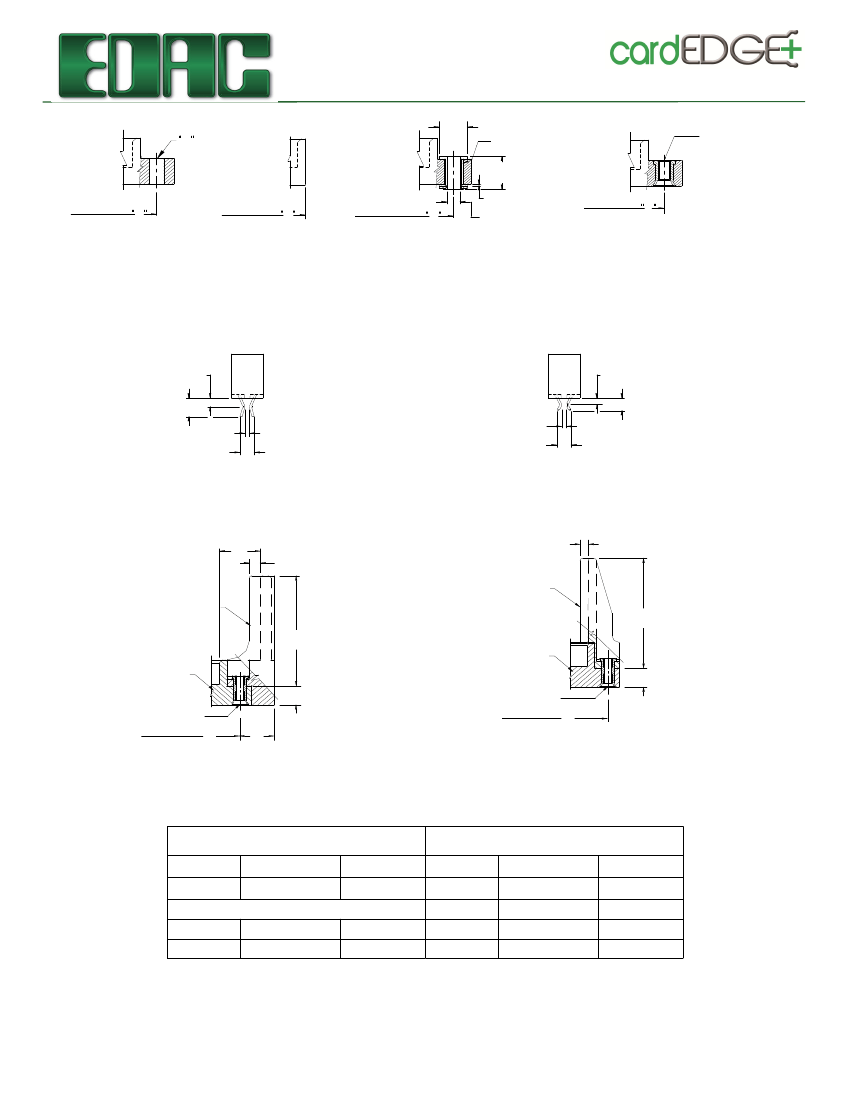

Description

Series:

305

315

355

Insulator Color

Green

Black

Card Slot Length

Standard Length per MIL-C-21097

.020"(0.51mm) Shorter than Standard

Standard Length per MIL-C-21097

No Mounting Lug

Ø.128" (Ø3.25mm) Mounting Holes

Ø.116" (Ø2.95mm) I.D. Floating Eyelets

Ø.156" (Ø3.96mm) Mounting Holes

M3-0.5 Metric Threaded Inserts

#4-40 Unified Threaded Inserts

Ø.128" (Ø3.25mm) Side Mounting Holes

.468" (11.89mm) Offset Card Guides

.344 (8.74) Offset Card Guides

In-Line Card Guides 2.750" (69.85mm) Long

Ordering Code Notes:

1) All connector sizes up to 86 contacts dual row are available upon request.

2) For details of the extender board bends refer to next pages.

3) Consult with EDAC Inc. regarding single row configuration and wire wrap tail

options

4) Insulator style code 5 is available for the 305 and 355 series upon request.

5) For details of the mounting options refer to next pages.

Total Number of Contacts:

012, 014, . . . . 086

Contact Rows

Dual Row

Contact Code Description & Tail Size

500

520

521

555

556

Wire Hole

.087 x .013 (2.21 x 0.33)

P.C. Tail

.046 x .013 (1.17 x 0.33)

P.C. Tail

.046 x .013 (1.17 x 0.33)

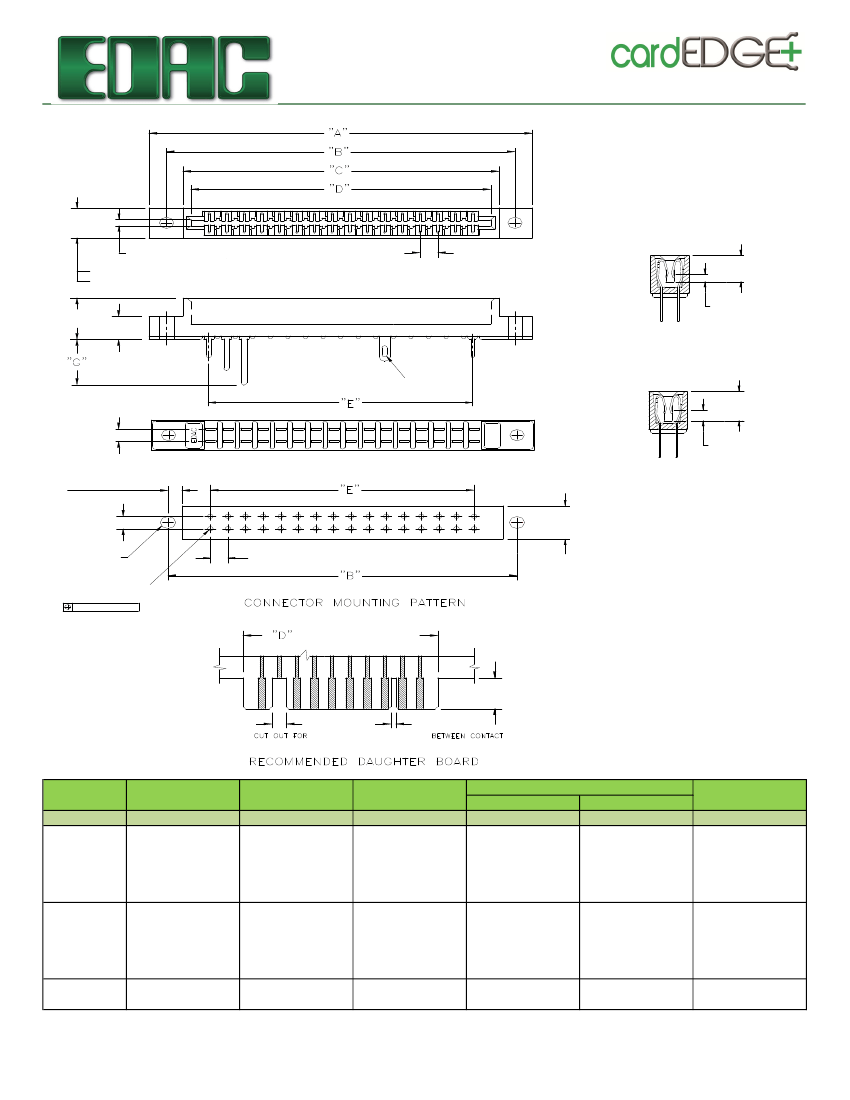

EXTENDER BOARD BEND (Code 500 Contacts)

EXTENDER BOARD BEND (Code 520 Contacts)

Tail Length "G"

.282 (7.16)

.213 (5.41)

.125 (3.18)

BETWEEN CONTACT

POLARIZING KEY

P/N 306-240-318

IN-CONTACT

POLARIZING KEY

P/N 307-240-328

Insulator Style

Description

.295 (7.49) Card Slot Depth

.330 (8.38) Card Slot Depth

www.edac.net

355-072-500-201 Related Products

	355-072-500-201	305-050-500-201
Description	standard card edge connectors 72p .156" x .140" black	standard card edge connectors 50p .156" x .140" green
Manufacture	EDAC	EDAC
Product Category	Standard Card Edge Connectors	Standard Card Edge Connectors
RoHS	Yes	Yes
Factory Pack Quantity	25	1
