Mill-Max Micro-Miniature Organic Fibre Plug® Receptacle
P/N: 0321
.084” - .102”
[2,13 - 2,59]
P/N: 4428
.008” - .013”
[0,2 - 0,33]

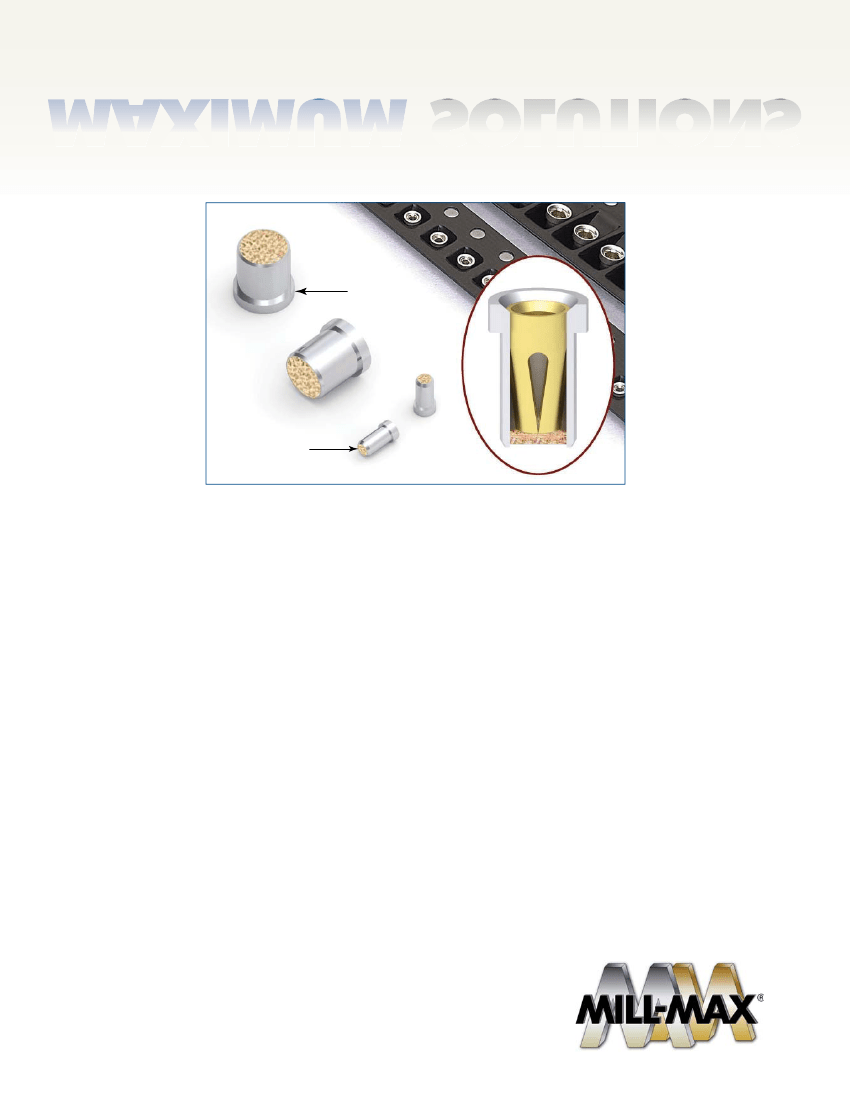

Mill-Max has added a micro-miniature option to our organic fibre plug® receptacle lineup. The new-
est Mill-Max socket receptacle, 4428-0-43-15-04-14-10-0, is our tiniest OFP® receptacle ever. Opti-
mized for high-density packaging down to 1 mm pitch, this micro-miniature, ultra-low profile recep-
tacle accepts .008”-.013” device leads or mating pins and can be soldered into a hole as small as .030.”
Mill-Max’s Organic Fibre Plug (OFP®) solder barrier receptacles are discrete sockets for through-hole
soldering into printed circuit boards. These open bottom receptacles are fitted with Organic Fibre
Plugs® to prevent contamination of the internal contact during the soldering process. When the
device/mating lead is plugged into the receptacle, the OFP® is knocked out, allowing the mating lead
to pass through the fingers of the internal contact and make a reliable electrical connection. Like all
Mill-Max OFP® receptacles, the 4428 features an open bottom construction designed for pin pass-
through requirements such as board-to-board or board to module interconnection.
The 4428 is also available packaged on tape & reel, part number 4428-0-67-15-04-14-10-0. Tape &
reel packaging permits these through-hole components to be placed simultaneously with surface
mount parts on pick-’n-place assembly lines – eliminating the need to hand place the receptacles in
an additional manufacturing step.
Mill-Max 4428 features a gold plated, precision-machined brass shell assembled with our exclusive
#04 gold plated beryllium copper contact clip with a 2 amp current rating.
For more information, please visit:
www.mill-max.com/PR630.
(7/13 -- PR630)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771
516-922-6000 • Fax: 516-922-9253 •
www.mill-max.com

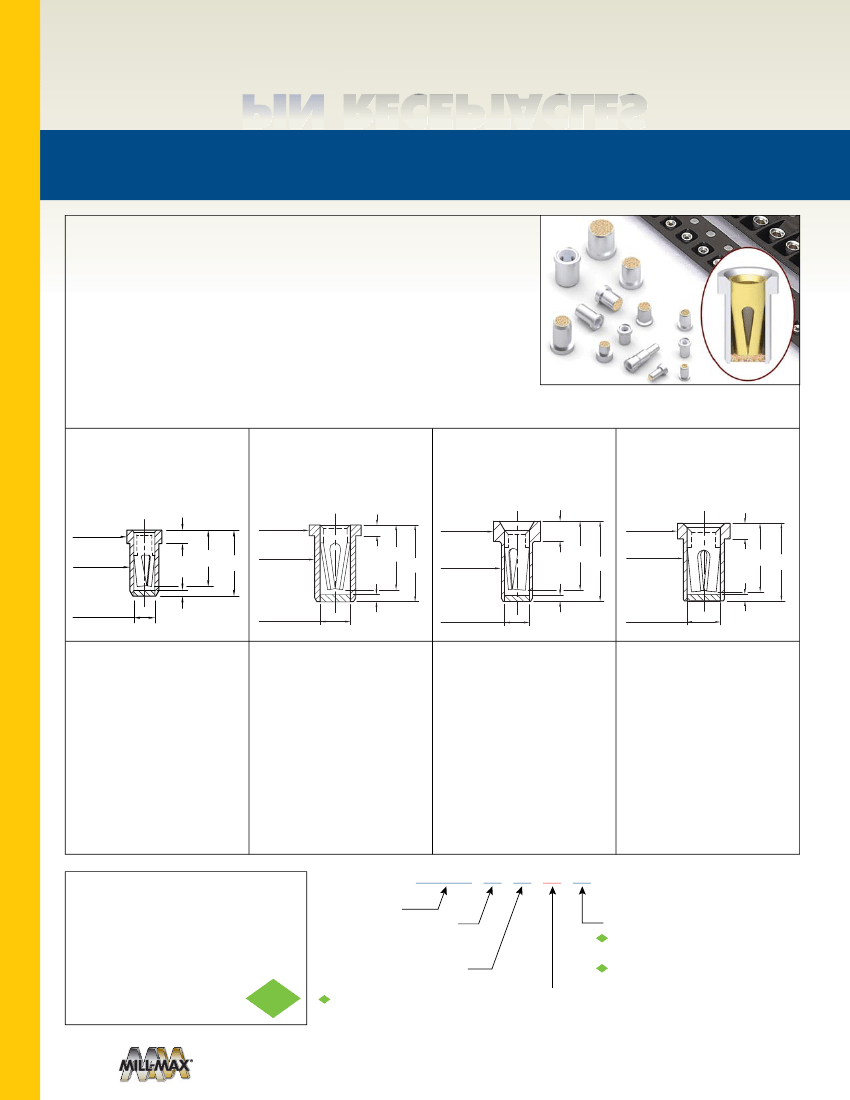

PIN
RECEPTACLES
PIN RECEPTACLES
WITH ORGANIC FIBRE PLUG
®
SOLDER BARRIER
(SEE SPECIFIC CONTACT RANGE ON PAGES 250, 251 & 253)
•
These
through-hole (tubular) receptacles are designed for hand, wave or
reflow soldering.
The
ORGANIC FIBRE PLUG
®
barrier prevents solder paste or
fl
ux from
contaminating
the spring
contact.
•
After
soldering, the
OFP
®
barrier is pushed out of the receptacle when the
device is plugged in.
•
All
parts are available as discrete receptacles or supplied on
carrier
tape per
EIA-481
to feed industry standard pick and place machines.
Intrusive reflow (also called “pin-in-paste”) is a technique of using conventional through-hole
components in a reflow soldering process. The receptacles are placed into plated through-holes in the
circuit board (solder paste has previously been screen printed on pads adjacent to the holes) and the
board is reflowed in the same pass as other SMT components. Solder will fill the plated through-holes and achieve solder joints as reliable as wave soldering.
The OFP® barrier prevents solder paste from being picked-up inside the contact during pick ‘n place assembly. “Overprinting” paste on the solder mask can be used
to adjust the volume of paste required to fill each hole.
4428
4428-0-XX-XX-04-XX-10-0
Solder
mount in
Ø
.032” max. PTH
#04
Contact
for
Ø
.008” - .013” pins
Also
available on
16mm
wide
carrier
tape:
3,400 parts per
13”
reel
5359
5359-0-XX-XX-10-XX-10-0
Solder
mount in
Ø
.043”
±
.003” PTH
#10
Contact
for
Ø
.012” - .017” pins
Also
available on
16mm
wide
carrier
tape:
3,000 parts per
13”
reel
.048 DIA.
0577
0577-0-XX-XX-21-XX-10-0
Solder
mount in
Ø
.045”
±
.003” PTH
#21
Contact
for
Ø
.015” - .022” pins
Also
available on
12mm
wide
carrier
tape:
3,000 parts per
13”
reel
.058 DIA.
4015
4015-0-XX-XX-30-XX-10-0
Solder
mount in
Ø
.057”
±
.003” PTH
#30
Contact
for
Ø
.015” - .025” pins
Also
available on 8mm wide
carrier
tape:
5,500 parts per
13”
reel
.068 DIA.
.034 DIA.
.028 DIA.
.013
.055 .064
.038 DIA.
.010
.060
.071
.025
.086
.020
.089
.100
.040 DIA.
.052 DIA.
.100
.0205 DIA.
.006
.028 DIA.
.009
.031 DIA.
.009
.043 DIA.
.009
PAGE 196 | PIN RECEPTACLES
SPECIFICATIONS:
Shell
Material:
Brass Alloy
360,
1/2 Hard
Contact
Material:
Beryllium Copper Alloy 172, HT
Solder Barrier:
Organic Fibre Plug
®
Dimensions: Inches
Tolerances
On:
Lengths:
±
.005
Diameters: ±
.002
Angles:
±
2
°
RoHS - 2
2011/65/EU
ORDER
CODE: XXXX
-
0
-
XX
-
XX
-
XX
-
XX
-
XX
-
0
BASIC
PART
#
SPECIFY CONTACT
FINISH:
SPECIFY
PACKAGING:
27
30 ”
GOLD
OVER NICKEL (RoHS)
43
Discrete
Receptacles
02
100
”
TIN/LEAD
OVER NICKEL
67
Supplied
on
13”
Reels
84
200 ”
TIN
OVER NICKEL (RoHS)
SPECIFY SHELL
FINISH:
01
200 ”
TIN/LEAD
OVER NICKEL
80
200 ”
TIN
OVER NICKEL (RoHS)
CONTACT:
#04, #10, #21
or
#30
CONTACT
(DATA ON PAGES 250, 251 & 253)
