059AT1002HLF

Description
General Purpose Inductor, 10uH, 10%, 1 Element, ROHS COMPLIANT
CategoryPassive components    inductor
File Size2MB，2 Pages
ManufacturerGowanda Electronics
Environmental Compliance
Download Datasheet Parametric View All

059AT1002HLF Overview

General Purpose Inductor, 10uH, 10%, 1 Element, ROHS COMPLIANT

059AT1002HLF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerGowanda Electronics
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
DC Resistance0.008 Ω
Nominal inductance(L)10 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberATLF
Number of functions1
Number of terminals2
Maximum operating temperature130 °C
Minimum operating temperature-55 °C
Maximum rated current14.5 A
self resonant frequency20 MHz
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency0.001 MHz
Tolerance10%
Base Number Matches1

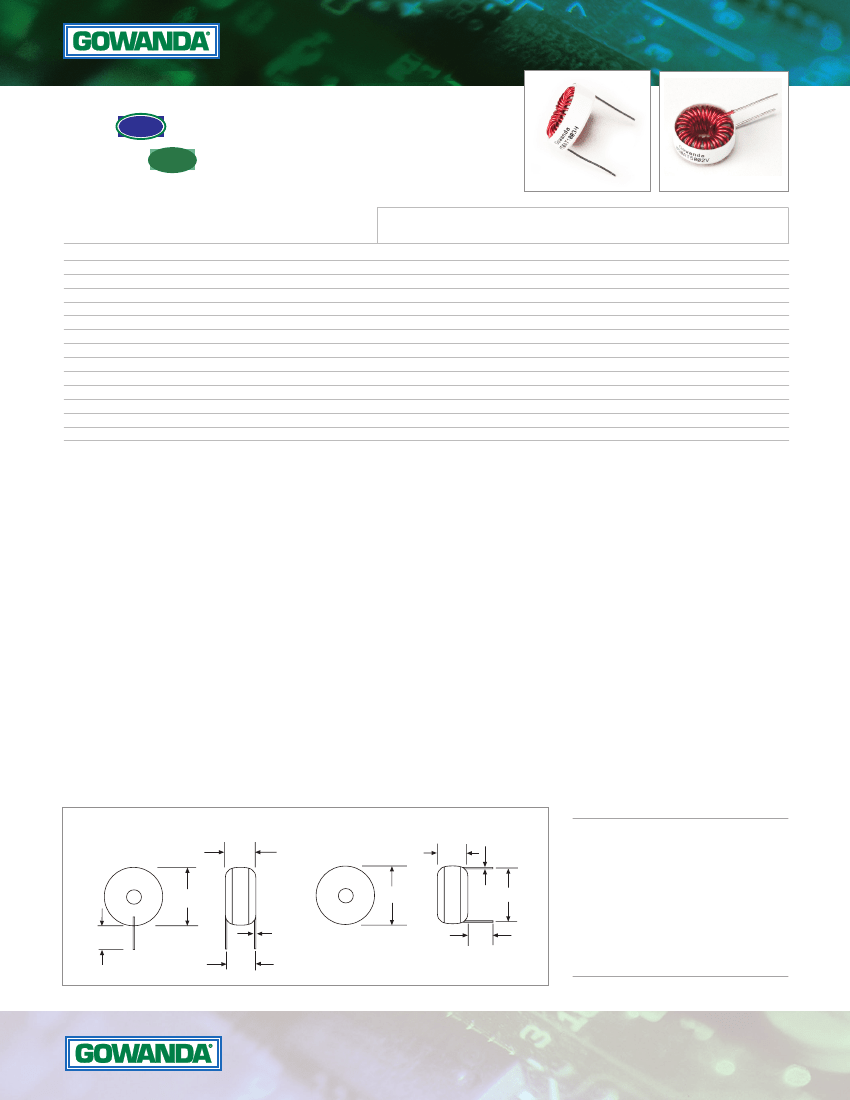

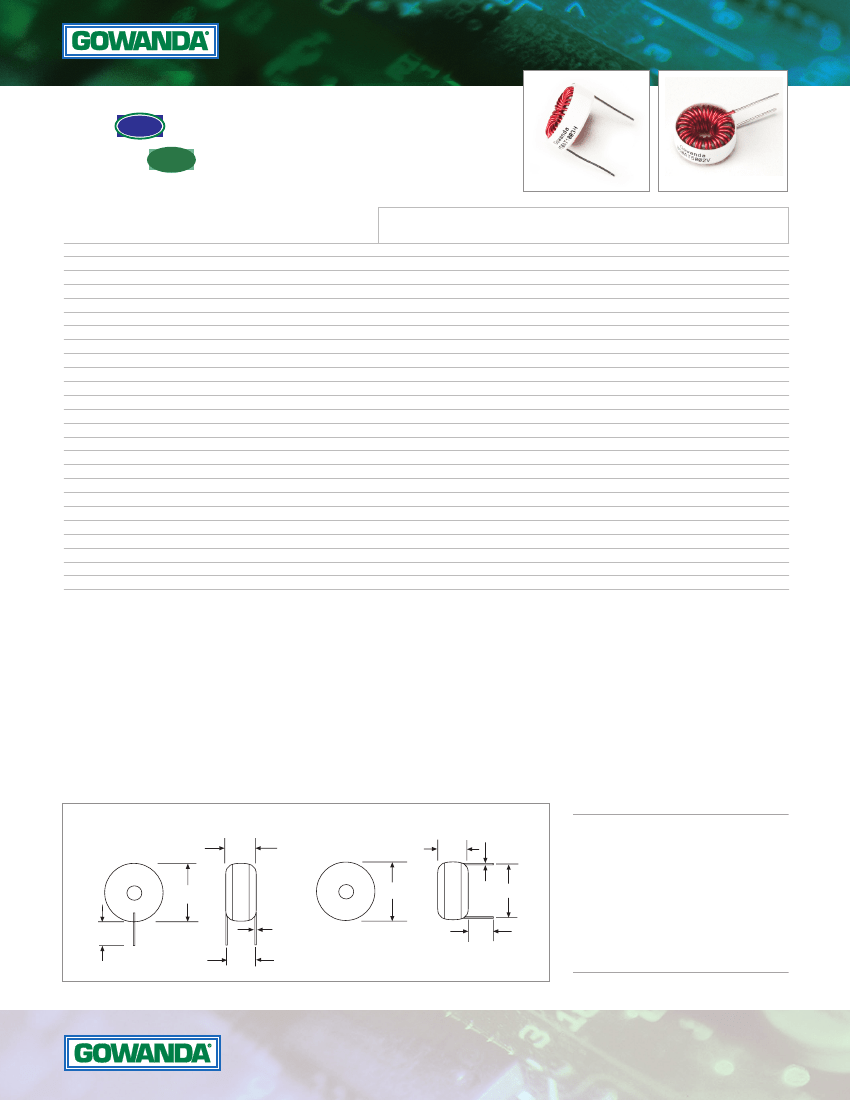

Preview

Download Datasheet
STANDARD POWER INDUCTORS - THRU HOLE
AT
ATLF
*
TRADITIONAL
Pb
COMPLIANT
RoHS
Wirewound,Toroidal
PART
L µH
NUMBER
@ 1kHz
050AT1002
+
10
050AT2502
+
25
+
050AT5002
50
050AT7502
+
75
+
050AT1003
100
050AT1503
+
150
+
050AT2003
200
050AT2503
+
250
+
050AT3303
330
121AT1002
+
10
+
121AT2502
25
121AT5002
+
50
+
121AT7502
75
121AT1003
+
100
121AT1503
+
150
121AT2503
+
250
+
059AT1002
10
059AT2502
+
25
059AT5002
+
50
059AT7502
+
75
059AT1003
+
100
059AT1503
+
150
059AT2503
+
250
+
059AT5003
500
059AT7503
+
750
SRF
MHz
MIN
35.0
10.0
7.0
5.0
4.0
2.0
1.7
1.5
1.0
20.0
8.0
4.0
3.0
2.0
1.5
1.0
20.0
8.0
4.0
3.0
2.0
1.0
1.0
0.8
0.6
DCR CURRENT INC I
OHMS RATING A DC
MAX
A DC
∆L
10%
0.010
7.36
6.00
0.020
5.20
3.60
0.035
3.93
2.00
0.045
3.47
1.60
0.055
3.14
1.50
0.100
2.33
1.20
0.140
1.97
1.00
0.160
1.84
0.90
0.190
1.69
0.80
0.010
8.27
9.0
0.017
6.34
7.0
0.030
4.77
3.9
0.045
3.90
3.9
0.065
3.24
3.4
0.095
2.68
3.3
0.160
2.07
2.2
0.008
14.5
15.0
0.011
9.8
11.0
0.022
6.9
8.3
0.030
5.9
6.7
0.044
4.9
6.5
0.052
4.5
4.2
0.088
3.5
4.0
0.160
2.6
2.7
0.240
2.1
1.8
INC I
A DC
∆L
20%
8.70
5.30
3.10
2.50
2.20
1.80
1.60
1.40
1.20
14.0
10.5
6.0
5.8
5.2
4.8
3.2
20.0
16.0
12.0
9.1
8.2
6.0
5.6
3.8
2.7
A
NOM
0.625 (15.88)
0.625 (15.88)
0.625 (15.88)
0.625 (15.88)
0.625 (15.88)
0.625 (15.88)
0.625 (15.88)
0.625 (15.88)
0.625 (15.88)
0.820 (20.83)
0.820 (20.83)
0.820 (20.83)
0.820 (20.83)
0.820 (20.83)
0.850 (21.59)
0.850 (21.59)
1.100 (27.94)
1.100 (27.94)
1.100 (27.94)
1.100 (27.94)
1.100 (27.94)
1.100 (27.94)
1.150 (29.21)
1.150 (29.21)
1.150 (29.21)
B
NOM
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.400 (10.16)
0.400 (10.16)
0.400 (10.16)
0.400 (10.16)
0.400 (10.16)
0.400 (10.16)
0.400 (10.16)
0.475 (12.07)
0.475 (12.07)
0.475 (12.07)
0.475 (12.07)
0.475 (12.07)
0.475 (12.07)
0.475 (12.07)
0.475 (12.07)
0.475 (12.07)
Horizontal
DIMENSIONS
C
D
NOM
NOM
0.250 (6.35)
0.500 (12.70)
0.250 (6.35)
0.500 (12.70)
0.250 (6.35)
0.500 (12.70)
0.250 (6.35)
0.500 (12.70)
0.250 (6.35)
0.500 (12.70)
0.250 (6.35)
0.500 (12.70)
0.250 (6.35)
0.500 (12.70)
0.250 (6.35)
0.500 (12.70)
0.250 (6.35)
0.500 (12.70)
0.320 (8.13)
0.500 (12.70)
0.320 (8.13)
0.500 (12.70)
0.320 (8.13)
0.500 (12.70)
0.320 (8.13)
0.500 (12.70)
0.320 (8.13)
0.500 (12.70)
0.320 (8.13)
0.500 (12.70)
0.320 (8.13)
0.500 (12.70)
0.370 (9.40)
0.500 (12.70)
0.370 (9.40)
0.500 (12.70)
0.370 (9.40)
0.500 (12.70)
0.370 (9.40)
0.500 (12.70)
0.370 (9.40)
0.500 (12.70)
0.450 (11.43) 0.500 (12.70)
0.450 (11.43) 0.500 (12.70)
0.450 (11.43) 0.500 (12.70)
0.450 (11.43) 0.500 (12.70)
Vertical
E
NOM
0.036 (0.91)
0.032 (0.81)
0.028 (0.71)
0.025 (0.64)
0.025 (0.64)
0.020 (0.51)
0.018 (0.46)
0.018 (0.46)
0.018 (0.46)
0.040 (1.02)
0.040 (1.02)
0.036 (0.91)
0.032 (0.81)
0.028 (0.71)
0.025 (0.64)
0.023 (0.58)
0.051 (1.30)
0.051 (1.30)
0.045 (1.14)
0.040 (1.02)
0.036 (0.91)
0.036 (0.91)
0.032 (0.81)
0.028 (0.71)
0.025 (0.64)
F
NOM
0.600 (15.24)
0.600 (15.24)
0.600 (15.24)
0.600 (15.24)
0.600 (15.24)
0.600 (15.24)
0.600 (15.24)
0.600 (15.24)
0.600 (15.24)
0.780 (19.81)
0.780 (19.81)
0.780 (19.81)
0.780 (19.81)
0.780 (19.81)
0.780 (19.81)
0.780 (19.81)
1.050 (26.67)
1.050 (26.67)
1.050 (26.67)
1.050 (26.67)
1.050 (26.67)
1.050 (26.67)
1.050 (26.67)
1.050 (26.67)
1.050 (26.67)
All part numbers provide 10% tolerance on inductance
+ Substitute “V” for Vertical Mount or “H” for Horizontal Mount
Custom designs are available to meet your specific requirements; please contact factory.
continued next page
*Add “LF” suffix for RoHS requirement. Example: 050AT1002HLF
VERTICAL CONFIGURATION
Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.
B
These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.
A
D
C
VERTICAL CONFIGURATION
B
HORIZONTAL CONFIGURATION
B
E DIA
NOTES:
E DIA
• Operating Temperature Range:
-55°C to +130°C
• Current Rating is based on a 40°C temperature
rise at an ambient temperature of 90°C
F
A
A
• Incremental Current is the approximate value
that will cause a percentage drop in inductance
as indicated in the table
• Excellent Electromagnetic Shielding
D
C
HORIZONTAL CONFIGURATION
B
E DIA
D
• Leads are stripped and tinned to within 0.062 in.
of the coil body
in. (mm)
PACKAGING SPECS:
Bulk only
E DIA
A
F
One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com
www.gowanda.com
D
031414
