059KM2502HCLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 059KM2502HCLF

059KM2502HCLF: DescriptionGeneral Purpose Inductor, 25uH, 10%, 1 Element, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

059KM2502HCLF Overview

General Purpose Inductor, 25uH, 10%, 1 Element, ROHS COMPLIANT

059KM2502HCLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Gowanda Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
DC Resistance	0.011 Ω
Nominal inductance(L)	25 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	KMHCLF
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Maximum rated current	9.8 A
self resonant frequency	5 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

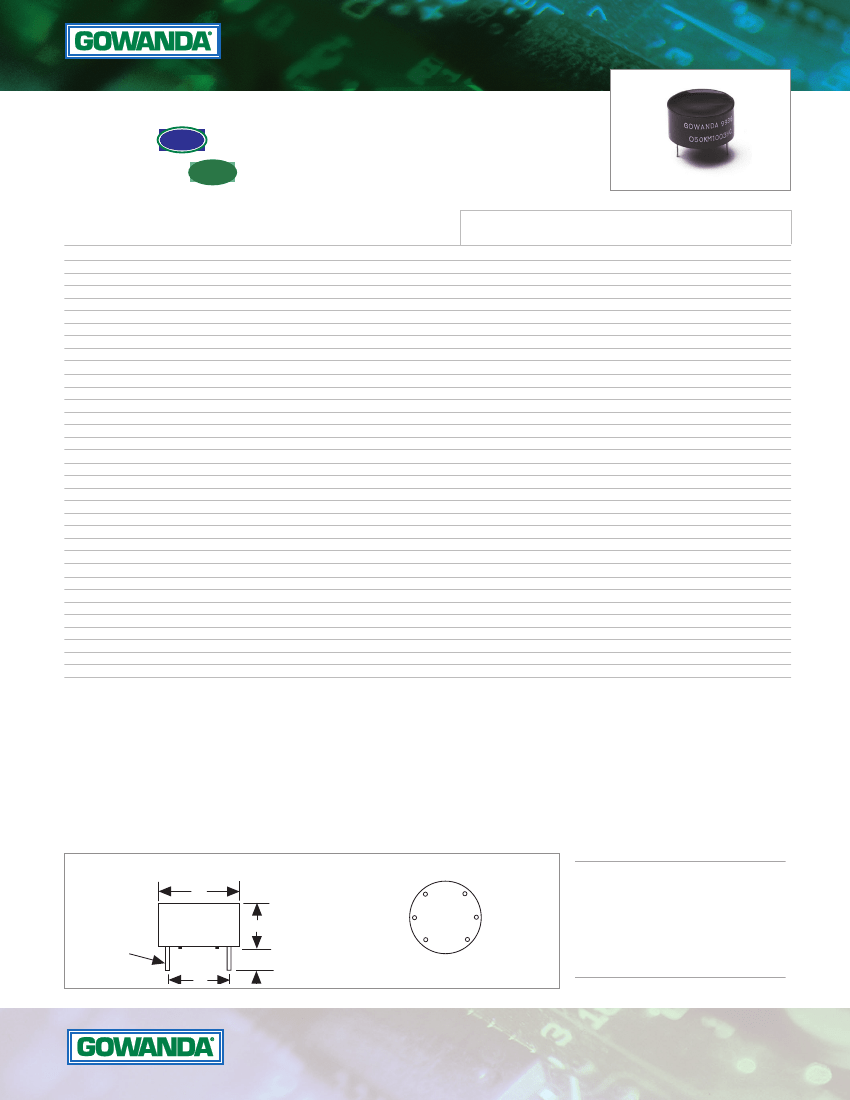

STANDARD POWER INDUCTORS - THRU HOLE

KMHC

KMHCLF

PART

NUMBER

050KM1002HC

050KM2502HC

050KM5002HC

050KM7502HC

050KM1003HC

050KM1503HC

050KM2003HC

050KM2503HC

050KM3303HC

121KM1002HC

121KM2502HC

121KM5002HC

121KM7502HC

121KM1003HC

121KM1503HC

121KM2503HC

059KM1002HC

059KM2502HC

059KM5002HC

059KM7502HC

059KM1003HC

059KM1503HC

059KM2503HC

059KM5003HC

059KM7503HC

894KM2502HC

894KM5002HC

894KM7502HC

894KM1003HC

894KM1503HC

894KM2503HC

894KM5003HC

894KM7503HC

894KM1004HC

TRADITIONAL

COMPLIANT

RoHS

Wirewound,Toroidal, Horizontal Mount, Potted

L µH

@ 1kHz

100

150

200

250

330

100

150

250

100

150

250

500

750

100

150

250

500

750

1000

SRF

MHz

MIN

20.0

6.0

3.5

2.5

2.0

1.0

0.7

0.5

0.3

10.0

5.0

2.5

2.0

1.5

1.0

0.9

10.0

5.0

3.0

2.0

1.5

1.0

0.8

0.6

0.4

5.0

2.5

2.0

1.5

1.0

0.8

0.6

0.4

0.3

DCR

OHMS

MAX

0.010

0.020

0.035

0.045

0.055

0.100

0.140

0.160

0.190

0.010

0.017

0.030

0.045

0.065

0.095

0.160

0.008

0.011

0.022

0.030

0.044

0.052

0.088

0.160

0.240

0.012

0.016

0.023

0.035

0.060

0.131

0.160

0.235

CURRENT

RATING

A DC

7.36

5.20

3.93

3.47

3.14

2.33

1.97

1.84

1.69

8.27

6.34

4.77

3.90

3.24

2.68

2.07

14.50

9.80

6.90

5.90

4.90

4.50

3.50

2.60

2.10

12.80

9.90

8.00

6.50

5.00

3.40

3.00

2.40

INC I

A DC

∆L

10%

1.70

1.00

0.70

0.60

0.50

0.40

0.35

0.31

0.27

5.30

3.30

2.30

1.80

1.60

1.30

0.90

7.60

4.70

3.30

3.00

2.40

1.90

1.50

1.10

0.90

6.60

4.20

3.70

3.50

2.30

1.90

1.40

1.20

1.00

INC I

A DC

∆L

20%

3.30

1.90

1.30

1.10

0.96

0.78

0.65

0.59

0.50

9.10

5.70

4.00

3.10

2.80

2.20

1.70

13.00

8.30

5.70

4.90

4.20

3.40

2.70

1.80

1.60

11.00

7.40

6.40

6.00

4.30

3.20

2.50

2.10

1.80

NOM

0.750 (19.05)

0.950 (24.13)

1.250 (31.75)

1.450 (36.83)

DIMENSIONS

NOM

0.425 (10.80)

0.550 (13.97)

0.650 (16.51)

0.850 (21.59)

0.560 (14.22)

0.750 (26.67)

1.050 (26.67)

1.200 (30.48)

NOM

0.036 (0.91)

0.032 (0.81)

0.028 (0.71)

0.025 (0.64)

0.020 (0.51)

0.018 (0.46)

0.040 (1.02)

0.036 (0.91)

0.032 (0.81)

0.028 (0.71)

0.025 (0.64)

0.023 (0.58)

0.051 (1.30)

0.045 (1.14)

0.040 (1.02)

0.036 (0.91)

0.032 (0.81)

0.028 (0.71)

0.025 (0.64)

0.051 (1.30)

0.045 (1.14)

0.040 (1.02)

0.032 (0.81)

0.028 (0.71)

All part numbers provide 10% tolerance on inductance

Custom designs are available to meet your specic requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: 050KM1002HCLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.

These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

SIDE VIEW

GOWANDA

XXXKMXXXXHC

0.250 ± 0.062

(6.35 ± 1.57)

BOTTOM VIEW

NOTES:

• Operating Temperature Range:

-55°C to +130°C

• Current Rating is based on a 40°C temperature

rise at an ambient temperature of 90°C

• Incremental current is the approximate value

that will cause a percentage drop in

inductance as indicated in the table

in. (mm)

PACKAGING SPECS:

Bulk only

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

021814
