05CK-6H-P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 05CK-6H-P

05CK-6H-P: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, IDC Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size138KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

05CK-6H-P Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, IDC Terminal, Receptacle, ROHS COMPLIANT

05CK-6H-P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	LOW PROFILE
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CK
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

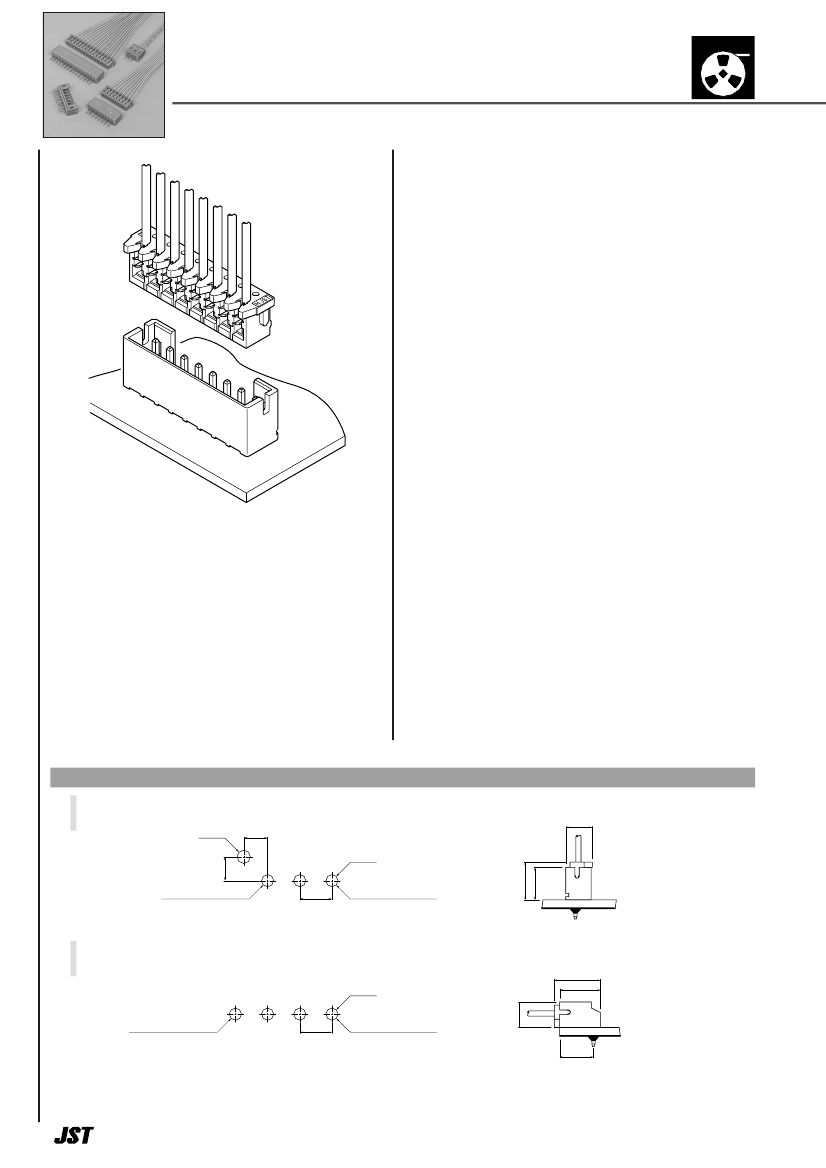

CONNECTOR

Emboss Tape

2.0mm pitch/Disconnectable Insulation displacement connectors

Specifications –––––––––––––––––––

• Current rating: 2A AC, DC (AWG #26)

• Voltage rating: 100V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/10m

Ω

max.

After environmental testing/20m

Ω

max.

• Insulation resistance:

1,000M

Ω

min.

• Withstanding voltage: 800V AC/minute

• Applicable wire: UL1061, UL10272(Contact JST for details

regarding other UL styles.)

AWG #28, #26

Conductor/tin-plated annealed copper strands

Insulation O.D./0.75 to 1.05mm

• Applicable PC board thickness: 0.8 to 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Multi-harness of CK connector (2.0mm)

and CZ connector (1.5mm) combination

has been realized. The in-line type IDC

features low profile design with 6.9mm

mounting height and 4.8mm thickness (top

entry type).

• UL10272 wire is applicable

• Folded beam double-leaf contact construction

• Twin U-slot insulation displacement section

• Strain relief

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

PC board layout (viewed from component side) and Assembly layout

Top entry type

4.8

＋0.1

φ0.8

1.5

±0.05

＋0.1

φ0.7

1.5

±0.05

Reverse type:Circuit No.1

2.0

±0.05

Normal type:Circuit No.1

Side entry type

8.5

7.6

4.8

Reverse type:Circuit No.1

2.0

±0.05

φ0.7

＋0.1

Normal type:Circuit No.1

6.25

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.

6.9

6.0
