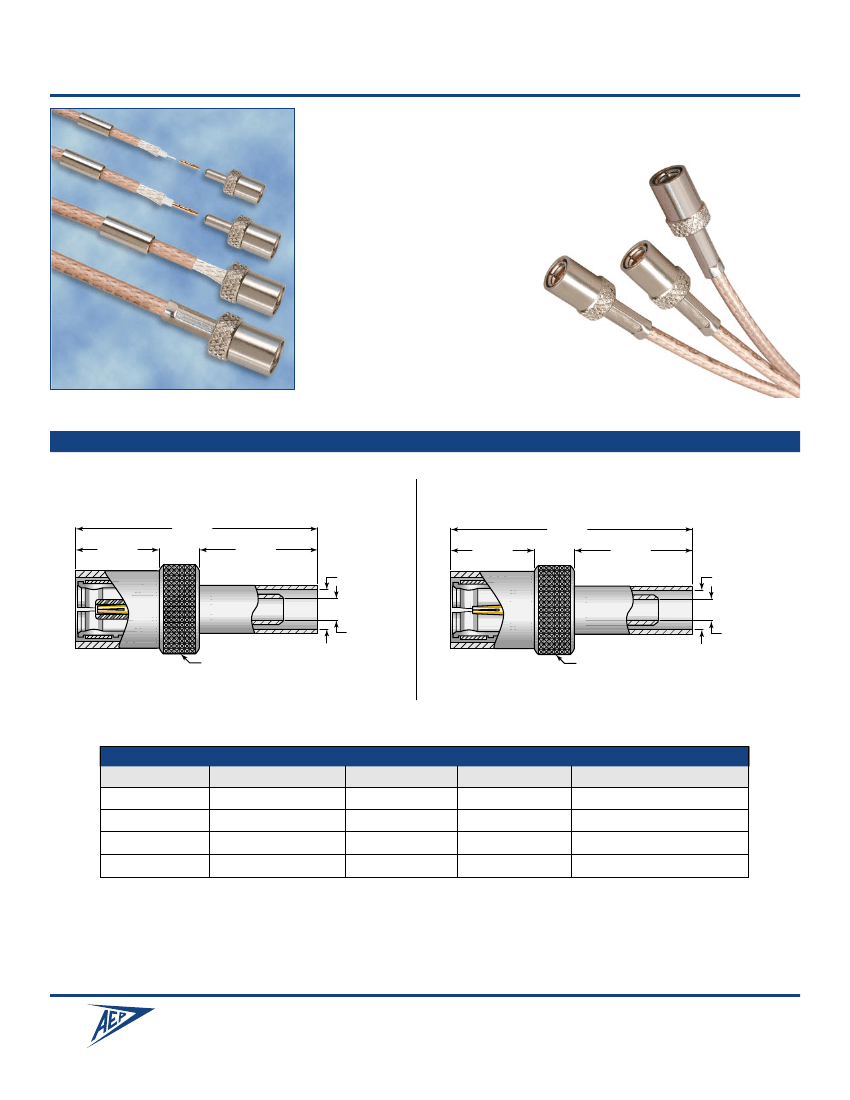

SMB Dual-Crimp Cable Plugs
These SMB plugs feature crimp center contacts for fast assembly, with
reduced size and weight compared to standard SMB cable plugs.
Other features include:
• 50 ohm or 75 ohm impedance.
• For single or double-shielded cables.
• Gold-plated captive contact.
• Nickel plated body and crimp sleeve.
• Fast delivery from stock.
Ordering Information
Figure 1 (50 ohm)
.77 (19,6)
.266 (6,8)
.375 (9,5)
.266 (6,8)
Figure 2 (75 ohm)
.77 (19,6)
.375 (9,5)
ø
A
ø
A
ø
.067 (1,7)
Medium diamond knurl raised to
ø
.281 (7,1)
ø
.067 (1,7)
Medium diamond knurl raised to
ø
.281 (7,1)
Impedance
50 ohm
50 ohm
75 ohm
75 ohm
Cable
RG-316
RG-316DS
RG-179
RG-179DS
SMB Dual-Crimp Cable Plugs
A
Figure
.122
.130
.122
.130
1
1
2
2
AEP P/N
2007-7721-003
2007-7721-019
8802-7721-079
8802-7721-085
See next page for specifications and assembly instructions.
APPLIED ENGINEERING PRODUCTS
(203) 776-2813 • FAX (203) 776-8294
P.O. Box 510 • New Haven, CT 06513
www.aepconnectors.com
•
aepsales@aepconnectors.com
SMB Dual-Crimp Cable Plugs
Assembly Instructions
Jacket
Braid
Dielectric
Center conductor
1
—Trim
cable as shown.
—Slide
crimp sleeve over cable.
.465
.085
.180
2
—Place
contact onto cable center conductor, with back of contact
flush with end of cable dielectric.
—Crimp
contact to center conductor (see below for tool information).
—Flare
cable braid by rotating dielectric.
Crimp area
3
4
—Slide
crimp sleeve forward to touch rear of body,
and crimp using .128" hex die.
Specifications
(MIL-PRF-39012 as applicable, for 50 ohm connectors)
Materials:
Body components, male contacts:
Brass per ASTM-B16, alloy 360, 1/2 hard.
Female contacts:
Beryllium copper per ASTM-B196, Condition HT.
Insulators:
Teflon TFE per ASTM-D1710.
Finish:
Center contacts:
Gold plated per current revision of MIL-PRF-39012*
Other metal parts:
Gold or nickel plated to meet current MIL-PRF-39012 corrosion requirements.*
Electrical:
Impedance:
50Ω.
Frequency range:
DC–4 GHz.
Insulation Resistance:
1,000 megohms minimum.
Voltage Rating:
250VRMS @ sea level (RG-178 cable); 335VRMS @ sea level (RG-316 cable).
Dielectric Withstanding Voltage:
750VRMS @ sea level (RG-178 cable); 1000VRMS @ sea level (RG-316 cable).
Contact Resistance:
Straight connectors: Initial: 6 milliohms maximum; after environmental test conditions: 8 milliohms maximum.
Right angle connectors: Initial: 12 milliohms maximum; after environmental test conditions: 16 milliohms maximum.
Corona level:
125V @70,000 ft.
RF highpot:
400 VRMS @ 5 MHz.
RF leakage:
-55 dB min @ 2–3 GHz.
Insertion loss:
.30 dB max (straight connectors), .60 dB max (right angle connectors) @ 1.5 GHz.
VSWR:
Cable
Straight connector
Right angle connector
RG-178
1.30 + (.04 x F[GHz])
1.45 + (.06 x F[GHz])
RG-316
1.25 + (.04 x F[GHz])
1.35 + (.04 x F[GHz])
Mechanical:
Force to engage:
14 pounds max.
Contact retention:
2 pounds min axial force.
Durability:
500 mating cycles.
Environmental (MIL-STD-202):
Temperature range:
-65˚ C to +165˚ C.
Corrosion:
Method 101, condition B, 5% salt solution.
Vibration (Method 204):
Condition B.
Mechanical shock (Method 213):
Condition B.
Thermal shock (Method 107):
Condition B.
*These specifications change periodically with updates to MIL-PRF-39012 requirements. Contact factory for latest specifications.
