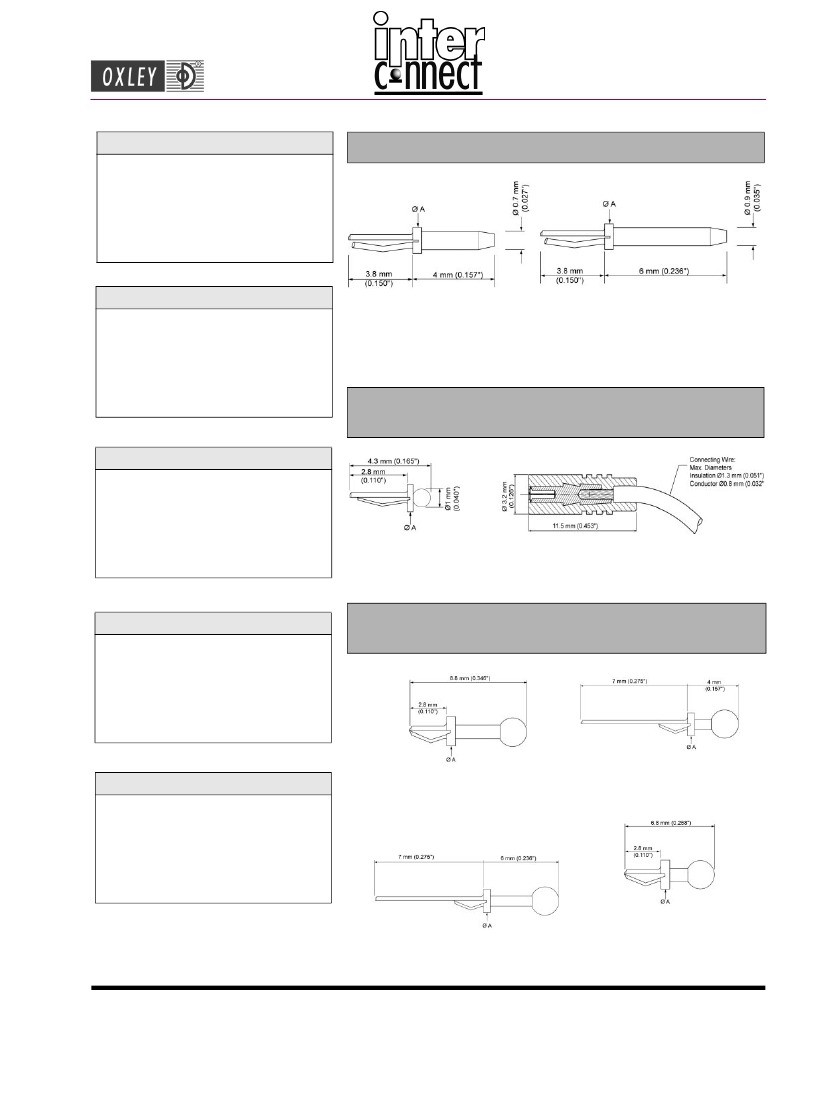

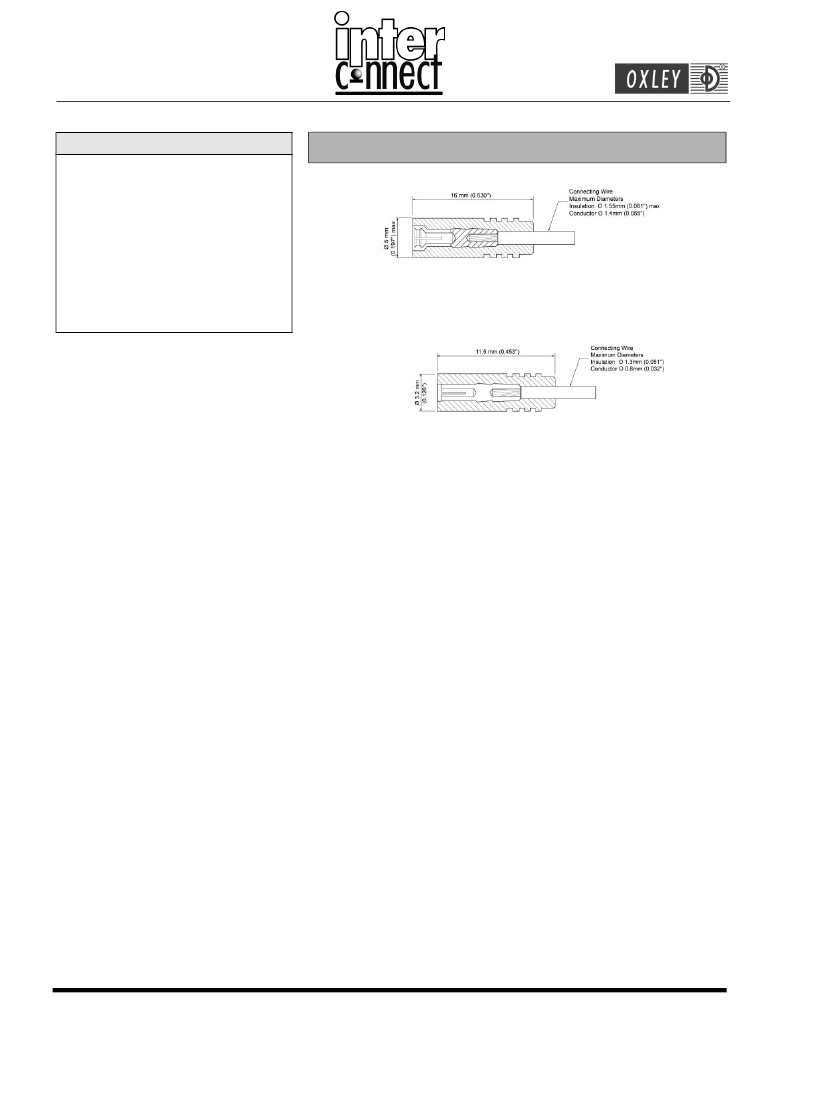

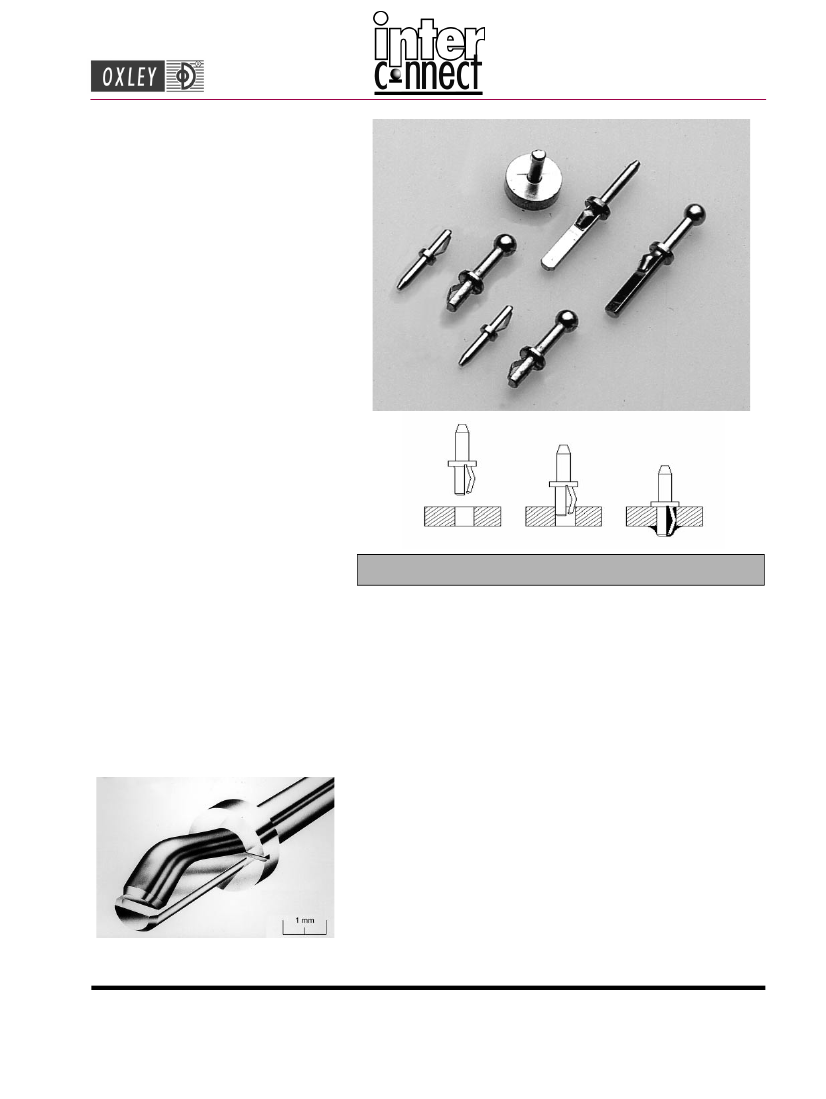

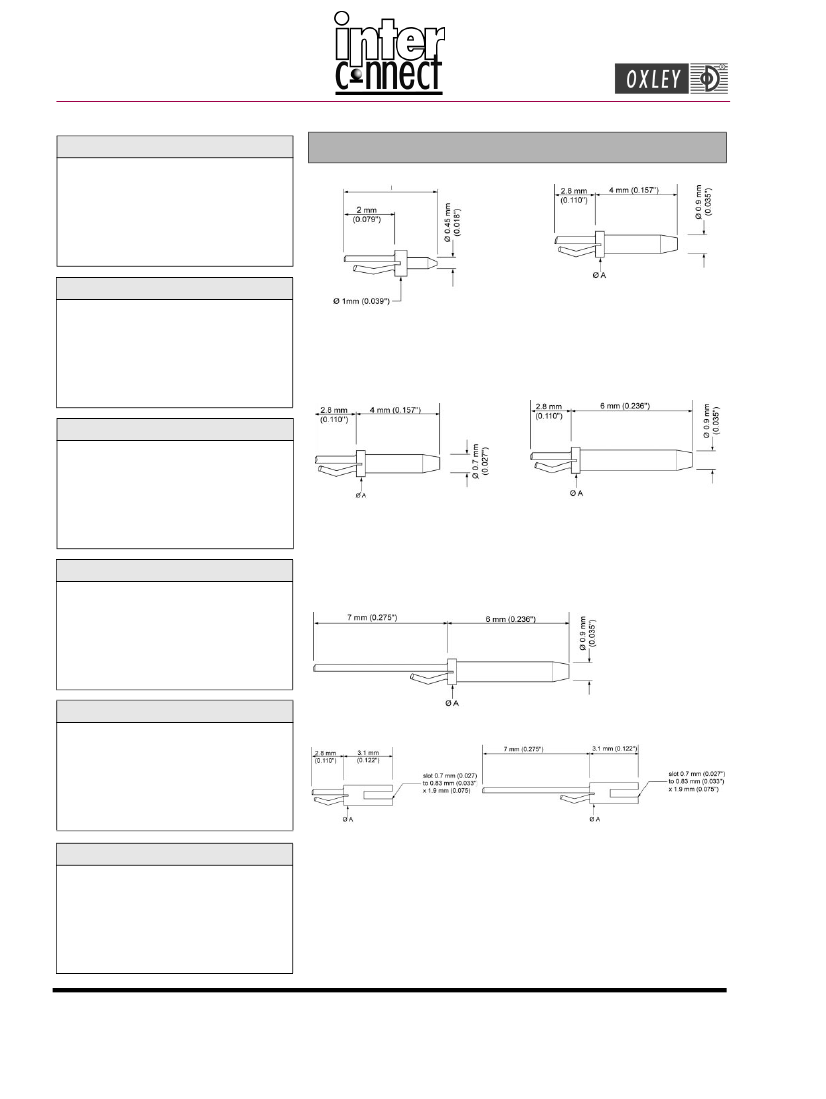

KINKY PIN Plated Through
Hole (PTH) Connectors
Features
•
Unique kinked retention mechanism
retains pin in PCB plated through hole
(PTH) prior to soldering.
Low insertion force avoids damage to
plating of PTH during assembly.
Slotted design enhances solderability
and reliability.
Family optimised for a wide range of
PTH diameters
0.508 mm (0.020") -
1.524 mm (0.060").
Capable of hand and semi-automatic
machine insertion.
Available in a wide range of styles and
finishes for alternative applications.
Vibratory bowl fed semi-automatic
insertion machines available, details on
request.
•
•
•
•
•
•
Approvals
•
Approved to BS 9000
(BS 9525 F0050)
Kinky Pins
Kinky Pins were designed specifically to meet the demands of plated
through hole (PTH) technology introduced in printed circuit boards. They
have been used in a wide range of commercial and military applications
including sub-sea fibre optic repeators, radars and mulit-function LCD
cockpit displays in military fast jets. They tend to be used with flexi-circuit
termination and as solder terminals, connectors and in multiway pin arrays.
They use a unique kinked retention mechanism which gives a fit in the PTH
that is unsurpassed. The kinked leg provides a tight non-aggressive spring
loaded fit whilst the straight leg ensures the pin is kept perpendicular to the
PCB prior to soldering.
This Kinky Pin mechanism gives an additional benefit which is a key part
of its operation. The slotted design induces wicking of the solder up into the
kink and up to the flange which means that the solder joint is solid and free
of air pockets. This reduces the possibility of dry joints developing and the
life of the solder joint is therefore increased. In our opinion and that of our
customers, there is no better PTH solder-in terminal!
The Kinky Pin range is comprehensive and our in-house high precision
machining capabilities mean that we have the ability to manufacture
bespoke versions on request. Standard finishes are tin lead and gold;
other finishes are available on request.
Application
•
Self retaining compliant pin for plated
through holes in multilayer printed
circuit boards.
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
TEl: (203) 488 1033
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
11
KINKY PIN Plated Through
Hole (PTH) Connectors
Prefix: 020/-
Mounting Hole Diameter:
0.52 mm (0.020") - 0.68 mm (0.027")
Min. Pitch Using Assembly Tool:
2.5 mm (0.098")
Shoulder Diameter A:
1.0 mm (0.039")
Kinky Pin Test Points
Prefix: 028/-
Mounting Hole Diameter:
0.68 mm (0.027") - 0.84 mm (0.033")
Min. Pitch Using Assembly Tool:
2.5 mm (0.098")
Shoulder Diameter A:
1.6 mm (0.063")
020/C/KP2
[I = 3.7 mm (0.146")]
020/PT/KP2
[I = 6.1 mm (0.240")]
020/PT/KP2/L
[I = 7.3 mm (0.287")]
028/30P/KP2
030/30P/KP2
040/30P/KP2
050/30P/KP2
060/30P/KP2
Prefix: 030/-
Mounting Hole Diameter:
0.81 mm (0.032") - 0.96 mm (0.038")
Min. Pitch Using Assembly Tool:
2.5 mm (0.098")
Shoulder Diameter A:
1.6 mm (0.063")
Prefix: 040/-
Mounting Hole Diameter:
0.96 mm (0.038") - 1.12 mm (0.044")
Min. Pitch Using Assembly Tool:
2.5 mm (0.098")
Shoulder Diameter A:
1.6 mm (0.063")
028/30P/LA/KP2
030/30P/LA/KP2
040/30P/LA/KP2
050/30P/LA/KP2
060/30P/LA/KP2
028/30P/KP2/L
030/30P/KP2/L
040/30P/KP2/L
050/30P/KP2/L
060/30P/KP2/L
040/LT/30P/KP2/L
050/LT/30P/KP2/L
060/LT/30P/KP2/L
Prefix: 050/-
Mounting Hole Diameter:
1.21 mm (0.048") - 1.37 mm (0.054")
Min. Pitch Using Assembly Tool:
3.0 mm (0.118")
Shoulder Diameter A:
2.4 mm (0.094)
Prefix: 060/-
Mounting Hole Diameter:
1.50 mm (0.059") - 1.65 mm (0.065")
Min. Pitch Using Assembly Tool:
3.0 mm (0.118")
Shoulder Diameter A:
2.4 mm (0.094)
028/T/KP2
030/T/KP2
040/T/KP2
050/T/KP2
060/T/KP2
040/LT/T/KP2
050/LT/T/KP2
060/LT/T/KP2
12
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: (203) 488 1033
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
KINKY PIN Plated Through
Hole (PTH) Connectors
Prefix: 028/-
Mounting Hole Diameter:
0.68 mm (0.027") - 0.84 mm (0.033")
Min. Pitch Using Assembly Tool:
2.5 mm (0.098")
Shoulder Diameter A:
1.6 mm (0.063")
Kinky Pin Test Points
Prefix: 030/-
Mounting Hole Diameter:
0.81 mm (0.032") - 0.96 mm (0.038")
Min. Pitch Using Assembly Tool:
2.5 mm (0.098")
Shoulder Diameter A:
1.6 mm (0.063")
028/10P/30P/LA/KP2
030/10P/30P/LA/KP2
040/10P/30P/LA/KP2
050/10P/30P/LA/KP2
060/10P/30P/LA/KP2
028/10P/30P/KP2/L
030/10P/30P/KP2/L
040/10P/30P/KP2/L
050/10P/30P/KP2/L
060/10P/30P/KP2/L
1 mm Snaplox Kinky-Pins
(To Suit Socket Type Number LS/B1/093)
Prefix: 040/-
Mounting Hole Diameter:
0.96 mm (0.038") - 1.12 mm (0.044")
Min. Pitch Using Assembly Tool:
2.5 mm (0.098")
Shoulder Diameter A:
1.6 mm (0.063")
030/B1/KP2
040/B1/KP2
050/B1/KP2
LS/B1/093
(To suit 1 mm Snaplox)
Prefix: 050/-
Mounting Hole Diameter:
1.21 mm (0.048") - 1.37 mm (0.054")
Min. Pitch Using Assembly Tool:
3.0 mm (0.118")
Shoulder Diameter A:
2.4 mm (0.094)
2 mm Snaplox Kinky-Pins
(To Suit Socket Type Number LS/B2/156)
Prefix: 060/-
Mounting Hole Diameter:
1.50 mm (0.059") - 1.65 mm (0.065")
Min. Pitch Using Assembly Tool:
3.0 mm (0.118")
Shoulder Diameter A:
2.4 mm (0.094)
028/SO/BK2F
030/SO/BK2F
040/SO/BK2F
050/SO/BK2F
060/SO/BK2F
040/LT/BK2P
050/LT/BK2P
060/LT/BK2P
040/LT/BK2F
050/LT/BK2F
060/LT/BK2F
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
TEl: (203) 488 1033
028/SO/BK2P
030/SO/BK2P
040/SO/BK2P
050/SO/BK2P
060/SO/BK2P
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
13
KINKY PIN Plated Through
Hole (PTH) Connectors
Assembly Tools
-/30P/KP2, -/30P/KP2/L,
-/LT/30P/KP2/L:
AT1/KP1
(028 - 040)/T/KP2, -/LT/T/KP2,
-/-/BK2F, -/-/BK2P:
AT1/KP2
-/10P/30P/KP2/L, (050-060)/T/KP2:
AT1/KP3
-/30P/LA/KP2, -/10P/30P/LA/KP2:
AT1/KP4
Socket
LS/B2/156
(To suit all 2 mm Snaplox)
30/LS/093
(To suit -/30P/KP2 AND -/30P/KP2/L))
14
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: (203) 488 1033
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
KINKY PIN Plated Through
Hole (PTH) Connectors
Materials
Pin
Sockets
Contact Brass
Insulation High dispersion grade PTFE
Finishes:
Pin
Standard Tin Lead
Options Gold (standard on Snaplox Kinky Pins)
Socket
Standard Silver
Options Gold
Copper alloy
Characteristics
Contact Resistance
(with socket)
Current for 10°C Rise
Above Ambient
Climatic Category
Solderability
less than 5 millohms
7A
- 55 to +125 °C
Exceeds Requirements of BS 2011
(IEC 68) Test T
Assembly Tools
Component Type Number
-/30P/KP2
-/30P/KP2/L
-/LT/30P/KP2/L
(028 - 040) /T/KP2
-/LT/T/KP2
-/-/BK2F
-/-/BK2P
-/10P/30P/KP2/L
(050 - 060) /T/KP2
-/30P/LA/KP2
-/10P/30P/LA/KP2
Tool Number
AT1/KP1
AT1/KP2
AT1/KP3
AT1/KP4
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
TEl: (203) 488 1033
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
15
