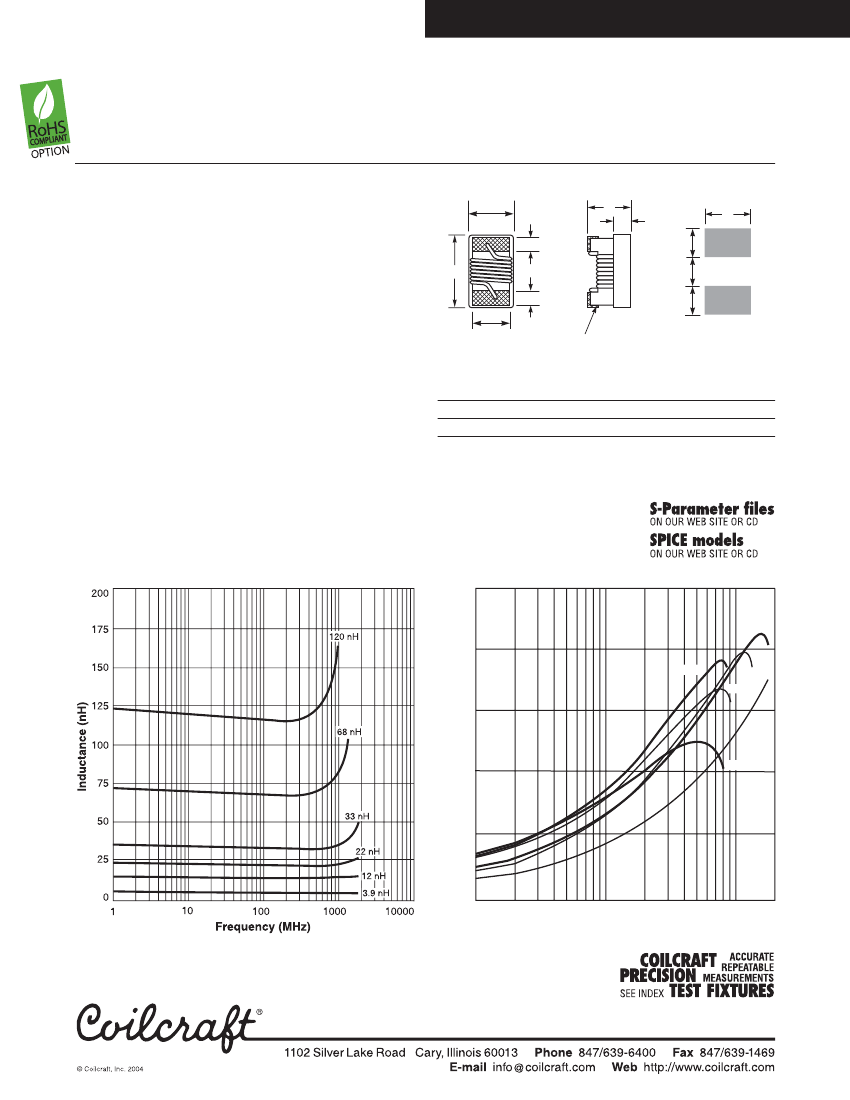

Document 195-1
Chip Inductors - 0603CS Series (1608)
Ultra-small size, exceptional Q and high SRFs make
these inductors ideal for high frequency applications
where size is at a premium. They also have excellent
DCR and current carrying characteristics.
These parts can be ordered with terminations that make
them compliant with RoHS standards.
Coilcraft
Designer’s Kits C124A
and
C124B
contain
samples of 5% tolerance parts. Kits with 2% tolerance
are also available. To order, contact Coilcraft or visit
http://order.coilcraft.com
to purchase on-line.
A
B
overall
C
D
H
I
J
I
F
G
F
E
terminal
Terminal wraparound:
approx 0.007/0,18 both ends
Recommended
Land Pattern
A
max
0.071
1,80
B
max
0.044
1,12
C
max
0.040
1,02
D
ref
0.015
0,38
E
0,76
F
0,33
G
0,86
H
1,02
I
0,64
J
0,64
0.030 0.013 0.034 0.040 0.025 0.025
Weight:
3.2 – 3.7 mg
Tape and reel:
2000/7″ reel 8 mm tape width
For packaging data see Tape and Reel Specifications section.
Typical L vs Frequency
Typical Q vs Frequency
100
12 nH
80
33 nH
22 nH
68 nH
Q factor
60
3.9 nH
120 nH
40
20
0
10
100
1000
Frequency (MHz)
Specifications subject to change without notice.
Document 195-1
Revised 10/28/03
Document 195-2
0603CS Series (1608)
Part
number
1
Inductance
2
(nH)
1.6 @ 250 MHz
1.8 @ 250 MHz
3.3 @ 250 MHz
3.6 @ 250 MHz
3.9 @ 250 MHz
4.3 @ 250 MHz
4.7 @ 250 MHz
5.1 @ 250 MHz
5.6 @ 250 MHz
6.8 @ 250 MHz
7.5 @ 250 MHz
8.2 @ 250 MHz
8.7 @ 250 MHz
9.5 @ 250 MHz
10 @ 250 MHz
11 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
16 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
23 @ 250 MHz
24 @ 250 MHz
27 @ 250 MHz
30 @ 250 MHz
33 @ 250 MHz
36 @ 250 MHz
39 @ 250 MHz
43 @ 250 MHz
47 @ 200 MHz
51 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
72 @ 150 MHz
82 @ 150 MHz
100 @ 150 MHz
110 @ 150 MHz
120 @ 150 MHz
150 @ 150 MHz
180 @ 100 MHz
200 @ 100 MHz
210 @ 100 MHz
220 @ 100 MHz
250 @ 100 MHz
270 @ 100 MHz
330 @ 100 MHz
390 @ 100 MHz
Percent
Q
tolerance
3
min
4
10,5
10,5
10,5,2
10,5,2
10,5,2
10,5,2
10,5,2
10,5,2
10,5,2
10,5,2
10,5,2
10,5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
10,5,2
10,5,2
5,2
10,5,2
5,2
5,2
5,2
24
16
35
22
22
22
20
20
26
27
28
30
28
28
31
30
35
35
34
35
38
38
36
40
37
40
37
40
38
38
35
38
37
34
34
34
32
32
28
25
25
27
25
25
24
25
25
900 MHz
L typ Q typ
1.67
1.63
3.31
3.72
3.95
4.32
4.72
4.93
5.77
6.75
7.70
8.25
8.86
9.7
10.0
11.0
12.3
15.4
6.2
18.7
22.8
24.1
24.5
29.2
31.4
36.0
39.4
42.7
47.0
52.2
55.5
62.5
80.5
82.0
96.2
124
138
166
250
305
—
—
—
—
—
—
—
49
35
75
53
49
50
47
47
63
60
60
82
62
59
66
53
72
64
55
70
73
71
45
74
47
67
47
60
44
62
69
56
54
53
54
49
43
39
25
22
—
—
—
—
—
—
—
1.7 GHz
L typ Q typ
1.65
1.66
3.38
3.71
3.96
4.33
4.75
4.95
6.05
7.10
7.82
8.37
9.32
9.92
10.6
11.5
13.5
16.8
17.3
21.4
26.1
28.0
28.7
34.6
39.9
49.5
52.7
60.2
64.9
77.2
82.2
97.0
168
135
177
—
—
—
—
—
—
—
—
—
—
—
—
63
50
88
65
67
70
57
56
80
81
65
87
58
61
83
56
83
89
52
69
71
67
39
65
28
42
24
40
21
35
34
26
21
20
21
—
—
—
—
—
—
—
—
—
—
—
—
SRF
min
5
(MHz)
12500
12500
5900
5900
6900
5900
5800
5700
4760
5800
4800
4200
4600
5400
4800
4000
4000
4000
3300
3100
3000
2850
2650
2800
2250
2300
2080
2200
2000
2000
1900
1900
1700
1700
1700
1400
1350
1300
990
990
900
895
900
822
900
900
900
DCR
max
6
(Ohms)
0.030
0.045
0.045
0.063
0.080
0.063
0.116
0.140
0.075
0.110
0.106
0.115
0.109
0.135
0.130
0.086
0.130
0.170
0.104
0.170
0.190
0.190
0.135
0.220
0.144
0.220
0.250
0.250
0.280
0.280
0.270
0.310
0.340
0.490
0.540
0.580
0.610
0.650
0.920
1.25
1.98
2.06
2.10
3.55
2.30
3.89
4.35
Irms
7
Color
(mA) code
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
600
600
600
600
600
600
600
600
600
600
400
400
400
300
300
280
240
200
200
200
120
170
100
100
Red
Black
Blue
Red
Brown
Orange
Violet
Green
Black
Red
Brown
Orange
Yellow
Blue
Orange
Gray
Yellow
Green
White
Blue
Violet
Orange
Black
Gray
Brown
White
Red
Black
Orange
Brown
Blue
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Green
Gray
Brown
Violet
Red
Blue
Yellow
0603CS-1N6X_B_
0603CS-1N8X_B_
0603CS-3N3X_B_
0603CS-3N6X_B_
0603CS-3N9X_B_
0603CS-4N3X_B_
0603CS-4N7X_B_
0603CS-5N1X_B_
0603CS-5N6X_B_
0603CS-6N8X_B_
0603CS-7N5X_B_
0603CS-8N2X_B_
0603CS-8N7X_B_
0603CS-9N5X_B_
0603CS-10NX_B_
0603CS-11NX_B_
0603CS-12NX_B_
0603CS-15NX_B_
0603CS-16NX_B_
0603CS-18NX_B_
0603CS-22NX_B_
0603CS-23NX_B_
0603CS-24NX_B_
0603CS-27NX_B_
0603CS-30NX_B_
0603CS-33NX_B_
0603CS-36NX_B_
0603CS-39NX_B_
0603CS-43NX_B_
0603CS-47NX_B_
0603CS-51NX_B_
0603CS-56NX_B_
0603CS-68NX_B_
0603CS-72NX_B_
0603CS-82NX_B_
0603CS-R10X_B_
0603CS-R11X_B_
0603CS-R12X_B_
0603CS-R15X_B_
0603CS-R18X_B_
0603CS-R20X_B_
0603CS-R21X_B_
0603CS-R22X_B_
0603CS-R25X_B_
0603CS-R27X_B_
0603CS-R33X_B_
0603CS-R39X_B_
1. When ordering, specify
tolerance, termination
and
packaging
codes:
0603CS-R39XJBW
G
= 2%
J
= 5%
K
= 10% (Table shows stock
tolerances in bold.)
Termination:
B
= Standard Ag/Pd/Pt
L
= RoHS compliant Ag/Pd/Pt
Packaging: W
= 7″ machine-ready reel. EIA-481 punched paper
tape (2000 parts per full reel).
U
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter W instead.
Tolerance:
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/
HP 4286 impedance analyzer.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured at the same frequency as inductance using an Agilent/
HP 4291A with an Agilent/HP 16193 test fixture.
5. SRF measured using an Agilent/HP 8720D network analyzer and a
Coilcraft SMD-D test fixture.
6. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF858 test fixture.
7. Average current for 15°C rise from 25°C ambient.
8. Operating temperature range
−40°C
to +125°C.
9. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
Specifications subject to change without notice.
Document 195-2
Revised 10/27/04
