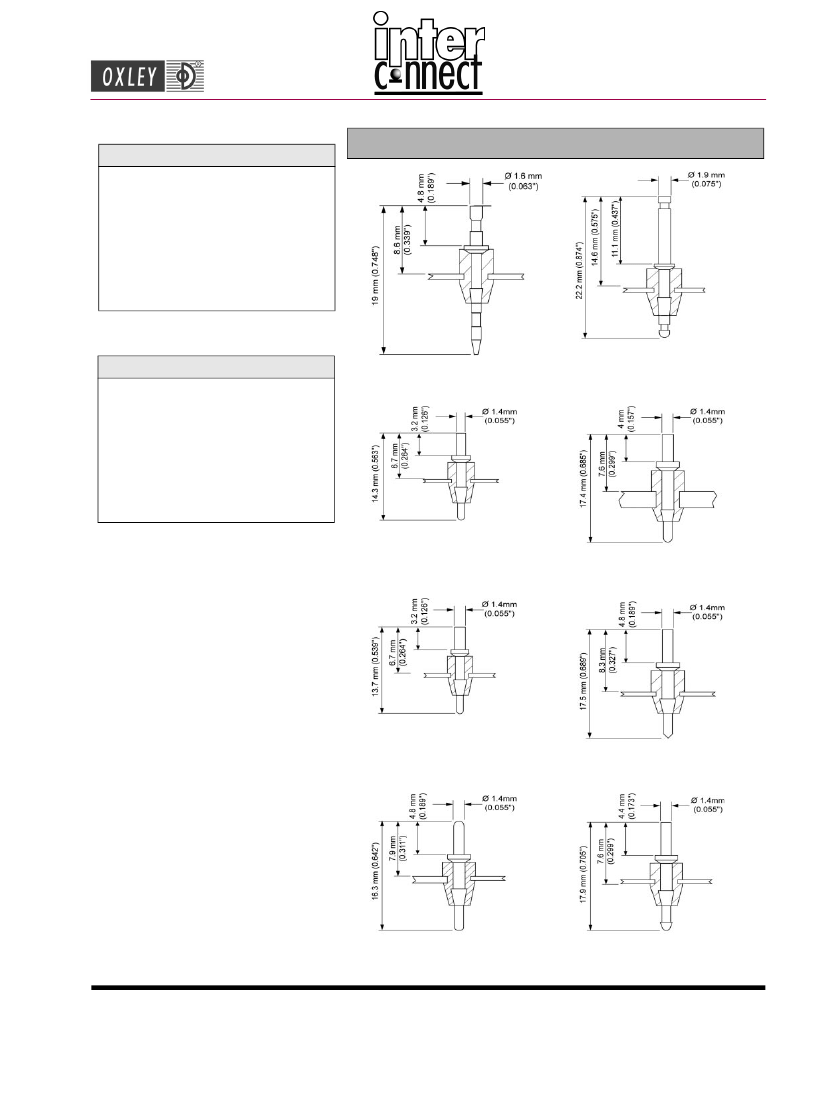

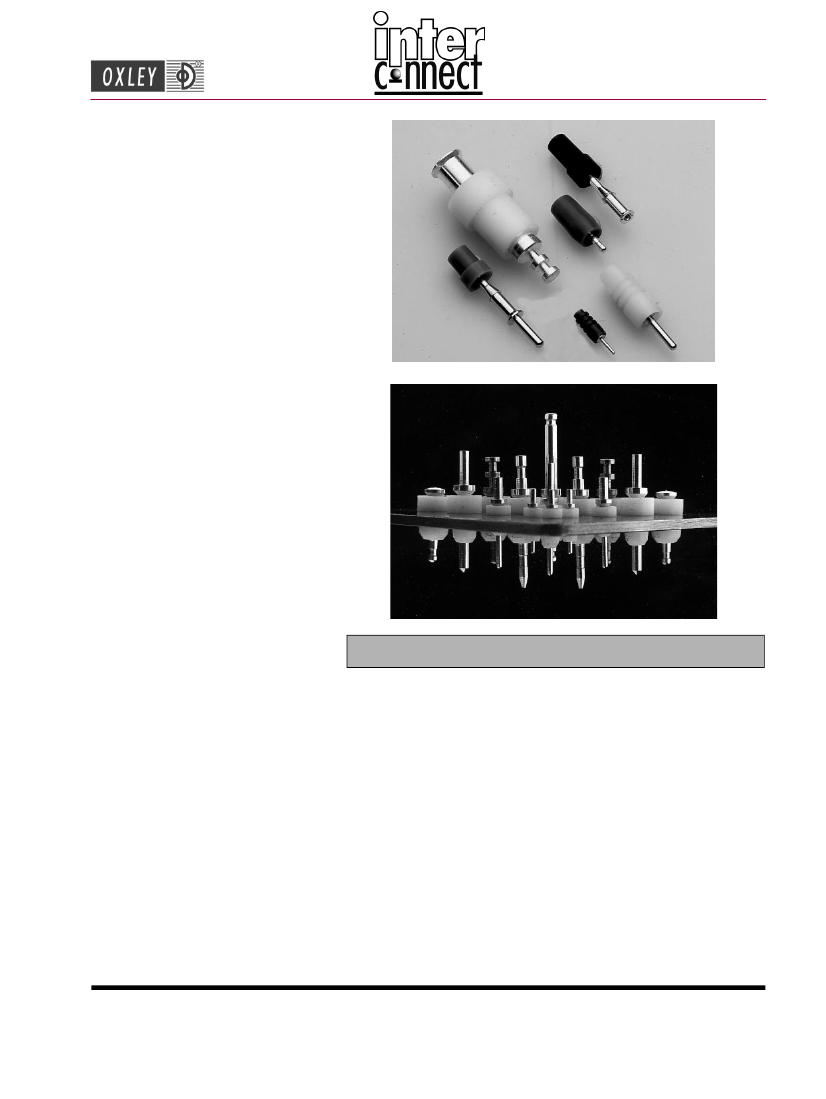

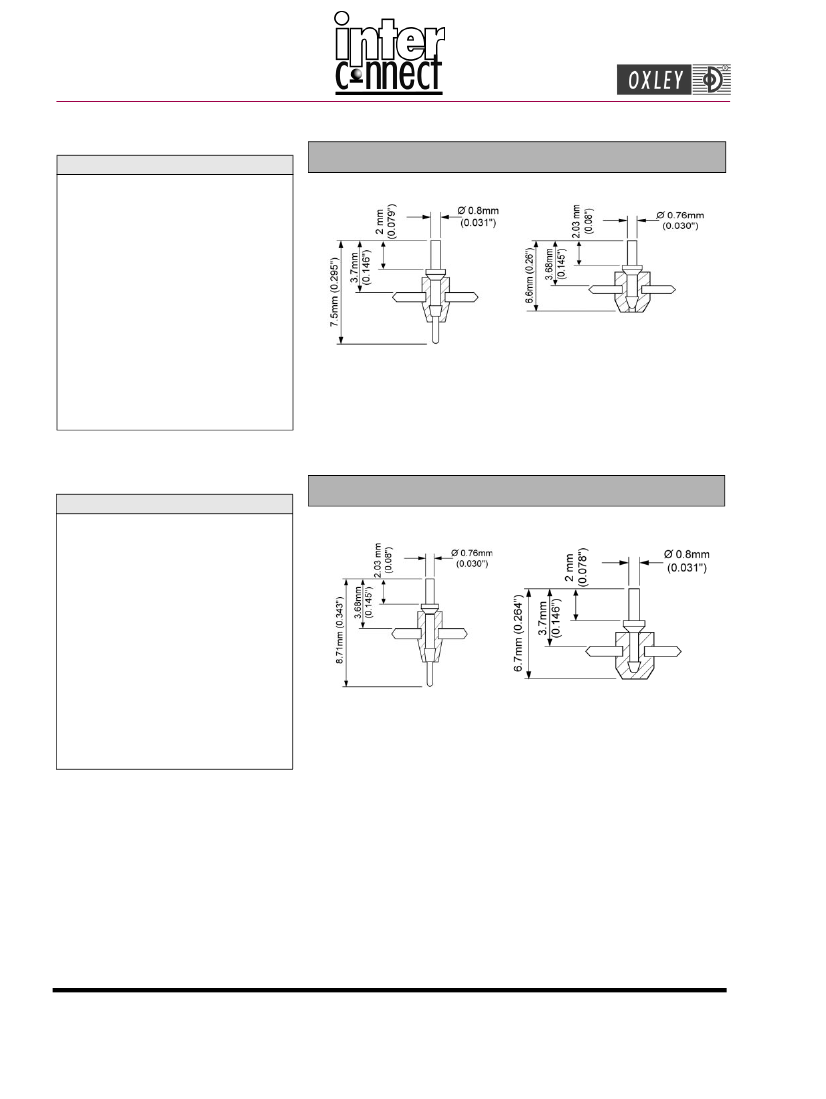

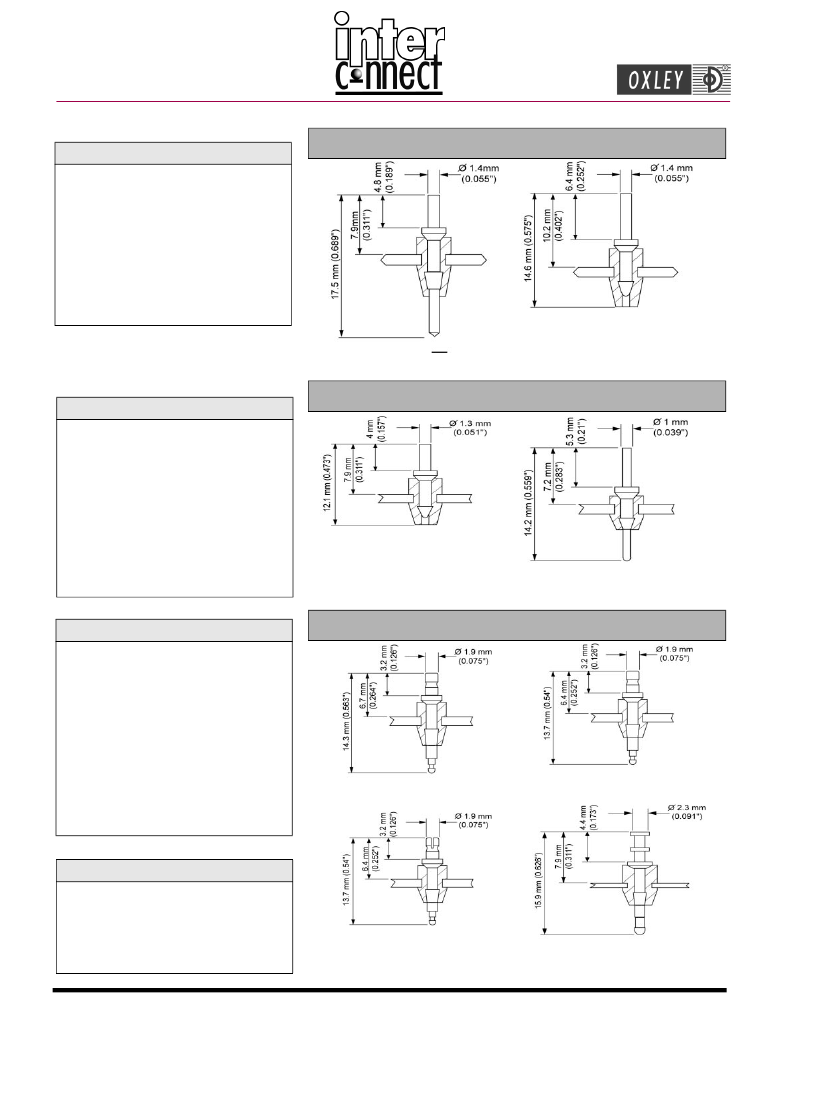

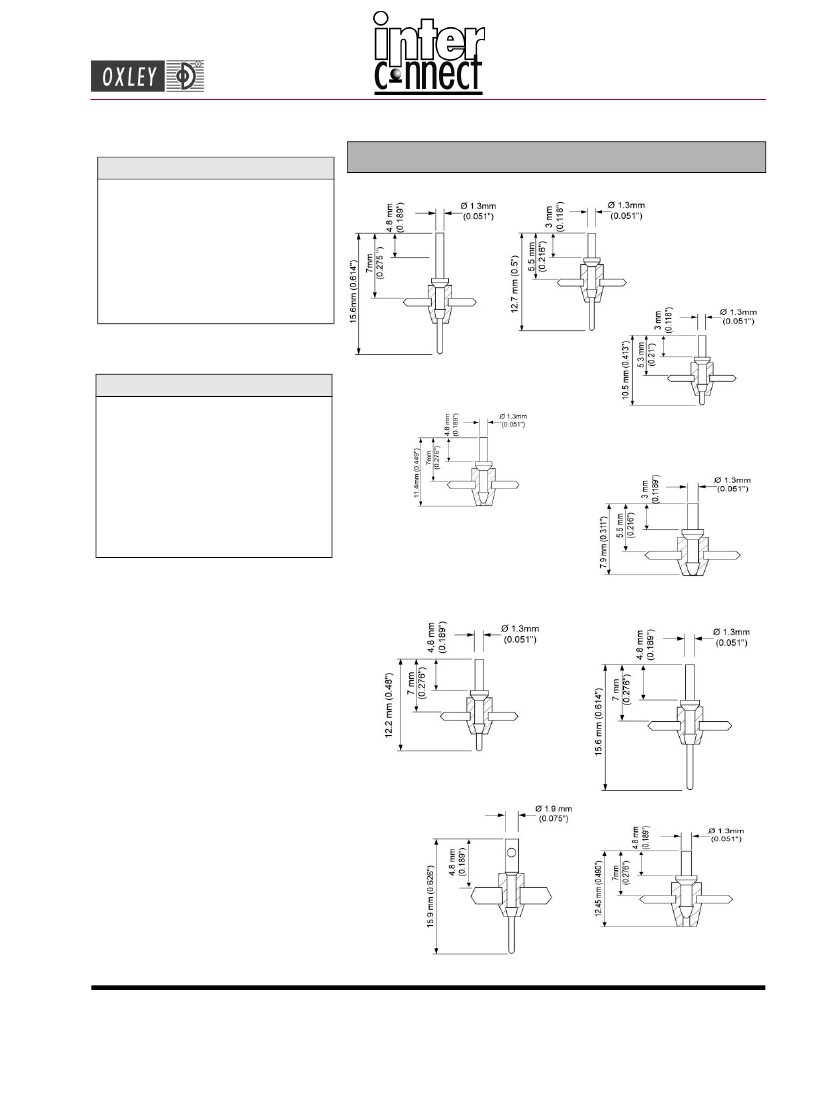

BARB CONE LOCK
®
PTFE
Insulated Terminals
Features
•
•
•
•
•
•
Simple economical assembly.
Self-retaining mechanism.
Rapid assembly.
High insulation resistance.
Low capacitance.
Pressure Sealing.
Approvals
•
Approved to DEF-STAN 59-40
(Pt. 2 Sect. 2)
Application
•
•
Chassis mounting insulated stand off
and lead through terminals.
Pressure bulkhead feedthrough sealing
applications.
Barb Cone Lock
®
Insulated Terminals
The Barb Cone Lock
®
technology designed by Oxley Developments is now
well established and still represents a large proportion of the business. The
concept utilises the unique characteristics of our High PTFE which is made
to an Oxley recipe, it is a key part of how the product performs. The PTFE
has an elastic property which allows the barbed metal spill to lock itself in
place by gently expanding the PTFE underneath the chassis during insertion.
This ensures a long life, stable fixing in the chassis which is a fundamental
part of the product’s success.
The product has seen use in a whole host of applications from the military,
nuclear and space industries to the medical and telecommunications
industries. There is a vast range of types and styles to suit a variety of hole
sizes and chassis thicknesses. There are also the "CEEL" high sealing
versions for use in applications involving vacuums and differential pressures.
The spills are precision turned, high specification brass material with a silver
plating finish as standard. Other finishes are available on request.
We also have the capability to manufacture Barb Cone Locks
®
in a variety
of exotic metals for thermocouple applications.
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
TEl: (203) 488 1033
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
33
BARB CONE LOCK
®
PTFE
Insulated Terminals
Prefix: 062/-
Mounting Hole Diameter:
1.57 mm (0.062") nominal
Chassis Thickness:
0.56 mm (0.022") - 0.71 mm (0.028")
Max. Outside Dia. of Bush:
2.7 mm (0.106")
Current Rating (A):
0.5
Rated Voltage at Sea Level (kV d.c.):
0.5
Proof Voltage at Sea Level (kV d.c.):
2.5
Capacitance (pF) (max):
0.5
Assembly Tool:
AT 1/01
062 Range
062
062/SO
Prefix: 078/-
Mounting Hole Diameter:
1.98 mm (0.078") nominal
Chassis Thickness:
1.2 mm (0.047") - 1.6 mm (0.062")
Max. Outside Dia. of Bush:
2.8 mm (0.110")
Current Rating (A):
1
Rated Voltage at Sea Level (kV d.c.):
0.5
Proof Voltage at Sea Level (kV d.c.):
2.5
Capacitance (pF) (max):
0.5
Assembly Tool:
AT 1/01
078 Range
078
078/SO
34
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: (203) 488 1033
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
BARB CONE LOCK
®
PTFE
Insulated Terminals
Prefix: 093/-
Mounting Hole Diameter:
2.36 mm (0.093")
Chassis Thickness:
2.03 mm (0.08") - 2.3 mm (0.09")
Max. Outside Dia. of Bush:
3.6 mm (0.142")
Assembly Tool:
AT 1/11
093 Range
093/18P
093/16P
Exceptions
Assembly Tool:
093/6/H: AT 1/03
Chassis Thickness:
-/16P:
1.2 mm (0.047") - 1.6 mm (0.063")
-/18P:
0.91 mm (0.036") - 1.2 mm (0.047")
-/20P:
0.71 mm (0.028") - 0.91 mm (0.036")
093/20P
093/SO/16P
093/SO/18P
093/20/LP
093/093
093/6/H
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
TEl: (203) 488 1033
093/093/SO
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
35
BARB CONE LOCK
®
PTFE
Insulated Terminals
Prefix: 125/-
Mounting Hole Diameter:
3.18 mm (0.125")
Chassis Thickness:
1.2 mm (0.047") - 1.6 mm (0.063")
Max. Outside Dia. of Bush after
Assembly:
5.7 mm (0.224")
Assembly Tool:
AT 1/05
125 Range
125/LP
125/SO/LP
Prefix: 136/-
Mounting Hole Diameter:
3.45 mm (0.136")
Chassis Thickness:
1.2 mm (0.047") - 1.6 mm (0.063")
Max. Outside Dia. of Bush after
Assembly:
4.7 mm (0.185")
Assembly Tool:
136/SO AT 1/11
136/LP AT 1/17
136 Range
136/SO
136/LP
Prefix: 156/-
Mounting Hole Diameter:
3.96 mm (0.156")
Chassis Thickness:
1.2 mm (0.047") - 1.6 mm (0.063")
Max. Outside Dia. of Bush after
Assembly:
5.4 mm (0.213")
Assembly Tool:
156, 156/20, 156/20/S: AT 1/02
156/DT:
AT 1/06
156 Range
156
156/20
Exceptions:
Chassis Thickness:
-/20:
0.71 mm (0.028") - 0.91 mm (0.036")
-/DT:
1 mm (0.039") - 1.4 mm (0.0055")
156/20S
156/DT
36
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: (203) 488 1033
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
BARB CONE LOCK
®
PTFE
Insulated Terminals
Prefix: 156/-
Mounting Hole Diameter:
3.96 mm (0.156")
Chassis Thickness:
1.2 mm (0.047") - 1.6 mm (0.062")
Max. Outside Dia. of Bush:
5.4 mm (0.213")
Assembly Tool:
AT 1/05
156 Range (continued)
Exceptions:
Chassis Thickness:
-/10P:
2.3 mm (0.09") - 3.2 mm (0126")
-/20P:
0.71 mm (0.028") - 0.91 mm (0.036")
Assembly Tool:
156E:
AT 1/02
156L:
AT 1/14
156/E
156/L
156/P
156/10P
156/20P
156/LP
156/LPR
www.oxleygroup.com/interconnect
ODC: SMFIL: 40566/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
TEl: (203) 488 1033
156/AT
Oxley UK
Electronics Components Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
37
