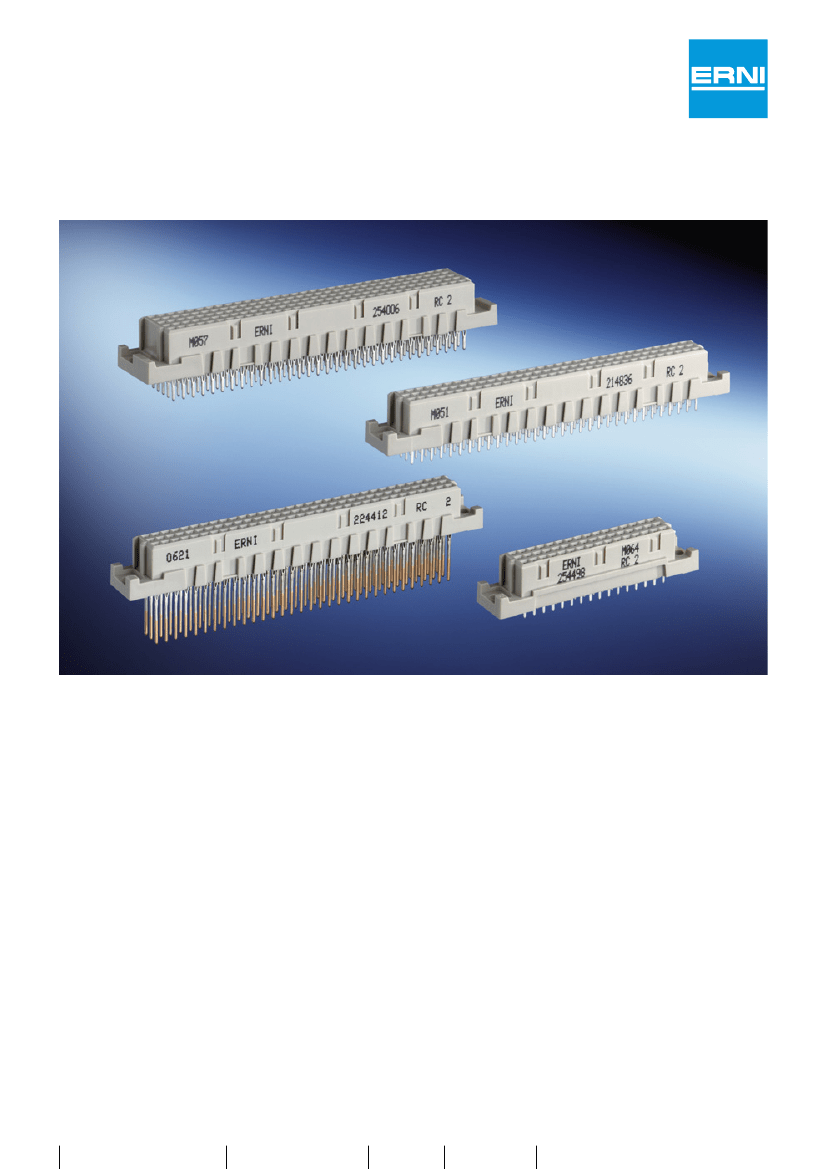

DIN 41612 / IEC 60603-2 Female Connectors New Design
ERNI introduces a new design of its female DIN connectors.The
new design offers the following advantages:
• Reduction of press-in force by approx. 25%, using the new
„Eye of the Needle“ pressfit zone. This leads to lesser strain
towards the PCB.
• 100% controlled quality of the pins due to consequent usage
of Automated Optical Inspection during the manufacturing pro-
cess.
• Partial and mixed loading possible.
Available termination lengths:
Solder: 2.5 mm; 3.7 mm; 4.0 mm; 13.0 mm; 17.0 mm
Pressfit: 2.9 mm; 4.0 mm; 5.5 mm; 13.0 mm w. Transfer
Zone; 17.0 mm w. Transfer Zone
Wire Wrap: 13.0 mm; 17.0 mm
• Dimensions of insulation bodies remain unchanged for
backwards compatibility.
• Fixation clip or retaining loop for efficient mounting of the
connector when soldering is selectable in all positions.
• Solder stop versions, preventing a rising of the solder up
into the housing, available on request for type B and C con-
nectors.
• Transfer zone contacts are selectable for all versions.
• A simple coding mechanism, by using coding strips, is stan-
dard on all type B, C, E and CD connectors.
• The THR versions are made of a high temperature resistant
material which makes them suitable for reflow soldering.
1
www.erni.com
Catalog E XXXXXX
06/07
Edition 3
With immediate effect the following parts will be converted:
Vertical Female Connectors Type C
Number Termination
of Pins
a
b
c
Termination
Length
Class
Pin
Dimensions
8
7
6
5
4
3
2
1
Part Number
Old Design
a
b
Part Number
New Design
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
L
0,2
c
32
Solder
13 mm
2
0.6 x 0.6 mm
543404
244296
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
a
b
c
8
7
6
5
4
3
2
1
a
b
c
L
0,2
32
32
32
32
32
32
Solder
Solder
Solder with Clip
Solder
Solder w. Transfer Zone
Solder w. Transfer Zone
4 mm
4 mm
4 mm
13 mm
13 mm
17 mm
2
2
2
2
2
2
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
043017*
004767
033297
543403
023337
593404
244265
244265
234431
244297
244298
244299
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
a
b
c
8
7
6
5
4
3
2
1
a
b
c
L
0,2
48
48
48
Solder
Solder with Clip
Solder
2.5 mm
4 mm
4 mm
2
2
2
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
123324
123786
033628
224409
234432
284082
* Termination Length: 3.7 mm
** Termination Length: 4.5 mm
*** Termination Length: 2.9 mm
2
www.erni.com
Catalog E XXXXXX
06/07
Edition 3
Vertical Female Connectors Type C
Number Termination
of Pins
a
b
c
Termination
Length
Class
Pin
Dimensions
8
7
6
5
4
3
2
1
Part Number
Old Design
a
b
c
Part Number
New Design
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
L
0,2
64
64
64
64
64
64
64
64
64
Solder w. kinked Legs
Solder
Solder
Solder
Solder with Clip
Solder w/o Flange
Solder
Solder w. Transfer Zone
Solder
2.5 mm
4 mm
4 mm
4 mm
4 mm
4 mm
13 mm
13 mm
17 mm
2
2
2
2
2
2
2
2
2
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
063543
594834
543407
064188**
063727**
-
543401
013962
593405
284170
224411
224411
224411
224471
223799
244301
244302
244303
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
a
b
c
8
7
6
5
4
3
2
1
a
b
c
L
0,2
96
96
96
96
96
96
96
96
96
96
Solder
Solder
Solder
Solder
Solder
Solder with Clip
Solder
Solder w. Transfer Zone
Solder w. Transfer Zone
Solder w. Transfer Zone
2.5 mm
4 mm
4 mm
4 mm
4 mm
4 mm
13 mm
13 mm
17 mm
17 mm
2
2
2
1
2
2
2
2
2
1
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.65 x 0.3 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
063647***
023661*
054350**
594073
594833
033228
543402
013905
593406
593443
224470
214836
214836
254897
234496
224472
244304
244305
244307
254931
* Termination Length: 3.7 mm
** Termination Length: 4.5 mm
*** Termination Length: 2.9 mm
3
www.erni.com
Catalog E XXXXXX
06/07
Edition 3
Vertical Female Connectors Type C
Number Termination
of Pins
a
b
c
Termination
Length
Class
Pin
Dimensions
8
7
6
5
4
3
2
1
Part Number
Old Design
a
b
Part Number
New Design
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
L
c
0,2
32
32
Pressfit
Pressfit
5.5 mm
5.5 mm
1
2
0.6 x 0.6 mm
0.6 x 0.6 mm
023348
043135
254134
254135
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
a
b
c
8
7
6
5
4
3
2
1
a
b
L
0,2
c
48
48
Pressfit
Pressfit
5.5 mm
5.5 mm
2
2
0.6 x 0.6 mm
0.6 x 0.6 mm
043124
424999
254136
254136
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
a
b
c
8
7
6
5
4
3
2
1
a
b
L
0,2
c
64
64
64
64
64
64
64
64
Pressfit
Pressfit
Pressfit
Pressfit
Pressfit w/o Flange
Pressfit w. Transfer Zone
Pressfit w. Transfer Zone
Pressfit w. Transfer Zone
4 mm
4 mm
5.5 mm
5.5 mm
5.5 mm
13 mm
17 mm
17 mm
2
2
2
2
2
2
2
2
0.65 x 0.3 mm
0.65 x 0.3 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
053149*
063232**
913133
414273
913660
023397
913134
593272
244268
244268
254137
254137
254851
244126
224410
244410
* Termination Length: 3.7 mm
** Termination Length: 4.5 mm
*** Termination Length: 2.9 mm
4
www.erni.com
Catalog E XXXXXX
06/07
Edition 3
Vertical Female Connectors Type C
Number Termination
of Pins
a
b
c
Termination
Length
Class
Pin
Dimensions
8
7
6
5
4
3
2
1
Part Number
Old Design
a
b
Part Number
New Design
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
L
0,2
c
96
96
96
96
96
96
96
96
96
96
96
96
96
96
Pressfit
Pressfit
Pressfit
Pressfit
Pressfit w/o Flange
Pressfit w/o Flange
Pressfit
Pressfit
Pressfit w. Transfer Zone
Pressfit w. Transfer Zone
Pressfit w. Transfer Zone
Pressfit w. Transfer Zone
Pressfit w. Transfer Zone
Pressfit w. Transfer Zone
2.9 mm
4 mm
5.5 mm
5.5 mm
5.5 mm
5.5 mm
5.5 mm
5.5 mm
13 mm
13 mm
13 mm
17 mm
17 mm
17 mm
2
2
1
1
1
2
2
2
2
2
1
1
1
2
0.65 x 0.3 mm
0.65 x 0.3 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
0.6 x 0.6 mm
063512
053595**
013159
004365
103691
033109
913110
414437
063570
013964
013808
593274
023387
913135
254117
204752
254015
254015
254849
254850
224408
224408
224412
224412
284135
254931
254931
244295
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
a
b
c
8
7
6
5
4
3
2
1
a
b
c
L
0,2
32
THR
2.5 mm
2
0.6 x 0.6 mm
-
224477
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
a
b
c
8
7
6
5
4
3
2
1
a
b
c
L
0,2
64
64
THR
THR w/o Flange
2.5 mm
4 mm
2
2
0.6 x 0.6 mm
0.6 x 0.6 mm
164945***
-
224475
223801
* Termination Length: 3.7 mm
** Termination Length: 4.5 mm
*** Termination Length: 2.9 mm
5
www.erni.com
Catalog E XXXXXX
06/07
Edition 3
