063586 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 063586

063586: DescriptionBoard Euro Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size135KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

063586 Overview

Board Euro Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Latch & Eject, Receptacle

063586 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ROHS COMPLIANT
Board mount options	HOLE .099-.111
body width	0.335 inch
subject depth	0.669 inch
body length	2.065 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.0016 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	063586
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	26
UL Flammability Code	94V-0
Evacuation force-minimum value	2.0016 N
Base Number Matches	1

Preview

Download Datasheet

View All

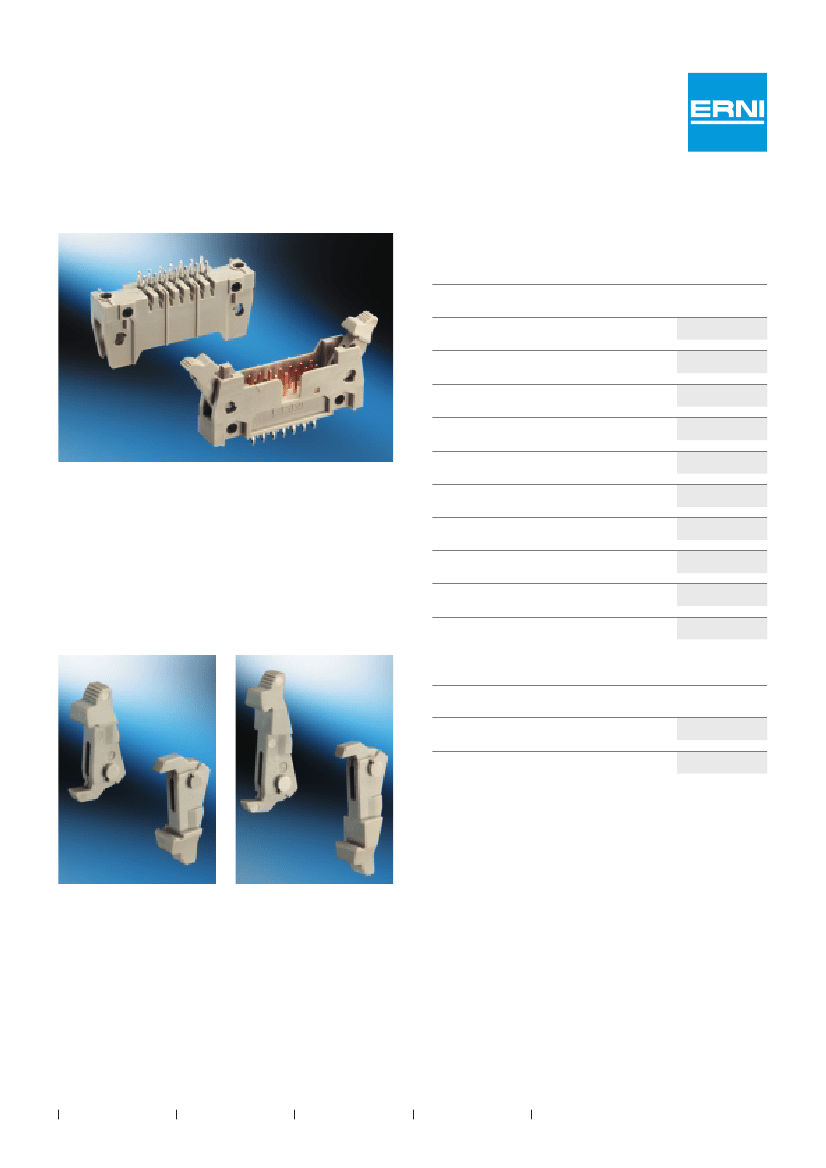

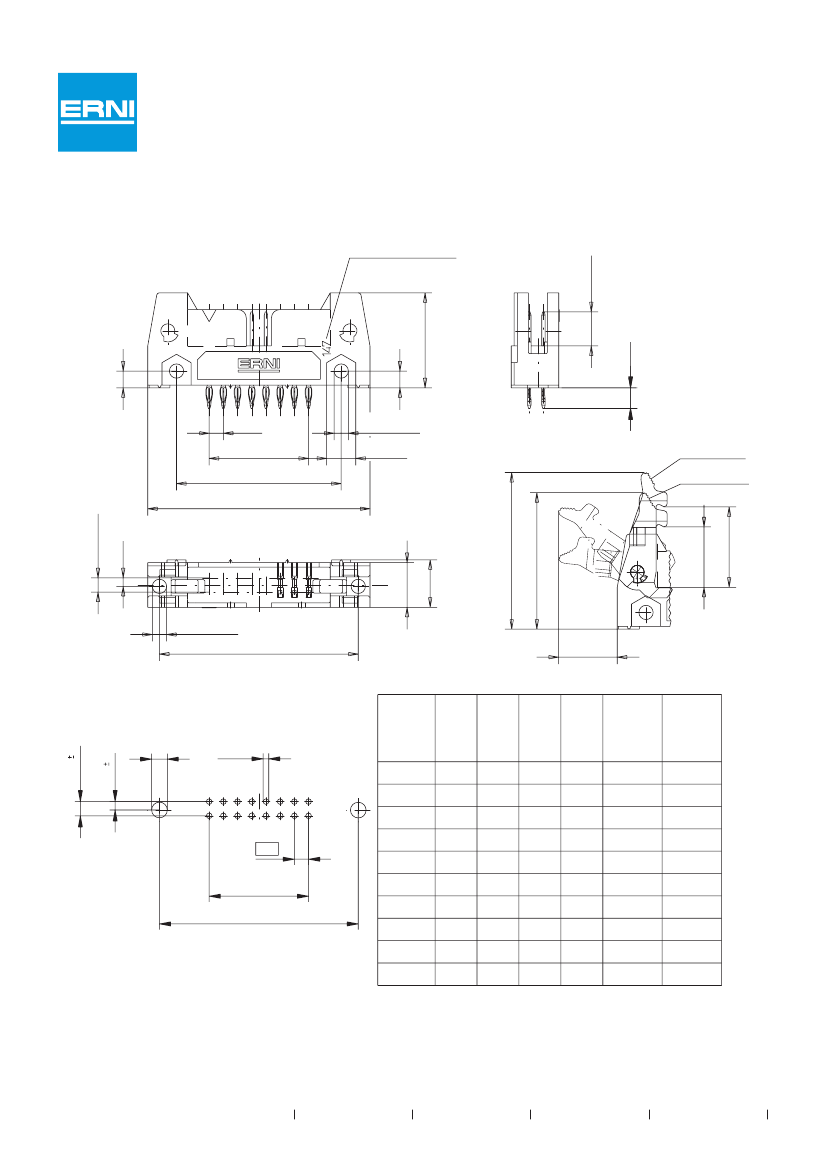

Pressfit Male Connectors with Locking Feature

Ordering Information

LPV-M Termination: Pressfit

No. of pins

ERNI LPV connectors with pressfit zone can be used in

applications where a soldering process is not possible or a

second process not required, i.e. with backplanes. Therefore

ERNIs pressfit EE zone for 1mm holes is our customers’

preferred solution. More than 20 years of experience in this

area makes ERNI one of the most competent partners in the

world. Additionally our customers can benefit from approvals

of several automotive suppliers.

Part number

063582

063583

063584

063585

063586

063587

063588

063589

063590

063591

Interlocking Latches

(Order 2 per male connector)

Part number

Interlocking Latch long

Interlocking Latch short

154931

073091

Pressing-in without interlocking latches.

The latches are mounted subsequently.

Catalog E 074546

05/05

Edition 1

www.erni.com
