063805: DescriptionBoard Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

063805 Overview

Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,

063805 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	175
Base Number Matches	1

Preview

Download Datasheet

View All

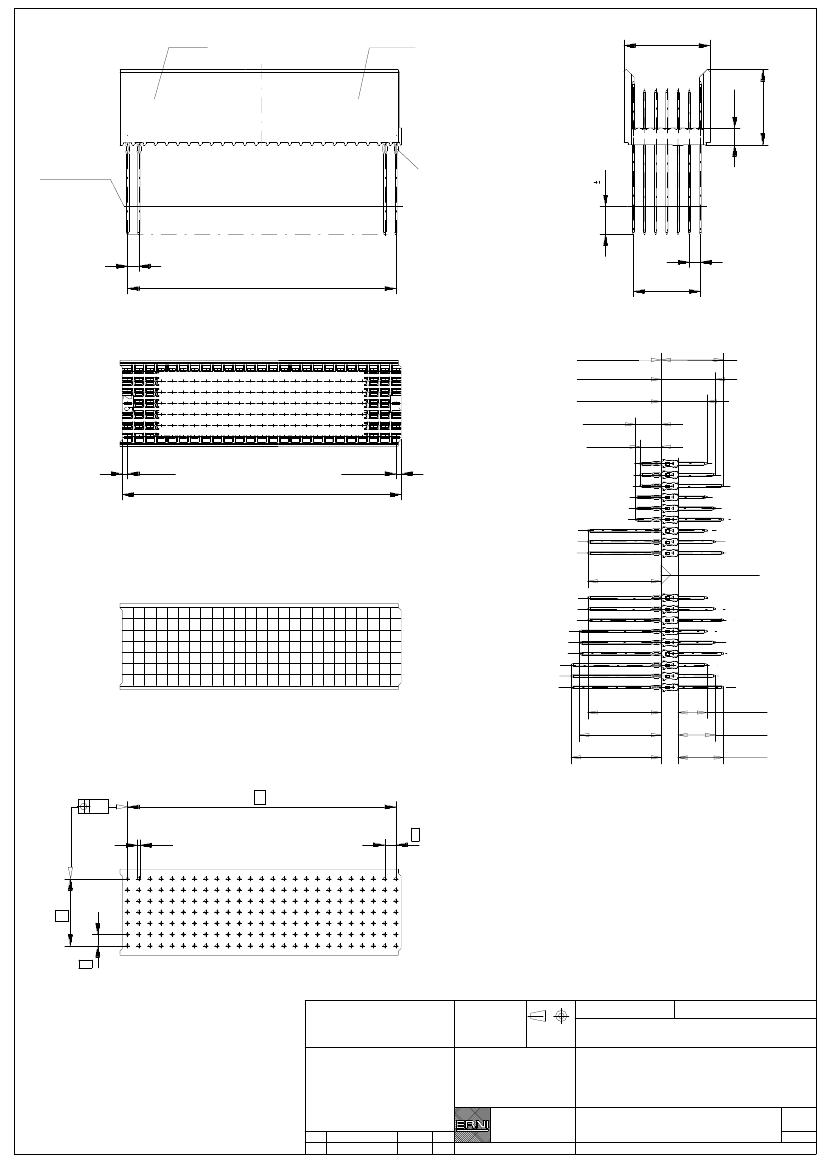

Ident-Nr.

Date Code

15,4

EE Zone für durchkontaktierte

Löcher ø0.6

±0.05

compliant zone for thru hole

ø 0.6±0.05

5

Alignment strip

0,5

Ausrichtstreifen

2

24 x 2 =

48

6x2=

2

12

25

1

z

a

b

c

d

e

f

Ebene -

Level 3

Level 2

11.2

9.7

8.2

+0.2

Ebene - Level 1

+0.2

4.5

±0.3

3.7

±0.3

A

1 max.

50 max.

1 max.

P2

P1

U1

B

C

D

E

F

G

H

J

Bestückungsplan -

contact layout

13

±0.3

8

7

6

5

4

3

2

1

Bezugsebene Tiefe

Datum plane depth

25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

K

z

a

b

c

d

e

f

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

S

T

R3

R2

R1

13

±0.2

14.5

±0.2

L

M

N

P

Q

R

S

T

5.3

±0.1

6.8

8.3

±0.1

Lochbild für Leiterplatte

(Bestückungsseite)

Board hole pattern

(Component mounting side)

16

±0.2

0.1

alle Löcher

all holes

24 x 2 = ( 48 )

1)

2

ø 0,6

±0,05

Durchmesser des metallisierten Loches

ø 0,6

±0,05

Diameter of finished plated-through hole

ø 0,7

±0,02

Bohrungsdurchmesser des Loches

ø 0,7

±0,02

Diameter of drilled hole

Schichtaufbau im metallisierten Loch siehe Zeichnung 114406

Metal plating of plated-through hole see drawing 114406

Fehlende Masse und Angaben nach IEC 1076-4-101

6 x 2 = ( 12 )

z

a

b

c

d

e

f

2

25

1

Missing information and dimensionsper IEC 1076-4-101

Information: R1 Level 2, 3

siehe Bestückungsplan/

see contact layout

Anforderungsstufe 2 /

Consider protection memo from DIN 34

Tolerances

All Dimensions

in mm

Scale

2:1

class 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

ERmet Messerleiste B

ERmet Male Wide Type B

www.ERNI.com

a

Index

13.06.2006

Date

C:00057863.SZA

063805

ERM

B

13,45

-0,1

3

-0,1

XXXXXXX

ERNI

063805

I
