Vertical Male Connectors Type C For Backplanes
55 signal contacts
25 mm extension module
The ERmet type C vertical male connector provides 55 sig-
nal contacts and 22 ground shield contacts in 5+2 row x 11
position, fully loaded configuration. With 15 different standard
pin lengths to choose from, this is one of the most versatile
connectors available. The connector is designed for gas
tight pressfit installation.
The ERmet type C vertical male connector incorporates
pre-alignment guides but has no multi function cavity. This
connector is designed to be used alone or in conjunction
with either type B, L, M or N ERmet connectors, however it
can only be installed at the lower end of a connector row.

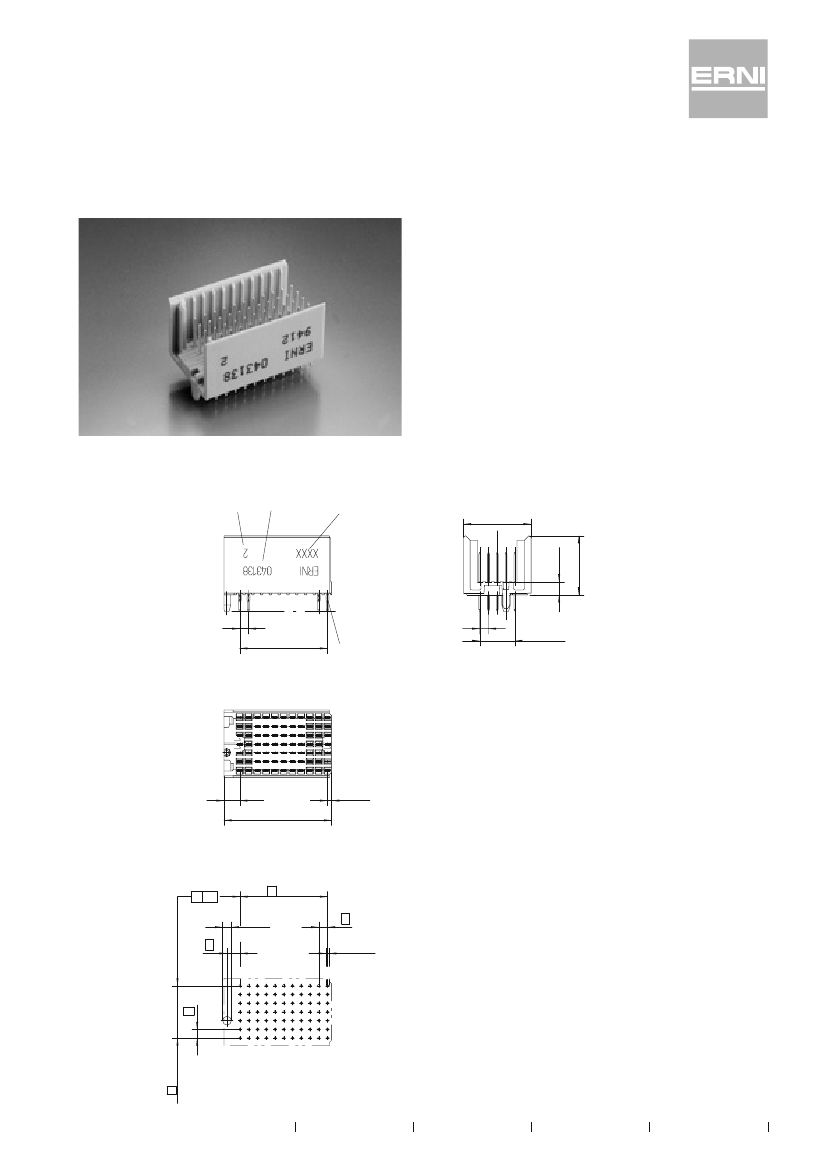

Dimensional drawings and board hole pattern
class
Id.-Nr.
date
15.4
- 0.1
0.1
3
-
Note: The numbering on the connectors themselves is in accordance with the IEC 61076-4-101 standard. All dimensions in mm.
2
10 x 2 =
20
compliant zone for thru hole
0.6`0.0±0.05
2
4x2=
8
11
1
z
a
b
c
d
e
f
3.7
25 max
1 max
Board hole pattern
(Component mounting side)
0.1
all holes
10 x 2 =
2
+ 0.05
( 20 )
2
0.6
1
+ 0.05
-
3
11
not plated thru
plated thru
drill hole 0.7
z
a
b
c
d
e
f
±0.02
130
6x2=
( 12 )
2
Catalog E 074482
08/06
Edition 4
13.45
www.erni.com

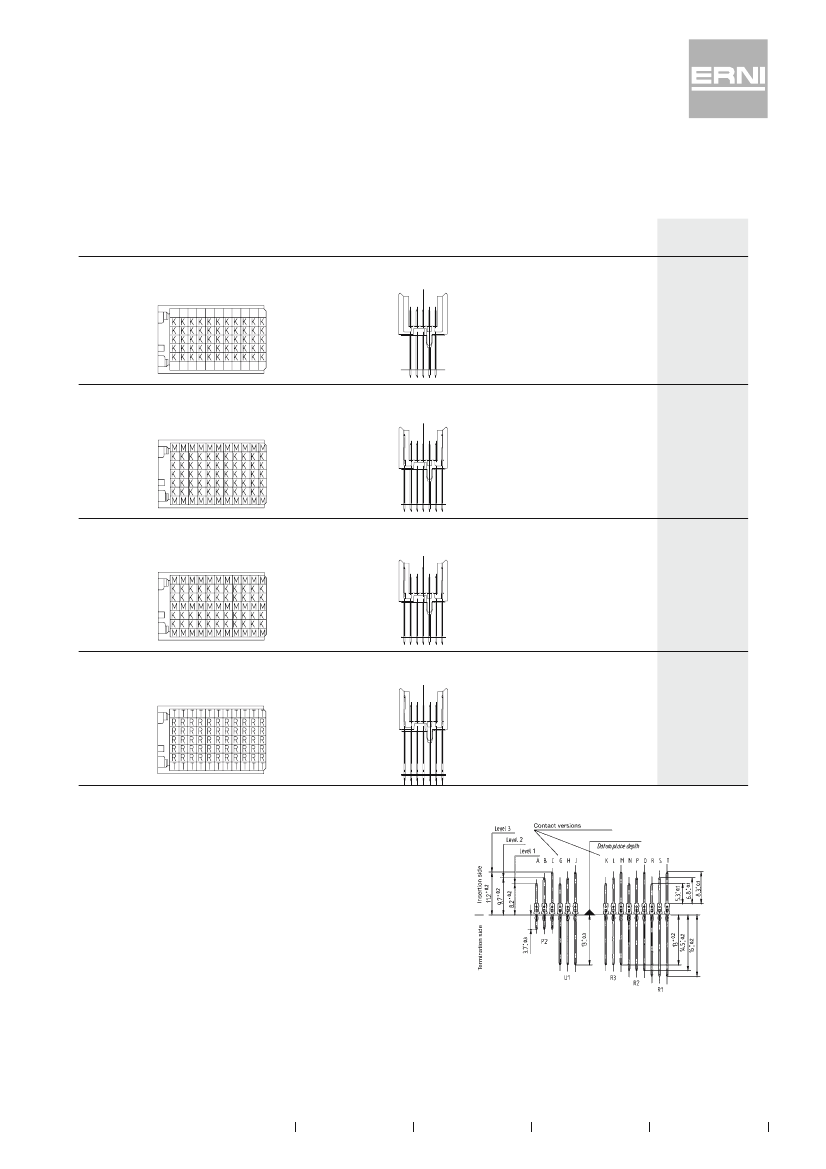

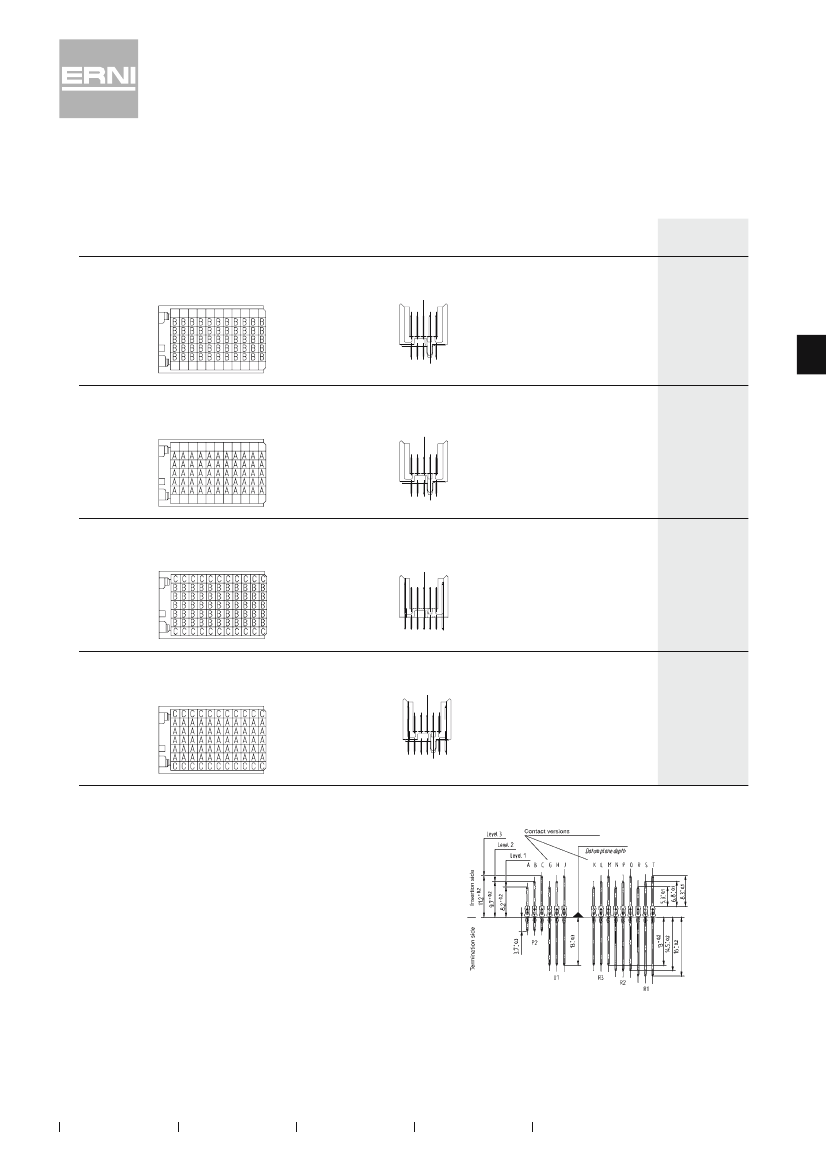

Vertical Male Connectors Type C For Backplanes
Ordering Information
Configuration
Used For
No. of
Pins
Part Number
ERmet 2.0mm
Type C Without Shield, With Peg
11 10 9 8 7 6 5 4 3 2 1
z
a
b
c
d
e
f
55
043138
Type C Without Shield, With Peg
11 10 9 8 7 6 5 4 3 2 1
z
a
b
c
d
e
f
55
044147
Type C With Shield, Without Peg
11 10 9
8
7
6
5
4
3
2
1
z
a
b
c
d
e
f
77
054546
Type C With Shield, With Peg
11 10 9 8 7 6 5 4 3 2 1
z
a
b
c
d
e
f
77
053009
Contact versions
ERNI can accommodate any pattern of male connector
contact loading.
For shield rows z and f (7 row connectors) or z and y (10
row connectors), level 3 contacts should be specified. For
rear I/O and shrouds, choose contacts with the R1, R2 or
R3 terminal length. Each contact has a unique letter desig-
nation. Use this letter designation when filling in the contact
loading requirements on the ERNI Customer Request Form.
Catalog E 074482
08/06
Edition 4
www.erni.com
131
Vertical Male Connectors Type C For Backplanes
Ordering Information
Configuration
Used For
No. of
Pins
Part Number
Type C Without Shield, With Peg And With Extended Terminals
11 10 9 8 7 6 5 4 3 2 1
z
a
b
c
d
e
f
55
054129
Type C With Shield, With Peg And With Extended Terminals
11 10 9 8 7 6 5 4 3 2 1
z
a
b
c
d
e
f
77
064550
Type C With Shield, With Peg And With Extended Terminals
11 10 9 8 7 6 5 4 3 2 1
z
a
b
c
d
e
f
77
064572
Type C With Shield, With Peg And With Extended Terminals
11 10 9 8 7 6 5 4 3 2 1
z
a
b
c
d
e
f
77
103926
Contact versions
ERNI can accommodate any pattern of male connector
contact loading.
For shield rows z and f (7 row connectors) or z and y (10
row connectors), level 3 contacts should be specified. For
rear I/O and shrouds, choose contacts with the R1, R2 or
R3 terminal length. Each contact has a unique letter desig-
nation. Use this letter designation when filling in the contact
loading requirements on the ERNI Customer Request Form.
132
Catalog E 074482
08/06
Edition 4
www.erni.com
