064861 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 064861

064861: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Press Fit Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size425KB，8 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

064861 Overview

D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Press Fit Terminal, #4-40, Receptacle

064861 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: DIN 41652; MIL-C-24308; IEC 807-3
body width	0.509 inch
subject depth	0.591 inch
body length	1.556 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
insulator material	PBT/PCT
MIL compliance	YES
Manufacturer's serial number	TMC
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.126 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

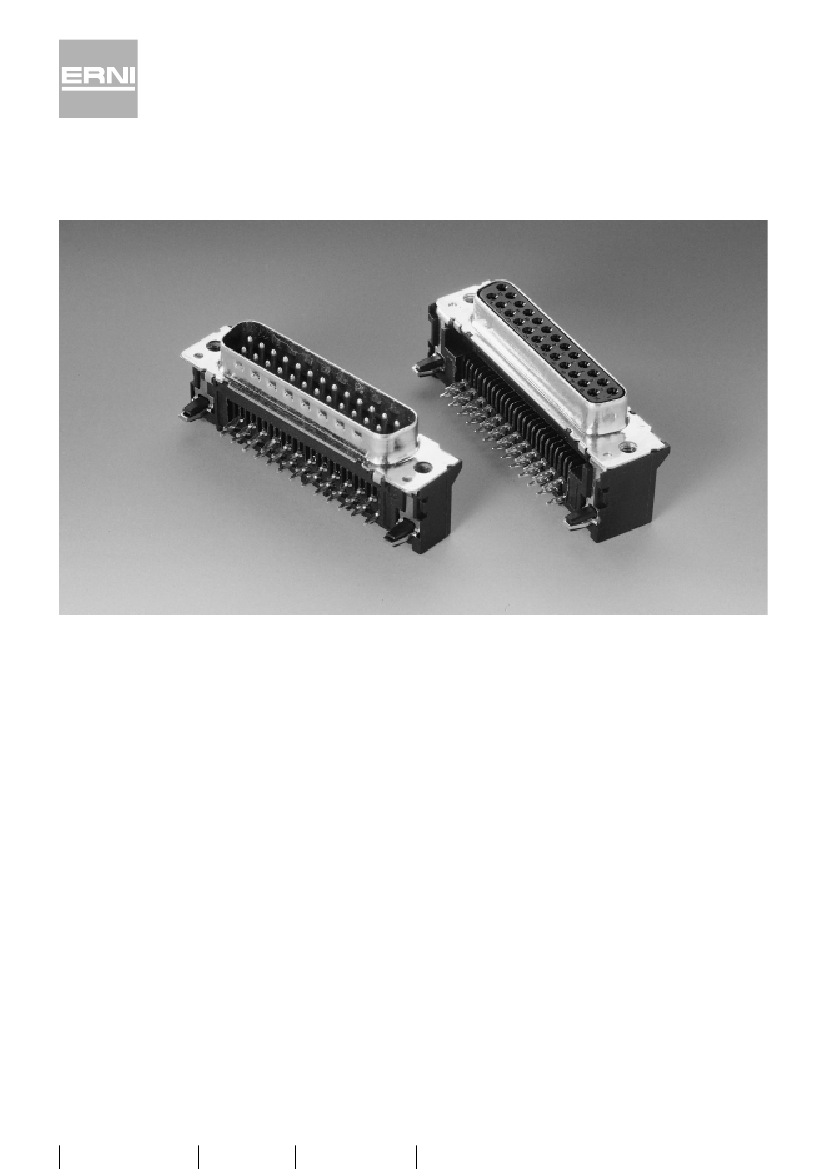

Right angle press-fit D-Sub connectors

Version in Standard and in Eurostyle

General

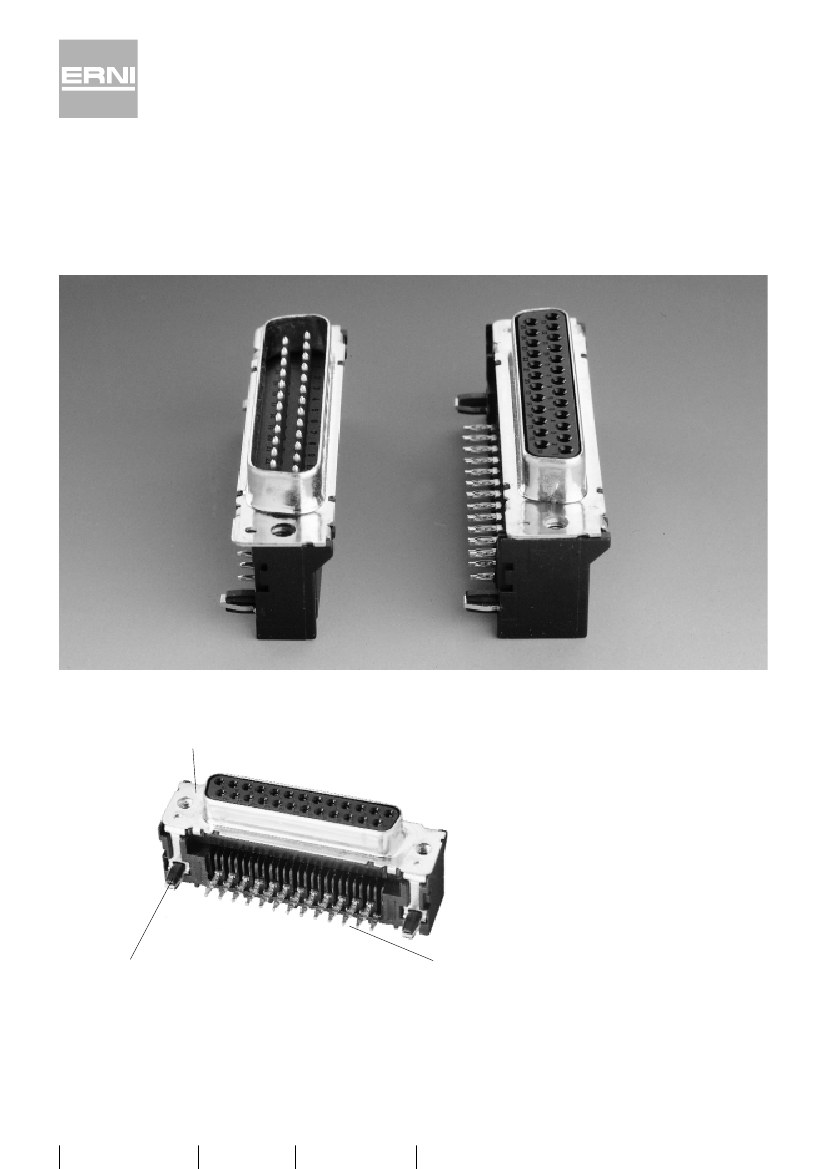

The new generation of right angle D-Sub connectors with

press-fit termination of the TMC series are according to

DIN 41 652, MIL-C-24308 and IEC 807-3.

These D-Sub connectors are specially designed for applica-

tions in PC Interface Cards and other plug-in cards with multi-

layer PC Boards or SMT assembly. There you can use the

benefits of the solderless press-in technology with its high reli-

ability. A solid metal clip secures the fixing on the PC Board

and no mating forces on to the contacts, e.g. of a cable con-

nector, and excellent grounding.

The new right-angle D-Sub press-fit connectors are available

in the version Standard or Eurostyle. Both versions can be

delivered with 9, 15, 25 or 37 pins.

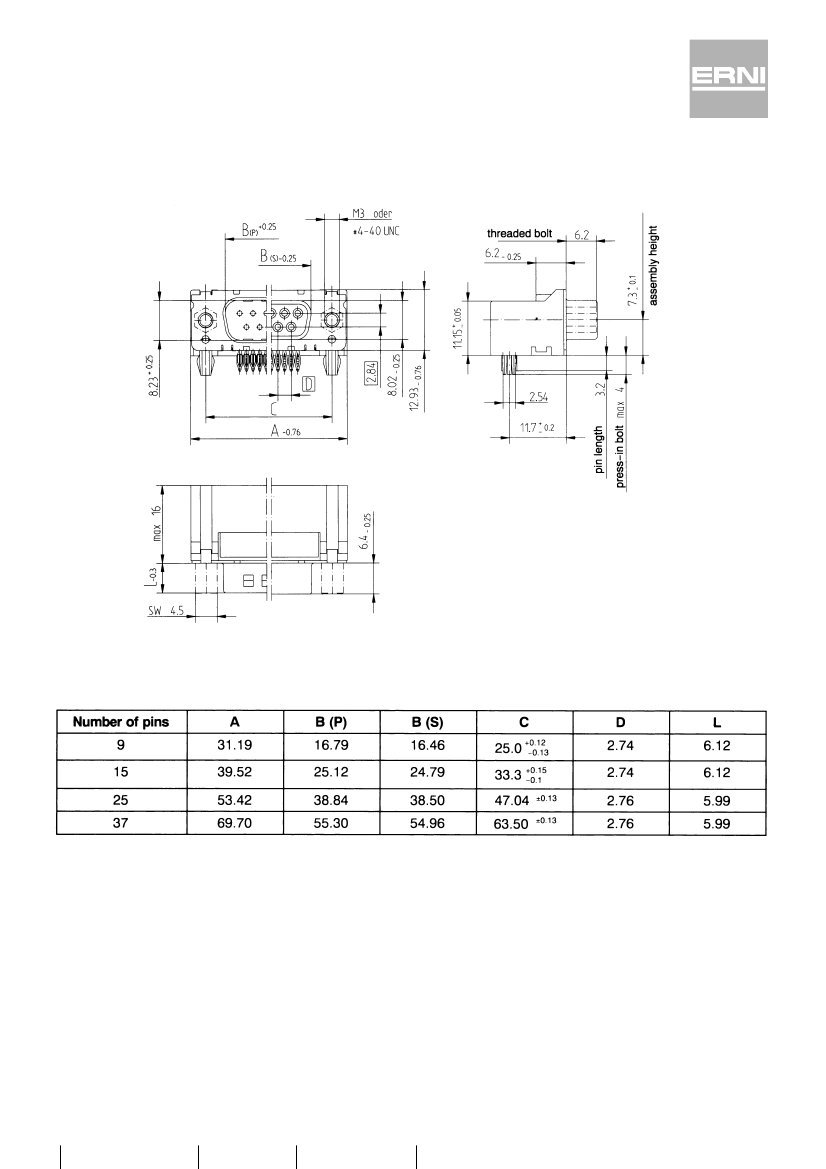

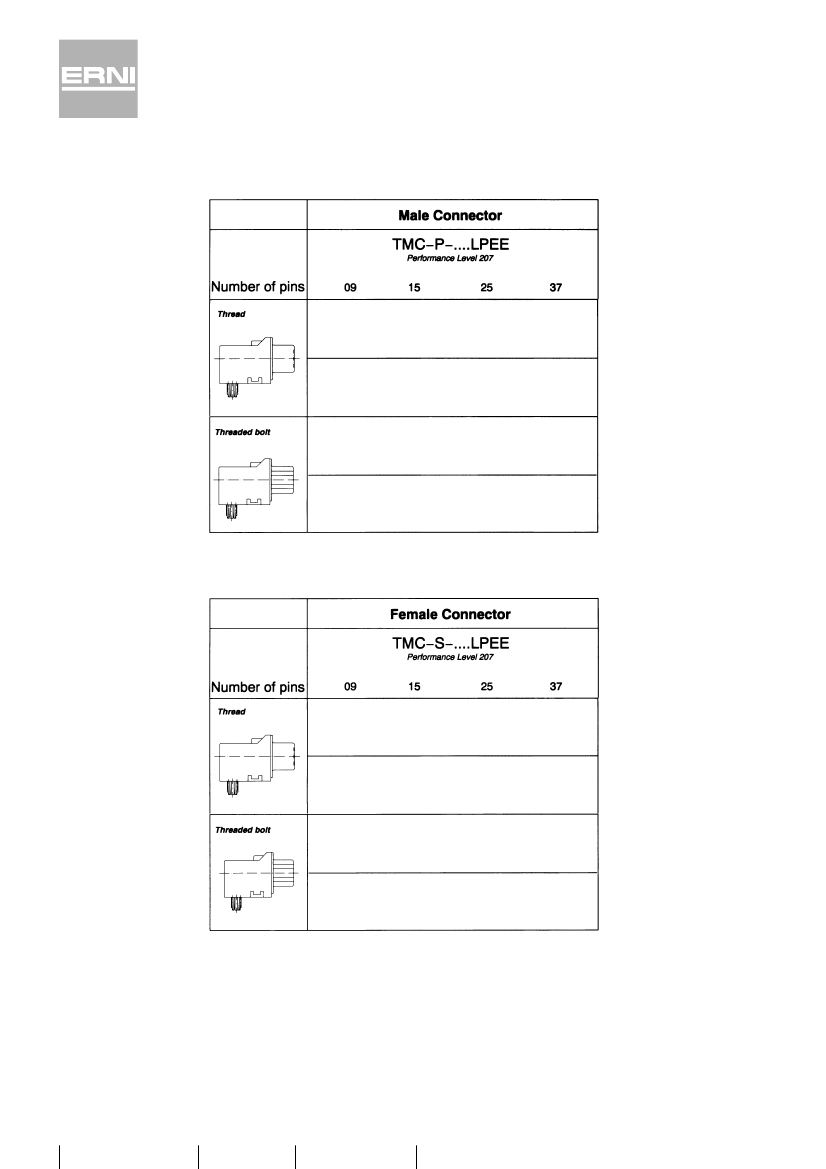

Main features

• Gas-tight, corrosion-proof and mechanically

strong-connection

• Non-polluting due to no use of cleaning, flux or solder

media

• No thermal stress on to the PC Board

• Female and male right angle connectors with press-fit ter-

mination

• Versions in Standard (assembly height: 7.3 mm) and

Eurostyle (assembly height: 3.6 mm)

• Versions with M3 or #4-40

• Number of contacts: 9, 15, 25, 37

• Versions with threaded bolt M3 or #4-40

• Excellent grounding and fixing via integrated solid

grounding clip, which has also a press-fit pin

• Short pin lenght of 3.2 mm (4 mm) for underlaying plug-in

cards or other daughter boards

• For SMT and multilayer PC Boards with min. 1.6 mm

thickness

• PC Board hole diameters of 1.0 mm according to the IEC

specification

• Easy assembly of the connectors with standard flat

press-in tools

www.ERNI.com/contact/

catalog E 074484

05/02

Edition 4
