0697-0-15-01-30-01-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 0697-0-15-01-30-01-10-0

0697-0-15-01-30-01-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size68KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

0697-0-15-01-30-01-10-0 Overview

PCB Terminal

0697-0-15-01-30-01-10-0 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0697
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

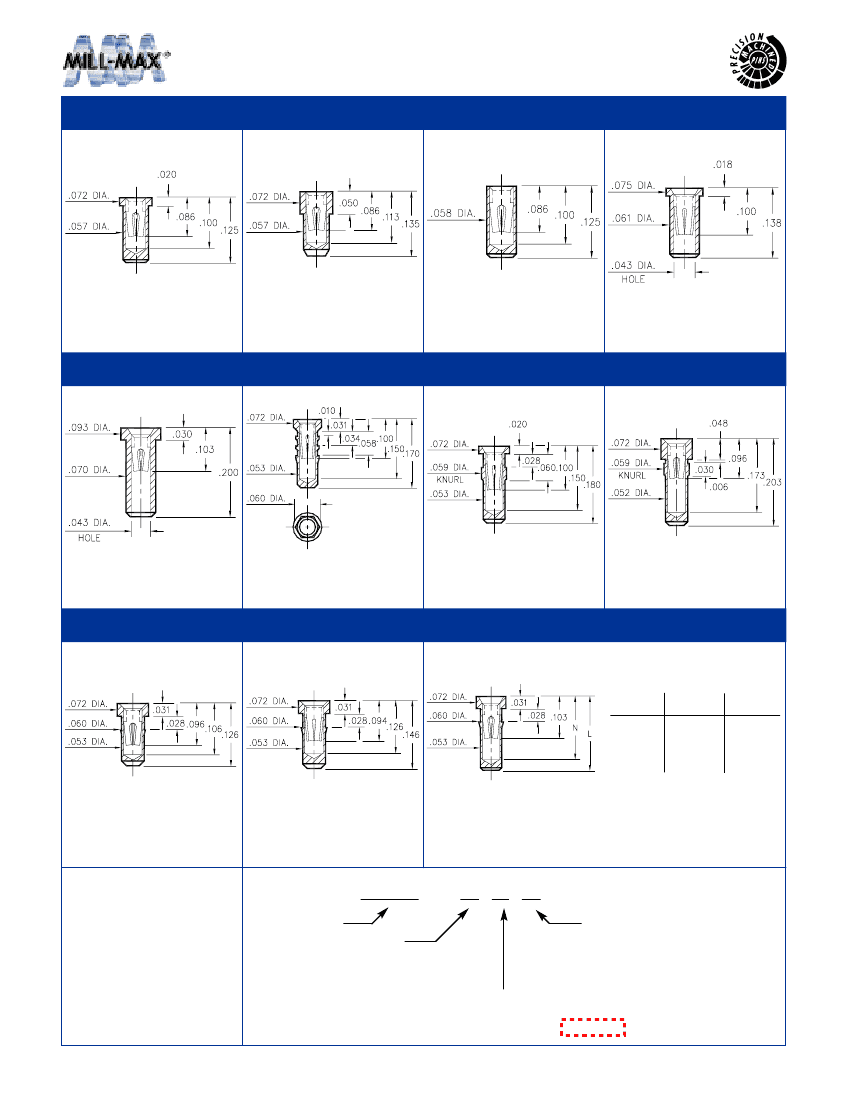

PIN RECEPTACLES

for .015” - .025” diameter pins

0669

0670

0673

0666

0669-0-15-XX-30-XX-10-0

Solder mount in .060 min.

mounting hole

0670-0-15-XX-30-XX-10-0

Solder mount in .060 min.

mounting hole

0673-0-15-XX-30-XX-10-0

Surface Mount

0666-0-15-XX-32-XX-10-0

Solder mount in .064 min.

mounting hole

0341

0252

0678

0676

0341-0-15-XX-30-XX-10-0

Press-fit in .073 mounting hole

0252-0-15-XX-32-XX-10-0

Hex press-fit in .057 plated

thru hole

0678-0-15-XX-32-XX-10-0

Press-fit in .057 mounting hole

0676-0-15-XX-30-XX-10-0

Press-fit in .057 mounting hole

0697

0668

0253/1033

Basic Part

Number

Length

Depth

0253-0

1033-0

.173

.203

.148

.162

0697-0-15-XX-30-XX-10-0

Press-fit in .057 mounting hole

0668-0-15-XX-30-XX-10-0

Press-fit in .057 mounting hole

XXX3-0-15-XX-30-XX-10-0

Press-fit in .057 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - 0 - 15 - XX - 3X - XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

200µ"

TIN/LEAD OVER

NICKEL

10µ"

GOLD OVER

NICKEL

SELECT CONTACT

#30 OR #32

CONTACT (DATA ON PAGE 208)

SPECIFY CONTACT FINISH:

200µ"

TIN/LEAD OVER

NICKEL

10µ"

GOLD OVER

NICKEL

30µ"

GOLD OVER

NICKEL

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253

133
