WESTCODE
An
IXYS Company
German Standard DIN80 Square Body Fuses - 690V
Date:- 17 Mar, 2005
Data Sheet Issue:- 1
Ultra Rapid
Semiconductor Protection Fuse
European Square Body Fuses 690V
German Standard DIN 80
Voltage Rating - 690V
Current Ratings from 16A to 450A
aR Characteristics
Size 00
Key Features:
Extremely high breaking capacity fuses for the protection of power semiconductors as per
IEC Standard 60269.1 and 4.
690V voltage rating complying with IEC 33
Non Magnetic construction
gRB Characteristics with ratings from 16 to 125A in accordance with VDE 636-23
Clearing all overloads
Improving safety and protection
Enabling selective co-ordination with all fuses
All models available with or without integrated trip indicator
Microswitch MS 4L 2-5 B6
Fuse holder SI 00 DIN80
Data Sheet 069GUDAxxxxF
Issue 1
Page 1 of 5
March, 2005
WESTCODE
An
IXYS Company
German Standard DIN80 Square Body Fuses - 690V
Main Characteristics:
Pre-arcing
I
2
t @ 1
Current
ms
rating I
N
(A)
I
2
t
p
(A
2
s)
16
7
20
25
32
40
50
63
80
100
125
160
200
250
315
350
400
450
10
15
32
61
102
177
390
692
1170
2680
4690
8300
17520
25450
33200
19600
Total
Clearing
I
2
t @ U
N
(A
2
s)
52
75
120
210
400
700
1200
2200
3900
6600
14000
24000
42500
81000
118000
150000
225000
Size
Voltage
U
N
(V)
Ref:
Micro
Switch
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Power Losses
0.8I
N
I
N
3.8
5
6
8.2
9.9
11.5
12.6
13.8
15.4
18.1
19.8
23.1
27.5
31.9
33
38.5
40.7
7
9
11
15
18
21
23
25
28
33
36
42
50
58
60
70
74
Tested
Interrupting
rating
069GUDA0016F
069GUDA0020F
069GUDA0025F
069GUDA0032F
069GUDA0040F
069GUDA0050F
069GUDA0063F
00
690V
069GUDA0080F
069GUDA0100F
069GUDA0125F
069GUDA0160F
069GUDA0200F
069GUDA0250F
069GUDA0315F
069GUDA0350F
069GUDA0400F
600V
060GUDA0450F
200kA @ 690V
200kA @ 600V
Notes: Minimum operating voltage for integrated trip indicator = 20V
Micro switch reference : MS 4L 2-5 B6
Data Sheet 069GUDAxxxxF
Issue 1
Page 2 of 5
March, 2005
WESTCODE
An
IXYS Company
German Standard DIN80 Square Body Fuses - 690V
Electrical Characteristics:

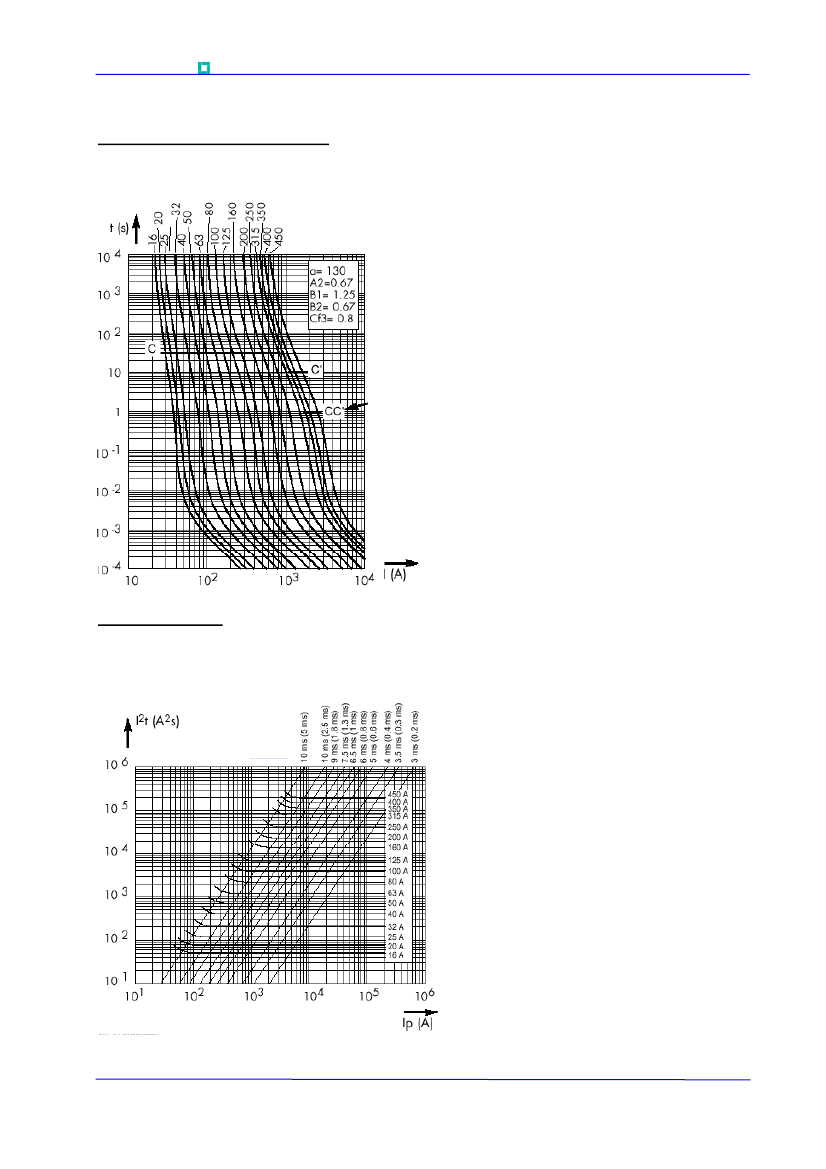

Times vs Current Characteristics:
These curves indicate, for each rated current, the pre-arcing time vs. the RMS pre-arcing current.
Tolerance for the mean pre-arcing current ± 8%
Size 00
aR
Total Clearing I
2
t:
The horizontal curves show, for each rated current, values of total clearing I
2
t(I
2
t
t
) as a function of
prospective current Ip @ U
N
with cosϕ = 0.15. Oblique lines indicate total clearing duration Tt, with
associated pre-arcing duration in brackets.
Size 00
aR
Data Sheet 069GUDAxxxxF
Issue 1
Page 3 of 5
March, 2005
WESTCODE
An
IXYS Company
German Standard DIN80 Square Body Fuses - 690V
Cut off Characteristics:
Corrective Factor:
Size 00
aR

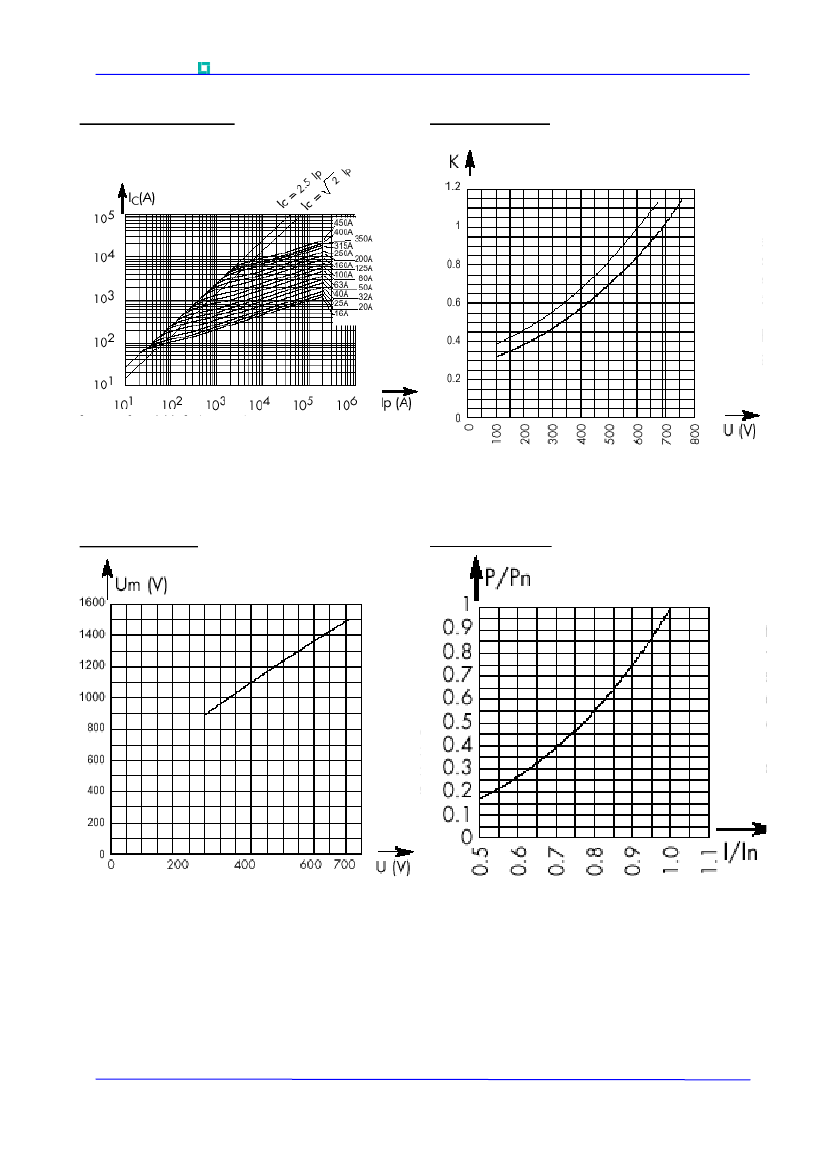

Curves show for each current rating value of peak
let-through current I
c
as a function of available fault
current Ip
Peak Arc Voltage:
Mean curves show variation of total clearing time
(I
2
t
t
) and total clearing duration T
t
as a function of
operating voltage U.
Dissipated Power:
Curve shows peak value Um of arc voltage which
appears across fuse link as a function of the
operating voltage U@ cos
ϕ
= 0.15
Curve enables computation of power losses P
for a I
N
-rated fuse as a function of RMS current I
(as a multiple of I
N
for steady state operation).
Data Sheet 069GUDAxxxxF
Issue 1
Page 4 of 5
March, 2005
WESTCODE
An
IXYS Company
German Standard DIN80 Square Body Fuses - 690V
Outline Drawing & Ordering Information:
069GUDAxxxxF
with trip (tag) indicator switch (190g)
Weight : 140g
ORDERING INFORMATION
Voltage Rating
(V)
690
Type
GU
Size
D
Fixing
A
(Please quote code as below)
Current Rating (A)
16 to 450
Trip Indicator
F
Order code: e.g.
069GUDA0050F
= 690V German Standard, Size 00, 80mm fixing, 50amp fuse with trip (tag) indicator switch
IXYS Semiconductor GmbH
Edisonstraße 15
D-68623 Lampertheim
Tel: +49 6206 503-0
Fax: +49 6206 503-627
E-mail:
marcom@ixys.de
IXYS Corporation
3540 Bassett Street
Santa Clara CA 95054 USA
Tel: +1 (408) 982 0700
Fax: +1 (408) 496 0670
E-mail:
sales@ixys.com
Westcode Semiconductors Ltd
Langley Park Way Langley Park
Chippenham Wiltshire SN15 1GE
Tel: +44 (0)1249 444524
Fax: +44 (0)1249 659448
E-mail:
WSL.sales@westcode,com
Westcode Semiconductors Inc
3270 Cherry Avenue
Long Beach CA 90807 USA
Tel: +1 (562) 595 6971
Fax: +1 (562) 595 8182
E-mail:
WSI.sales@westcode.com
© Westcode Semiconductors Ltd.
www.westcode.com
www.ixys.com
The information contained herein is confidential and is protected by Copyright. The information may not be used or disclosed
except with the written permission of and in the manner permitted by the proprietors Westcode Semiconductors Ltd.
In the interest of product improvement, Westcode reserves the right to change specifications at any time without prior notice.
Data Sheet 069GUDAxxxxF
Issue 1
Page 5 of 5
March, 2005
