06PCRM30: DescriptionSnap Acting/Limit Switch, DPDT, Momentary, 1A, 30VDC, Wire Terminal, Roller Type Actuator, Panel Mount-threaded,; CategoryMechanical and electronic products switch; File Size176KB，3 Pages; ManufacturerEsterline Power Systems

Download Datasheet Parametric View All

06PCRM30 Overview

Snap Acting/Limit Switch, DPDT, Momentary, 1A, 30VDC, Wire Terminal, Roller Type Actuator, Panel Mount-threaded,

06PCRM30 Parametric

Parameter Name	Attribute value
Maker	Esterline Power Systems
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Actuator type	ROLLER TYPE
body width	20 mm
body height	30.3 mm
Body length or diameter	40 mm
Contact (AC) maximum rated R load	1A@115VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@30VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	30 V
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
seal	IP66
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

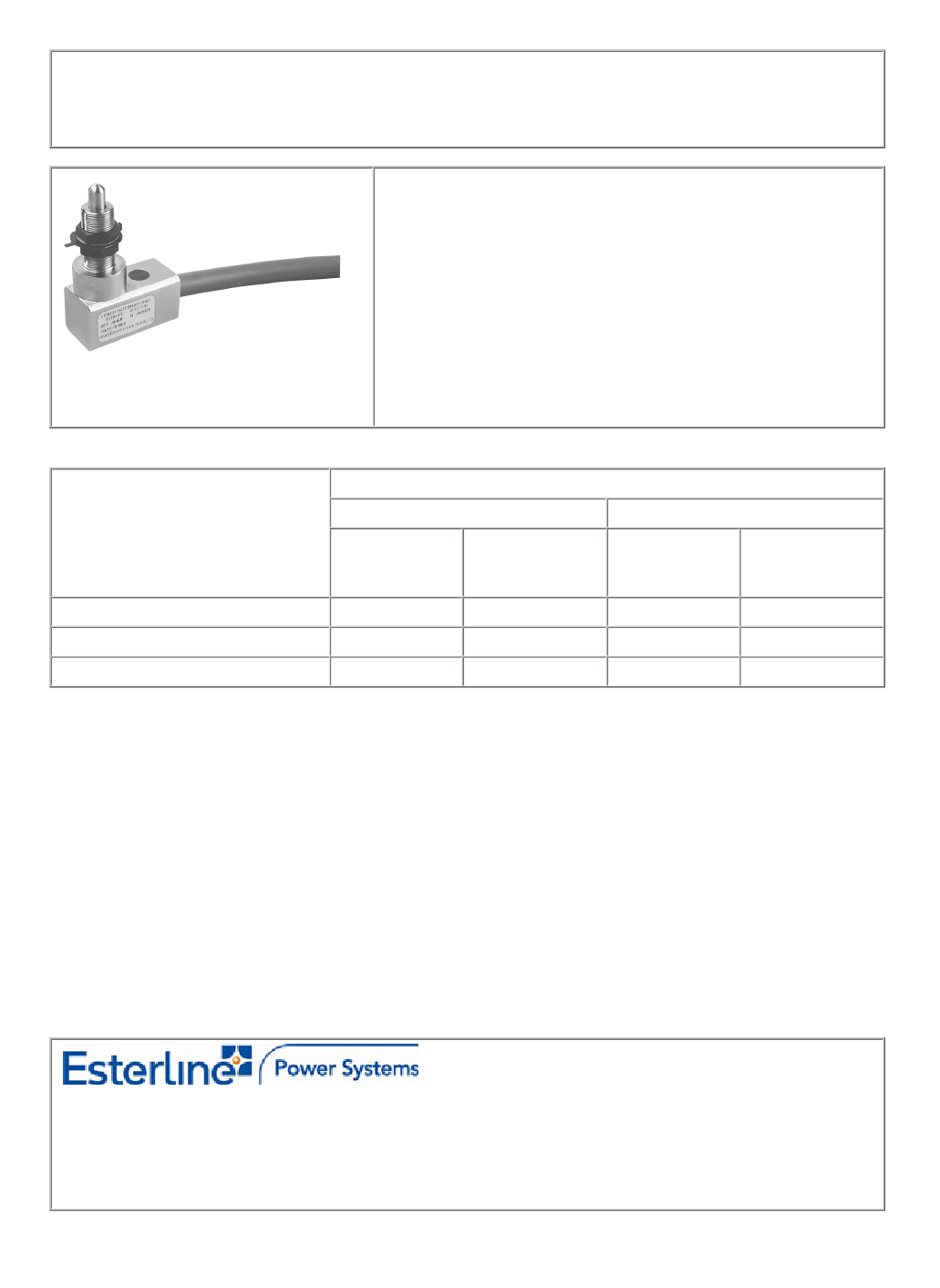

SERIES 06P

ENGINEERING DATA SHEET

WATERPROOF LIMIT SWITCH

2 PDT, 1 AMP

PRINCIPLE TECHNICAL CHARACTERISTICS

Waterproof limit switch (snap action)

Rounded end or roller ended actuator

Operating point adjustment by the mounting nuts and positioning

washers on the mounting panel.

Certification - French Navy

Weight

All stainless steel material

115 grams max

Without cable

CONTACT ELECTRICAL CHARACTERISTICS

Electrical ratings

30Vdc

Load type

Nominal

rating

(Amps)

1

0.7

0.2

Overload

rating

(Amps)

2

1.5

1

115Vac / 400Hz

Nominal

rating

(Amps)

1

0.5

Overload

rating

(Amps)

2

1

Resistive

Inductive (L/R=5ms)

Lamp

Featuring

LEACH

©

power and control solutions

www.esterline.com

AMERICAS

6900 Orangethorpe Ave.

P.O. Box 5032

Buena Park, CA 90622

.

Tel: (01) 714-736-7599

Fax: (01) 714-670-1145

EUROPE

2 Rue Goethe

57430 Sarralbe

France

.

Tel: (33) 3 87 97 31 01

Fax: (33) 3 87 97 96 86

ASIA

Units 602-603 6/F Lakeside 1

No.8 Science Park West Avenue

Phase Two, Hong Kong Science Park

Pak Shek Kok, Tai Po, N.T.

Hong Kong

Tel: (852) 2 191 3830

Fax: (852) 2 389 5803

Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.

Date of issue: 4/06

- 13 -

Page 1 of 3
