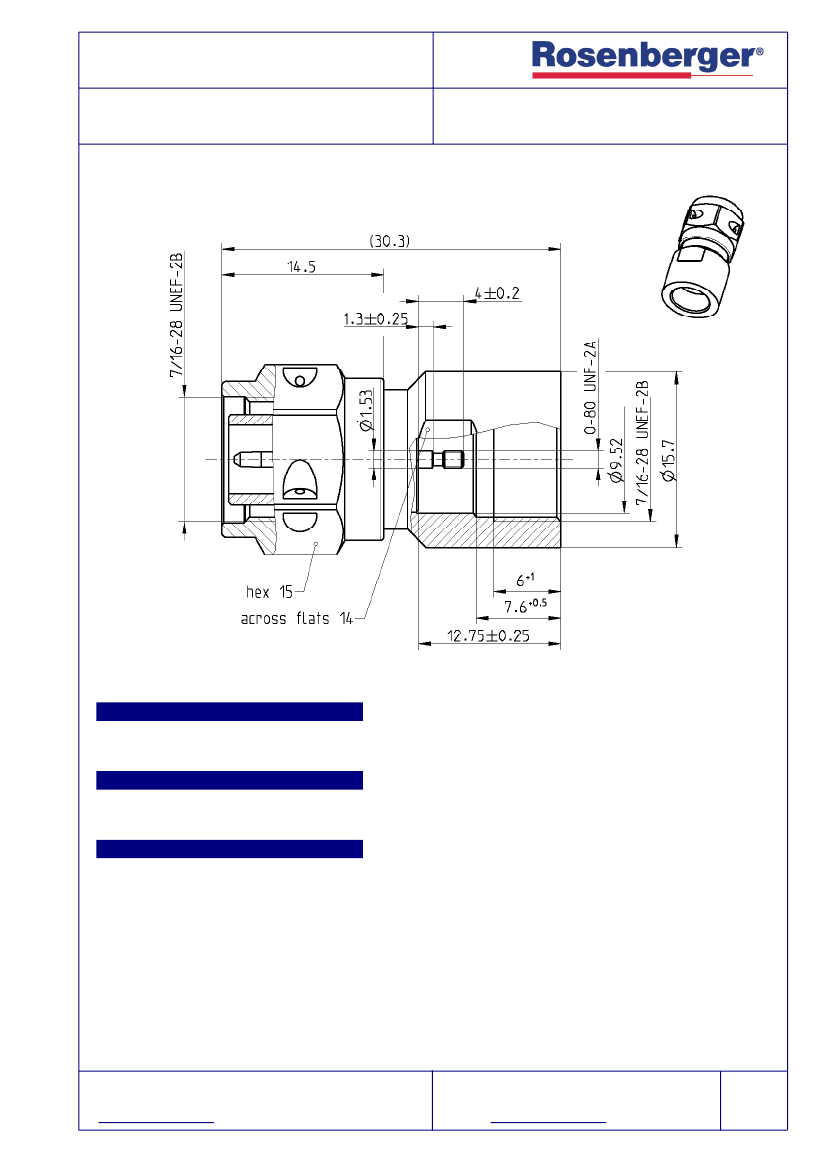

TECHNICAL DATA SHEET
RPC-TNC
CONNECTOR HEAD
PLUG
06S121-000S3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-26
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Coupling nut
Dielectric 1
Dielectric 2
Material
Beryllium copper
Stainless steel
Stainless steel
PTFE
PPE
Plating
Gold, min. 1.27 µm, over chemical nickel
Passivated
Passivated
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
RPC-TNC
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
- Interface only -
CONNECTOR HEAD
PLUG
50
Ω
DC to 18 GHz
≥
23 dB, DC to 18 GHz
≤
0.05 x
f(GHz)
dB
≥
5 GΩ
≤
1.5 mΩ
≤
1.0 mΩ
1500 V rms
500 V rms
≥
90 dB up to 1 GHz
06S121-000S3
Mechanical data
Mating cycles
Center contact captivation
Coupling test torque
Recommended torque
≥
500
≥
27 N
1.70 Nm
0.46 Nm to 0.69 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
2002/95/EC (RoHS)
-40°C to +85°C
MIL-STD-202, Method
MIL-STD-202, Method
MIL-STD-202, Method
MIL-STD-202, Method
MIL-STD-202, Method
compliant
107,
101,
204,
213,
106
Condition
Condition
Condition
Condition
B
B
D
I
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
25.8 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Herbert Babinger
Date
02/12/04
Approved
Armin Maiwaelder
Date
25/10/06
Rev.
c00
Engineering change number
06-0670
Name
Straub Eileen
Date
25/10/06
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
