07024138016 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 07024138016

Preview

07024138016: DescriptionBoard Euro Connector, 80 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size159KB，2 Pages; ManufacturerHARTING

Download Datasheet Parametric View All

07024138016 Overview

Board Euro Connector, 80 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

07024138016 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: DIN 41642; IEC 1076-4-100
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	07024138016
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	PRESS FIT
Total number of contacts	80
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

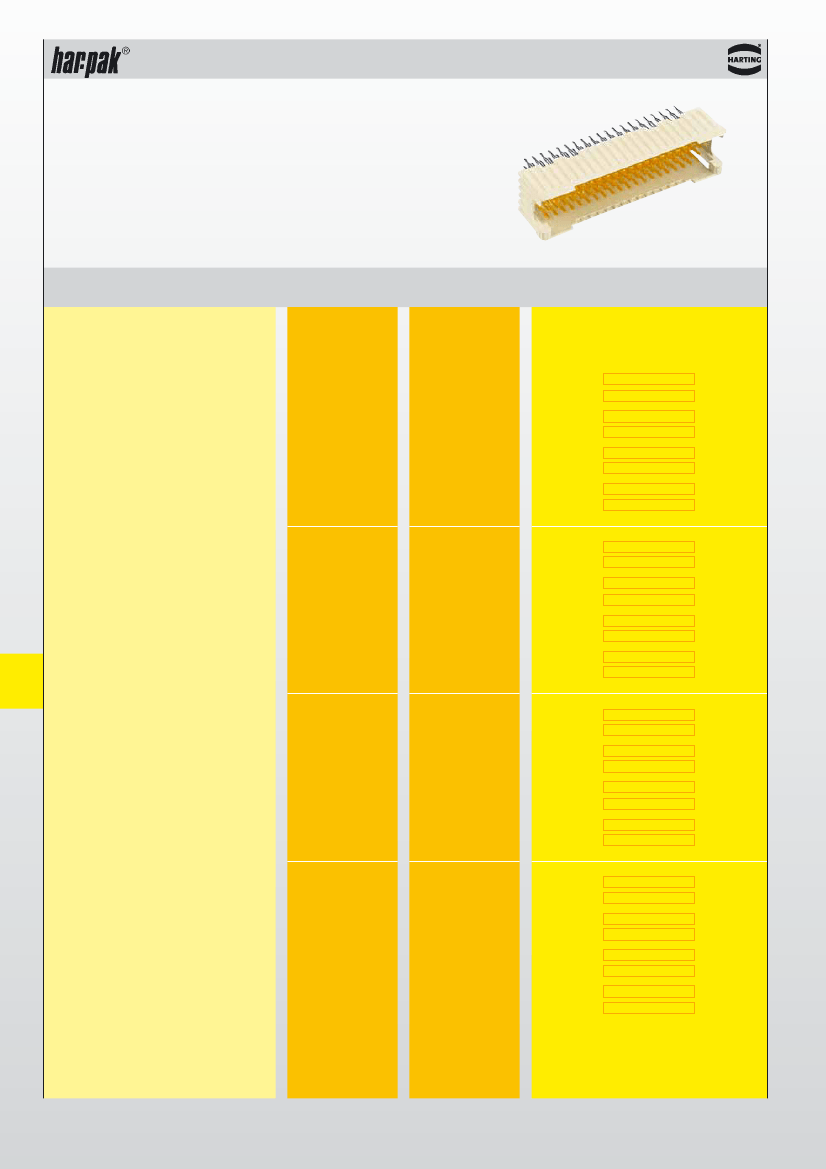

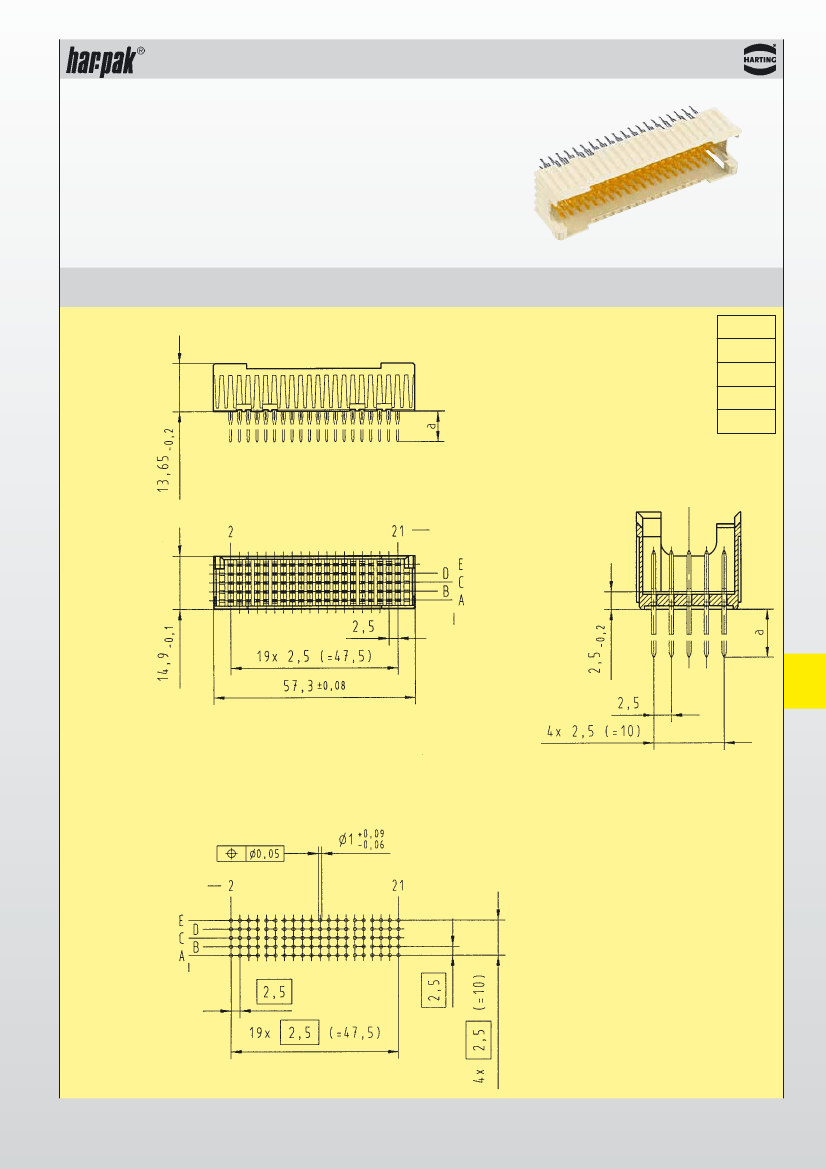

2.3 SU

Male connectors, straight

Identification

Number

of contacts

Contact

arrangement*

Part number

2.3 SU male connector

with press-in termination

6.0 mm

30

50

80

100

7

6

4

1

07 02 711 7016

07 02 711 8016

07 02 611 7016

07 02 611 8016

07 02 411 7017

07 02 411 8017

07 02 111 7018

07 02 111 8018

14.0 mm

30

50

80

100

7

6

4

1

07 02 712 7016

07 02 712 8016

07 02 612 7016

07 02 612 8016

07 02 412 7016

07 02 412 8016

07 02 112 7016

07 02 112 8016

har-pak

17.75 mm

30

50

80

100

7

6

4

1

07 02 713 7016

07 02 713 8016

07 02 613 7016

07 02 613 8016

07 02 413 7016

07 02 413 8016

07 02 113 7016

07 02 113 8016

21.5 mm

30

50

80

100

7

6

4

1

07 02 714 7016

07 02 714 8016

07 02 614 7016

07 02 614 8016

07 02 414 7017

07 02 414 8017

07 02 114 7017

07 02 114 8017

09

.

10

* Contact arrangements see page 09.03

Thin print part numbers: performance level 1

Bold print part numbers: performance level 2
