Module no:0709534 LabelId:0709534 Operator:Phoenix
14:58:24, Donnerstag, 28. Juni 2001
HDFK 95
for horizontal conductor connection
Terminal width 25.0
(IEC)
[mm ]
Connection data
1
)Metal
2
rigid
solid
25-95
flexible
stranded AWG
35-95
4-000
I
[A]
232
U
[V]
1
)
walls 1 (5) to 2.5 (6.5) mm
1000
800
690
1000
Metal walls 2.5 (6.5) to 5 (9) mm
Metal walls 5 (9) to 6 (10) mm
Plastic walls 1 (5) to 6 (10) mm
( ) Values in brackets apply to ...-DP version
H CAg
Description

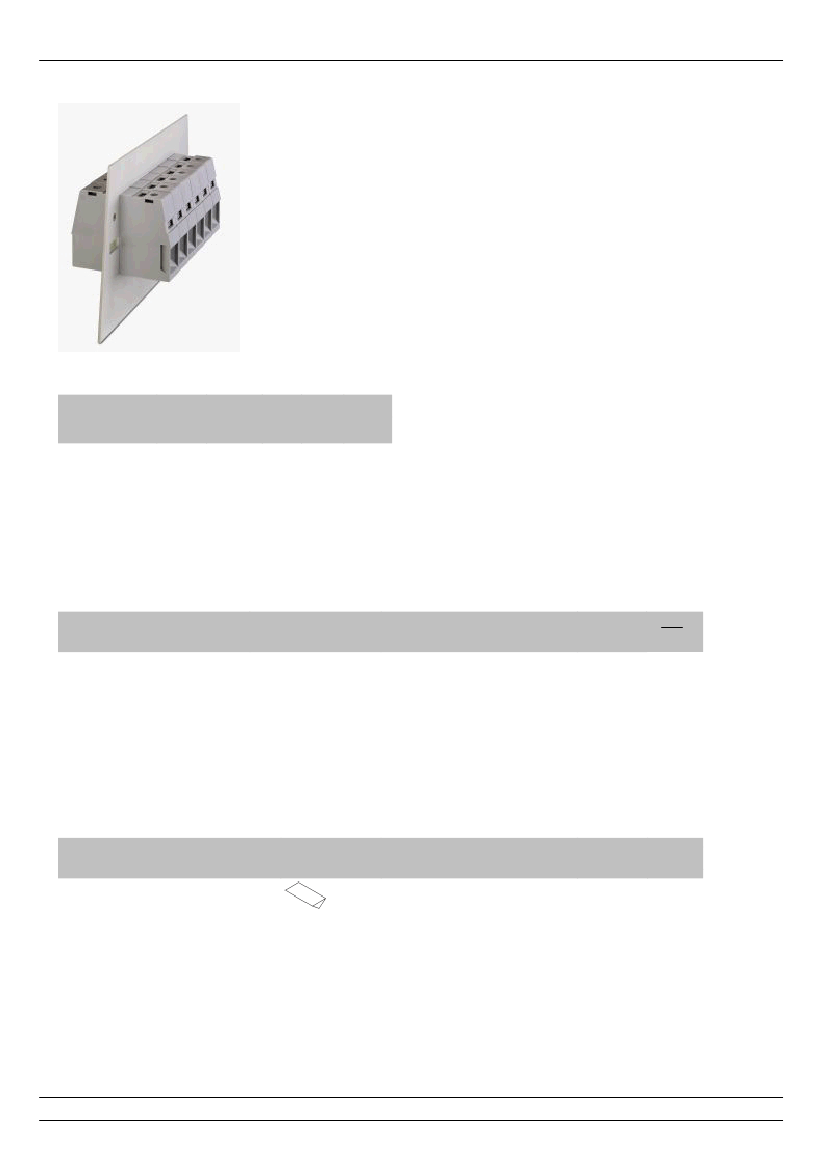

Panel feed-through terminal
block,
with internal and external
screw connection
for 1 - 6 mm thick
housing walls
for 5 - 10 mm thick
housing walls
Panel feed-through terminal
block,
with internal and external
screw connection
for 1 - 6 mm thick
housing walls
for 5 - 10 mm thick
housing walls
external terminal half with screw flange
Accessories
(1)
Insertion profile,
compensates prism-shaped sleeve
base when using flat conductors
(2)
Zack strip,
10-section, white
(3)
Screwdriver
UKH 95 EP
ZB 10
(see
info)
ISS 6
12 01 93 4
1
30 09 23 1
10
Type
HDFK 95
HDFK 95-DP
HDFK 95-F
HDFK 95-DP-F
Order No.
07 09 53 4
07 09 69 9
07 09 64 4
07 09 65 7
Pcs.
Pkt.
10
10
10
10
Phoenix Contact Elektronischer Katalog
Page 1 / 3
Module no:0709534 LabelId:0709534 Operator:Phoenix
Technical data
Dimensions
Technical data in accordance with IEC/VDE
Rated surge voltage / contamination class
Surge voltage category / insulation
material group
Connection capacity
stranded with ferrule without / with plastic
sleeve
[mm ]
2
14:58:24, Donnerstag, 28. Juni 2001
see drawing
[kV] / –
–/–
8/3
III / I
25 - 95 / 25 - 95
Multi-conductor connection (2 conductors with same
cross section)
solid / stranded
stranded with ferrule without plastic sleeve
Stripping length
Internal cylindrical gage
(IEC 947-1:1988)
Terminal sleeve: thread / torque
Insulation material
Inflammability class acc. to UL 94
Temperature indices RTI / Ti
Approval data (UL and CSA)
Nom. voltage / nom. current /
conduc. sizes
UL: [V] / [A] / AWG
CSA: [V] / [A] / AWG
Dimensional drawing
600 / 230 / 4 - 4/0
600 / 200 / 2 - 4/0
– / [Nm]
[mm ]
[mm ]
[mm]
2
2
16 - 35 / 16 - 35
16 - 35
27
B 12
M 8 / 15 - 20
PA
V0
130 / 120
HDFK 95-F

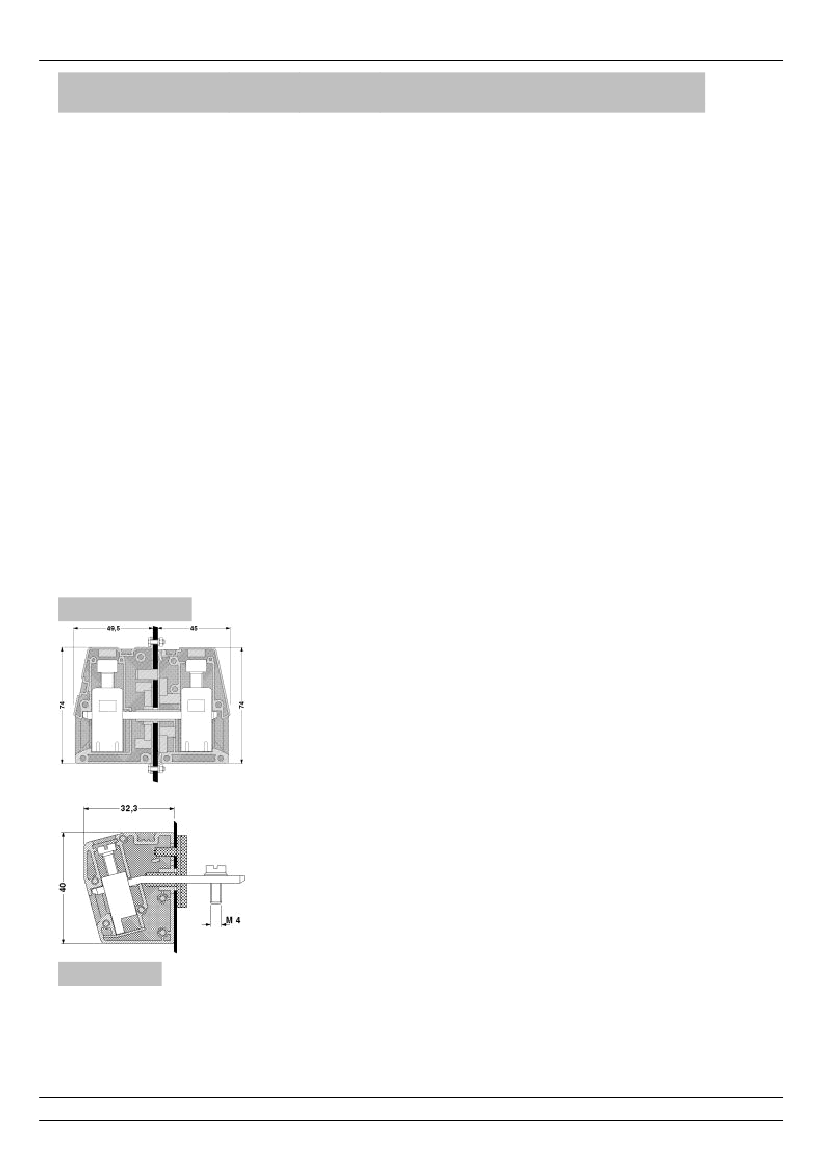

Drilling diagram
HDFK 95
Phoenix Contact Elektronischer Katalog
Page 2 / 3
Module no:0709534 LabelId:0709534 Operator:Phoenix
14:58:24, Donnerstag, 28. Juni 2001
HDFK 95
Phoenix Contact Elektronischer Katalog
Page 3 / 3
